Driver Information System Schematics (Analog Clock - Z75 Only)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

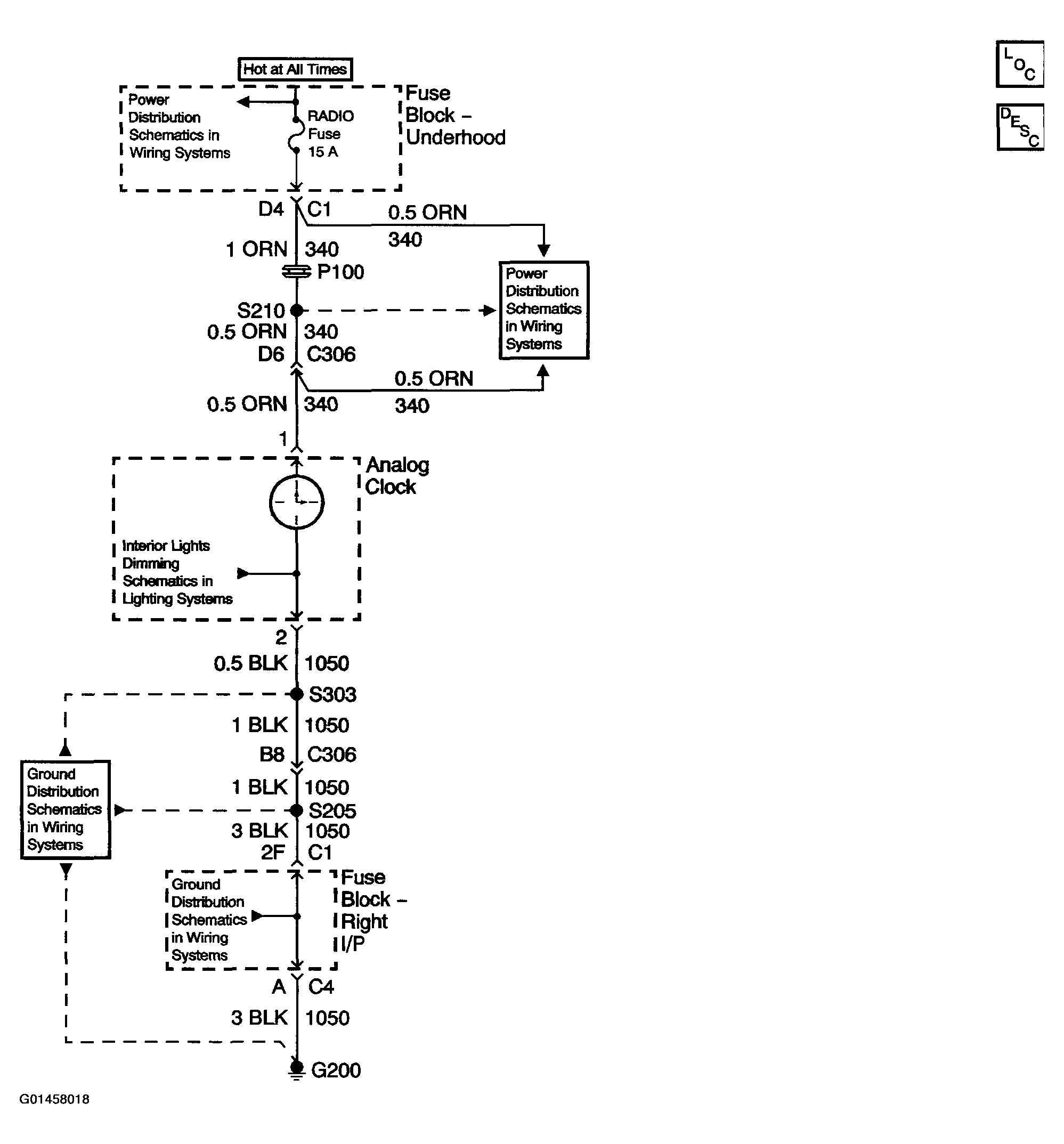

Fig 1: Driver Information System Schematics Diagram - Analog Clock - Z75 Only
G01458018Courtesy of GENERAL MOTORS CORP.
