Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector (1) to the ambient light sensor on the underside of the trim panel.

Fig 1: Connecting Electrical Connector To Ambient Light Sensor
Courtesy of GENERAL MOTORS CORP.
Install the trim panel to the IP assembly.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the trim panel retaining screws.
Tighten

Tighten the trim panel retaining screws to 2 N.m (18 lb in).
Install the windshield pillar garnish moldings. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR in INTERIOR TRIM .

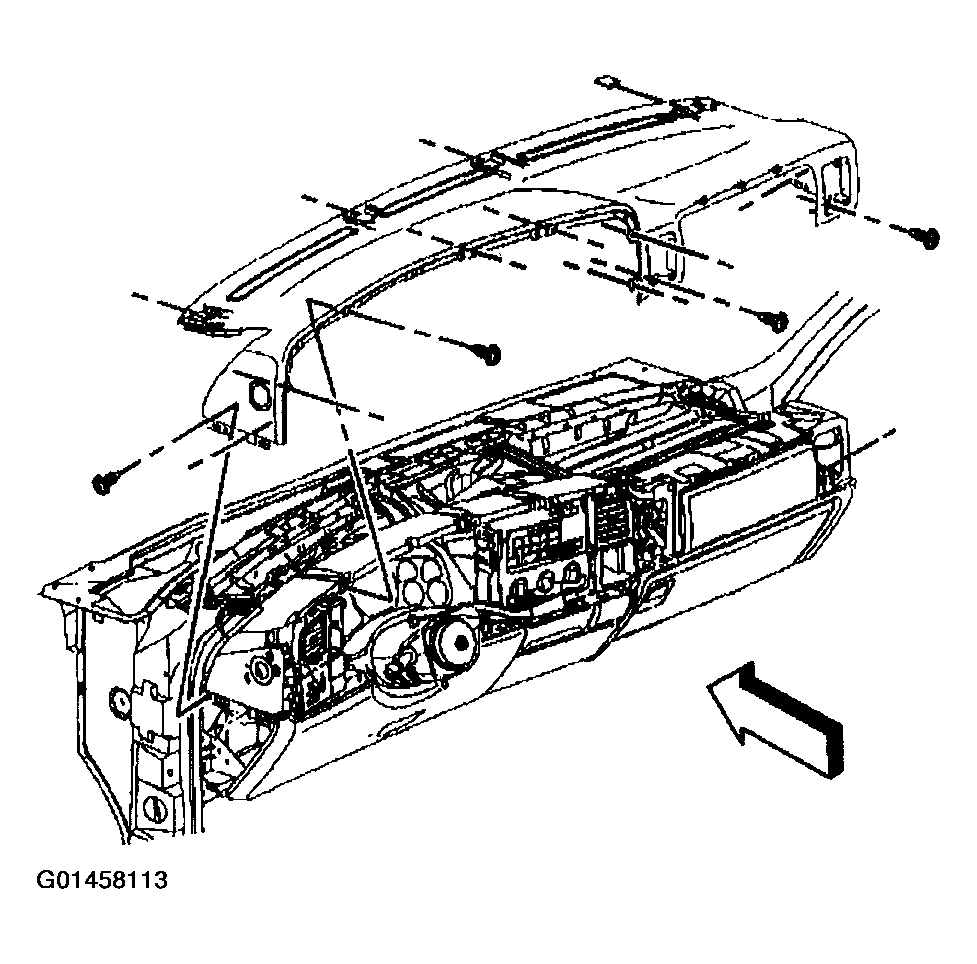

Fig 2: Installing Trim Panel To Instrument Panel Assembly
Courtesy of GENERAL MOTORS CORP.
Align the assist handle with the holes in the IP assembly. Push the handle in order to engage the retaining tabs.
Install the right side air outlets.

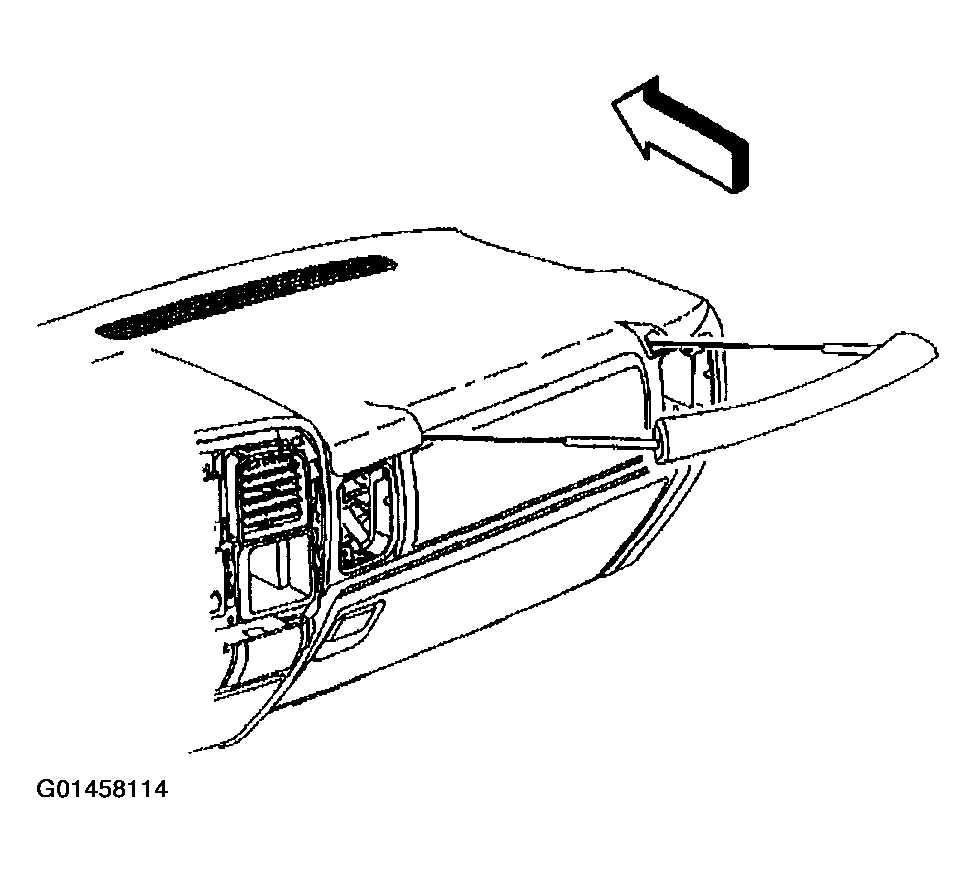

Fig 3: Installing Assist Handle To IP Assembly
Courtesy of GENERAL MOTORS CORP.

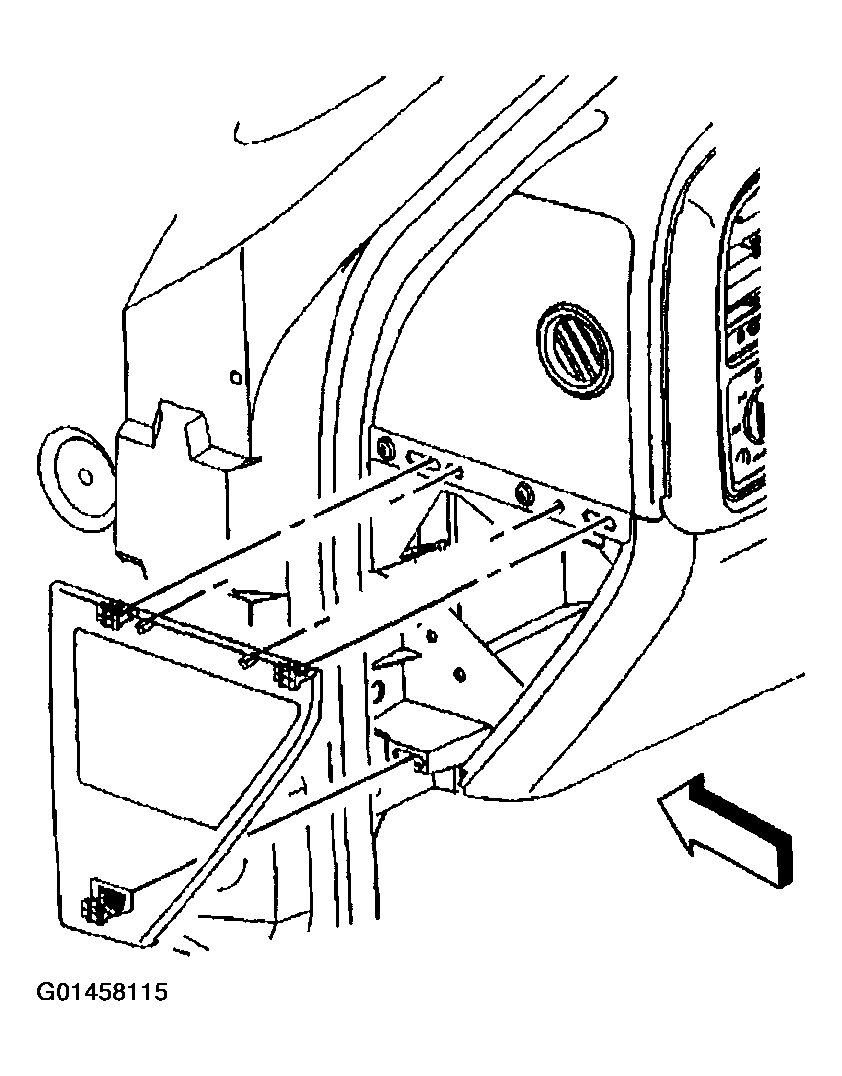

Install the end panels. The left panel is shown, and the right panel is similar.
Install the IP cluster trim plate bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .
Tilt the steering wheel to the normal driving position.
If the transmission is automatic, move the shift lever to the park position.
Disengage the parking brake.

Fig 4: Installing Instrument Panel Cluster Trim Plate Bezel
Courtesy of GENERAL MOTORS CORP.
