Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Snap the top of the knee bolster into the I/P assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the knee bolster screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the I/P cluster trim plate bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .

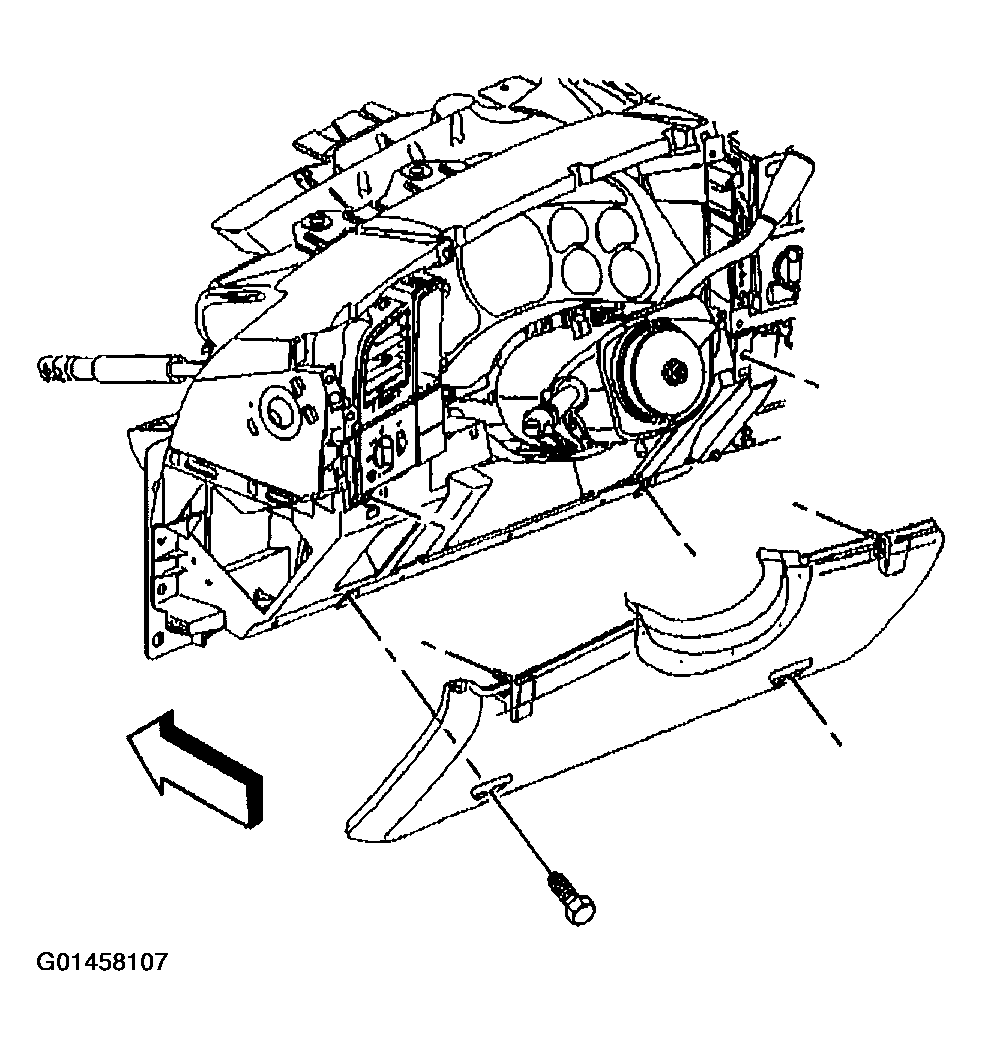

    Fig 1: Installing Top Knee Bolster From Instrument Panel Assembly
    G01458107Courtesy of GENERAL MOTORS CORP.
