Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the insulator (1) to the HVAC module.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retaining bolts.

    Tighten

    Tighten the bolts to 1.6 N.m (14 lb in)

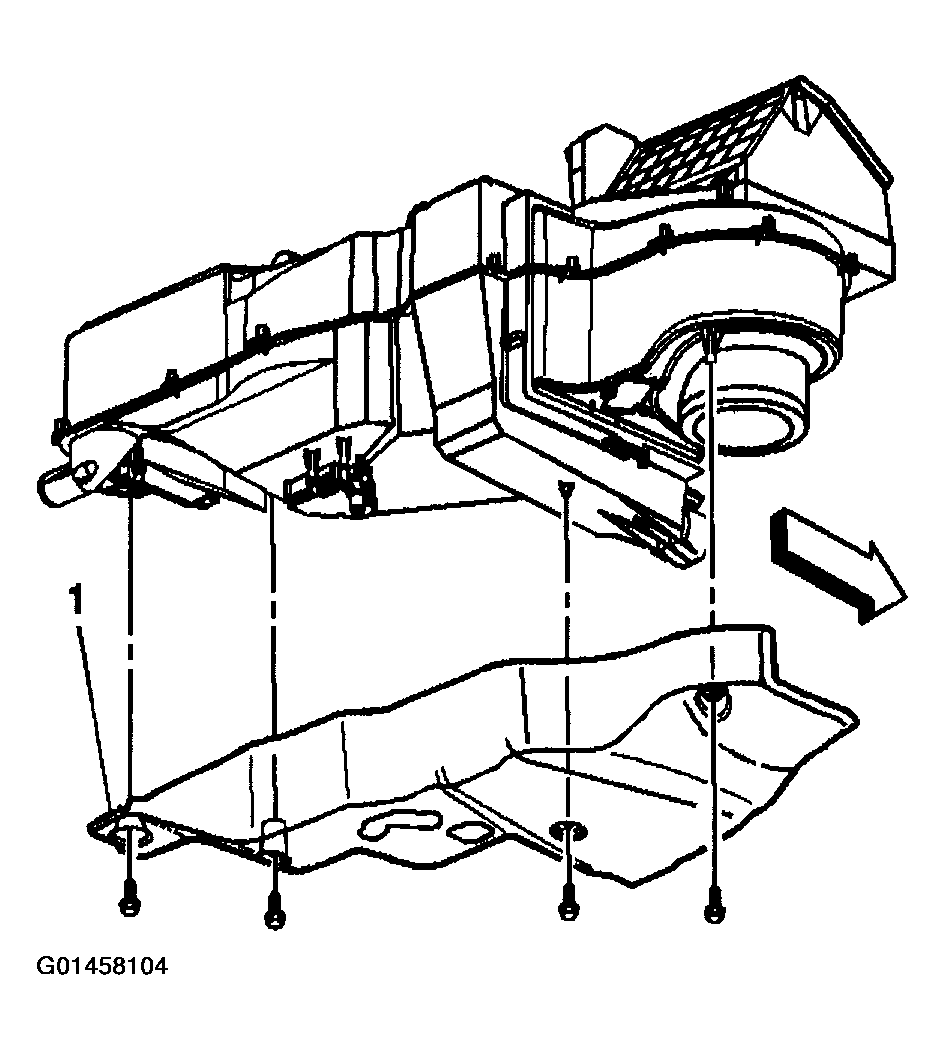

    Fig 1: Installing Insulator To HVAC Module
    G01458104Courtesy of GENERAL MOTORS CORP.
