Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) cluster trim plate bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  2. Remove the screws that retain the I/P cluster to the I/P assembly.

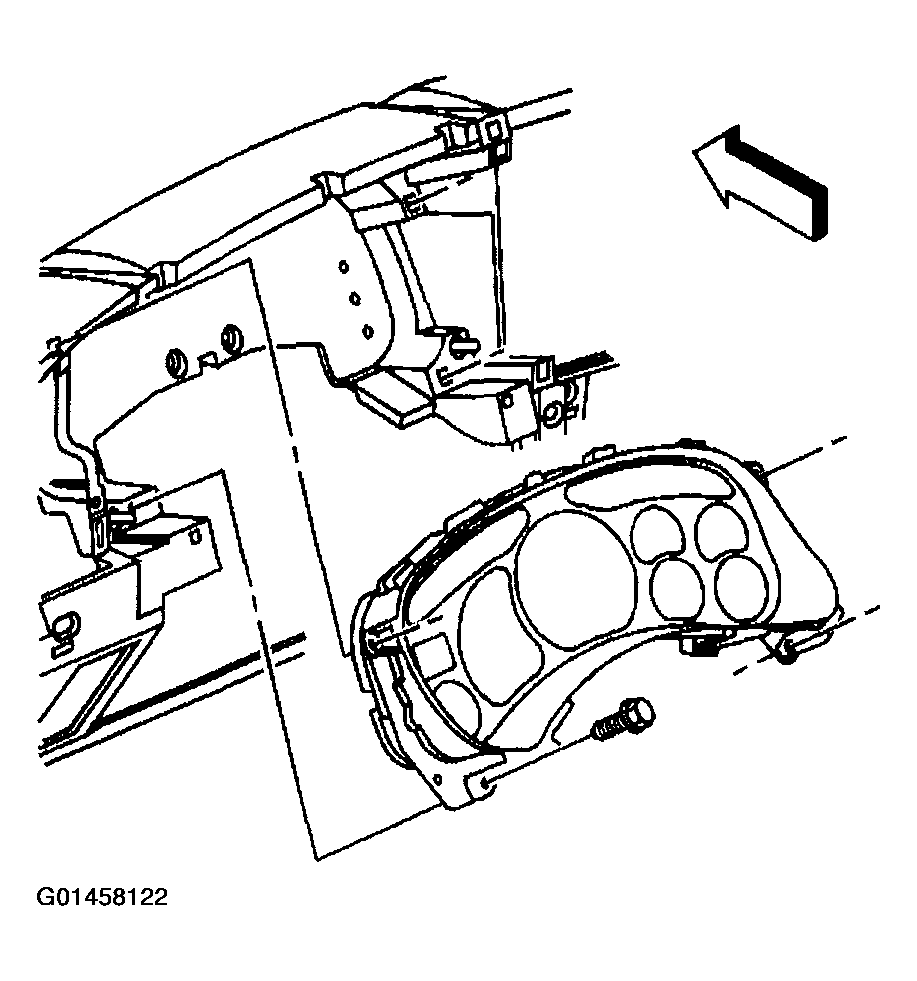

    Fig 1: Removing Screws That Retain Instrument Panel Cluster To Instrument Panel Assembly
    G01458122Courtesy of GENERAL MOTORS CORP.
  3. Remove the I/P cluster (2) from the vehicle by tilting the bottom of the cluster outward.
  4. Disconnect the I/P cluster harness (1) from the I/P cluster.

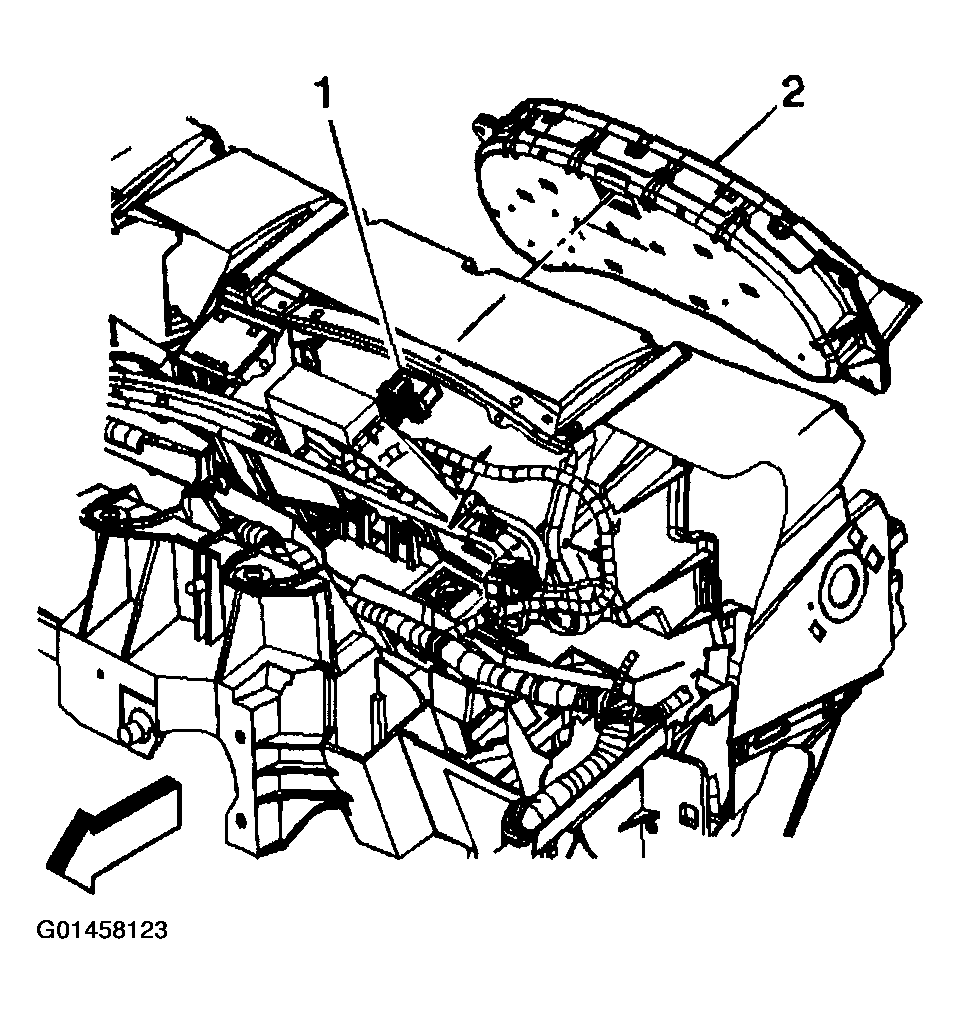

    Fig 2: Removing Instrument Panel Cluster From Vehicle
    G01458123Courtesy of GENERAL MOTORS CORP.
