Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the I/P cluster harness (1) to the I/P cluster (2).

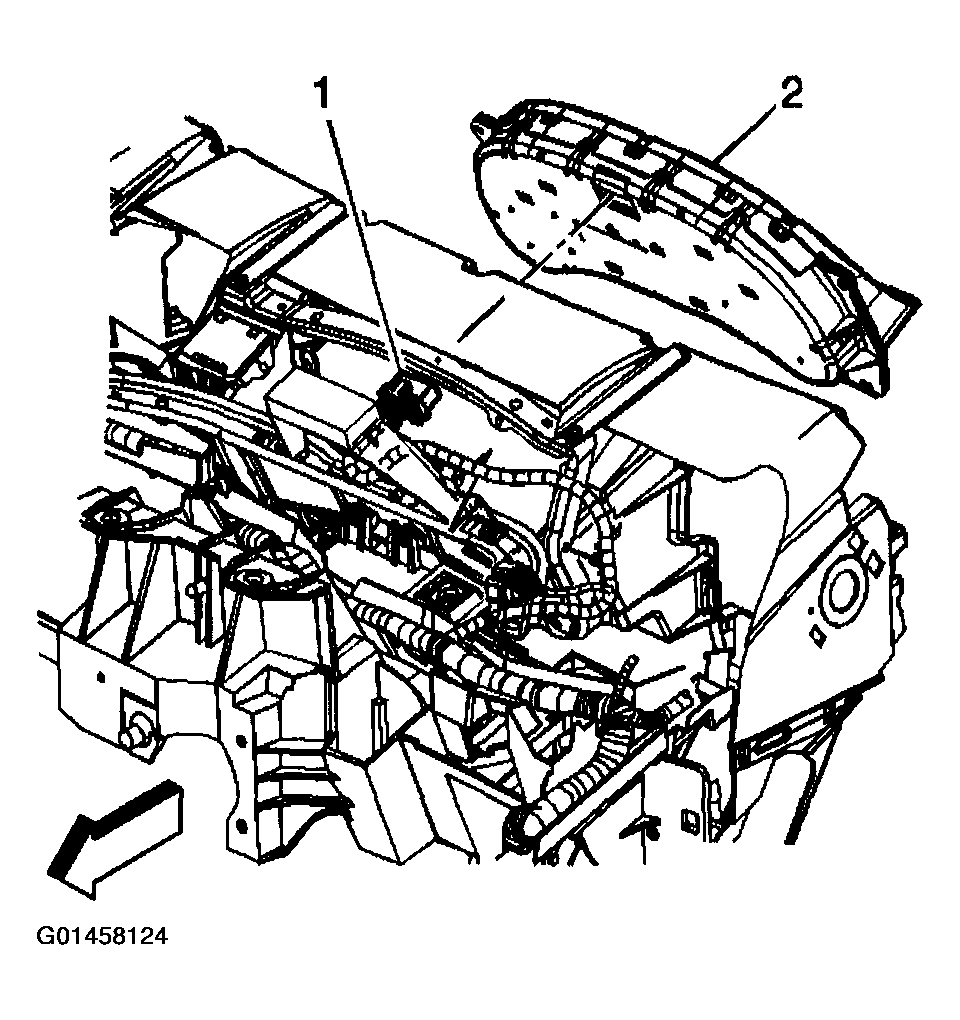

    Fig 1: Installing Instrument Panel Cluster Onto Instrument Panel
    G01458124Courtesy of GENERAL MOTORS CORP.
  2. Install the I/P cluster onto the I/P with the screws. Tilt the top of the cluster into the retainer first to avoid damaging the flexible circuit connections.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws that retain the I/P cluster to the I/P assembly.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the I/P cluster trim plate bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .

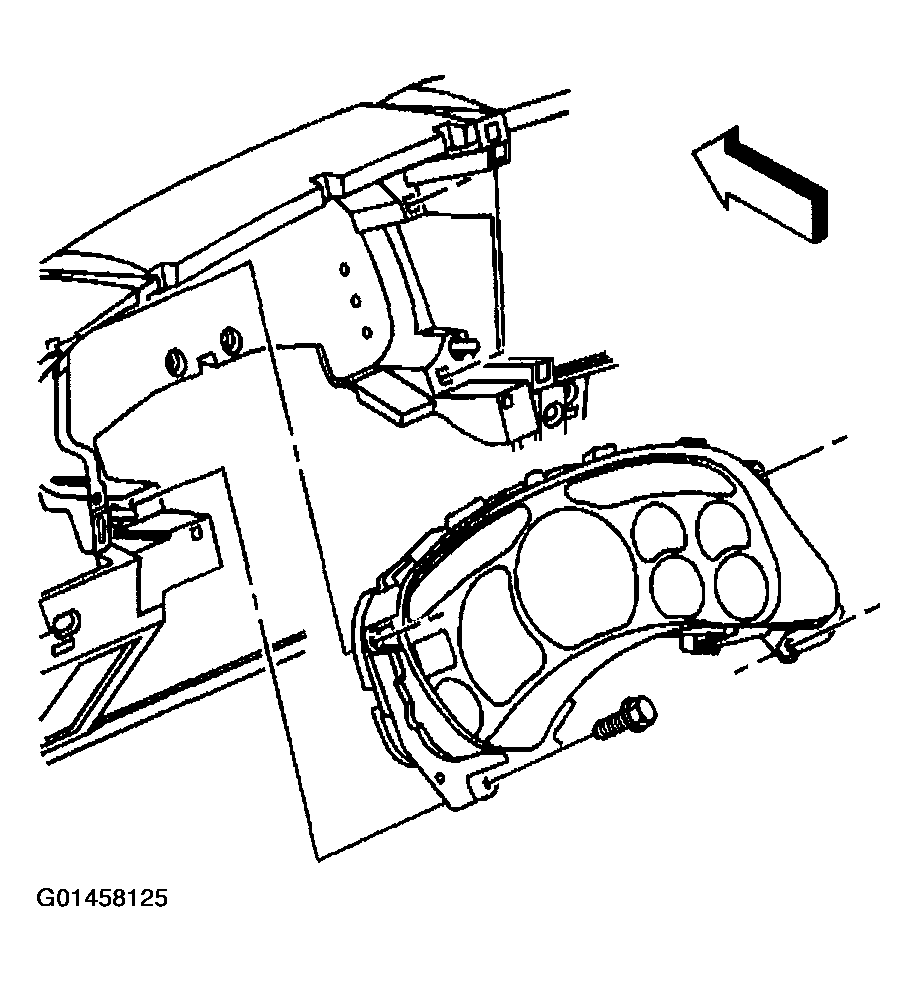

    Fig 2: Installing Screws That Retain Instrument Panel Cluster To Instrument Panel Assembly
    G01458125Courtesy of GENERAL MOTORS CORP.
