Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the I/P harness to the vehicle.
  2. Install the harness grommet to the cowl.
  3. Connect the wire harness to the hood, if equipped with underhood camp.
  4. Connect the electrical harness from the underhood electrical center.
  5. Install the driver's side seat, if equipped with power. Refer to SEAT REPLACEMENT - FRONT BUCKET
  6. Install the driver's side hinge pillar trim panel. Refer to TRIM PANEL REPLACEMENT - HINGE PILLAR in INTERIOR TRIM . .
  7. Install the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT  .

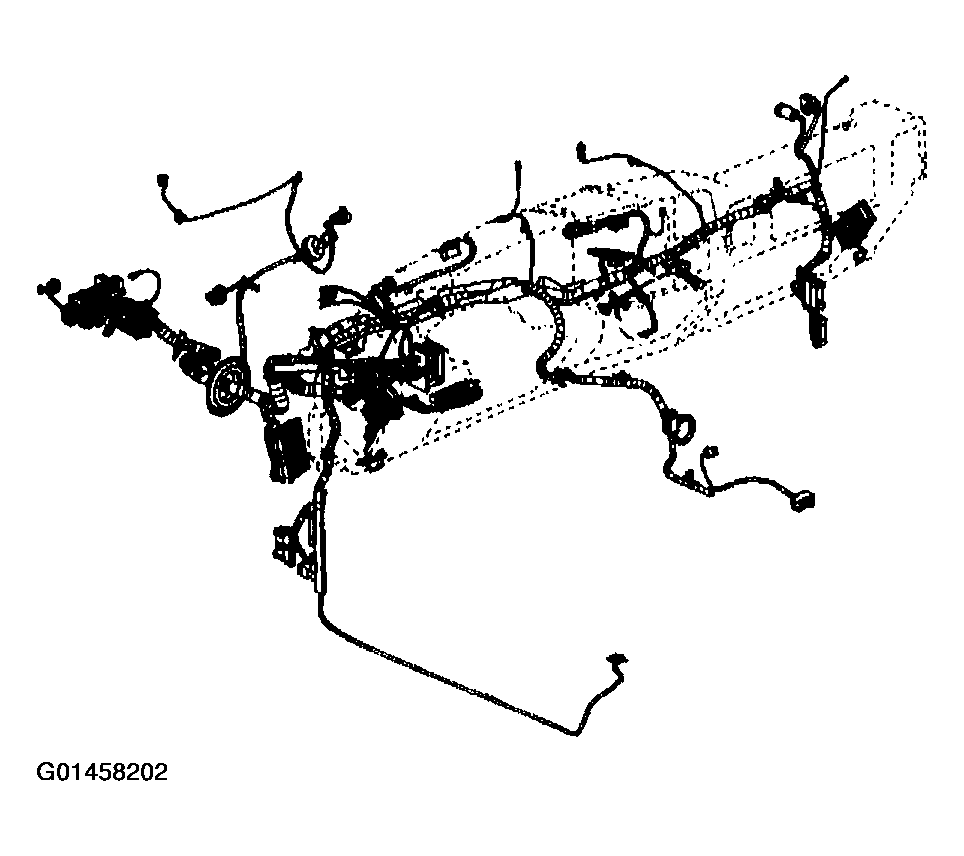

    Fig 1: Installing Instrument Panel Harness To Vehicle
    G01458202Courtesy of GENERAL MOTORS CORP.
