Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove both the passenger side air deflector louvers.
  2. From the air deflector louver opening, press the release tabs on the instrument panel assist handle retainers on both sides.
  3. Pull the assist handle from the instrument panel.

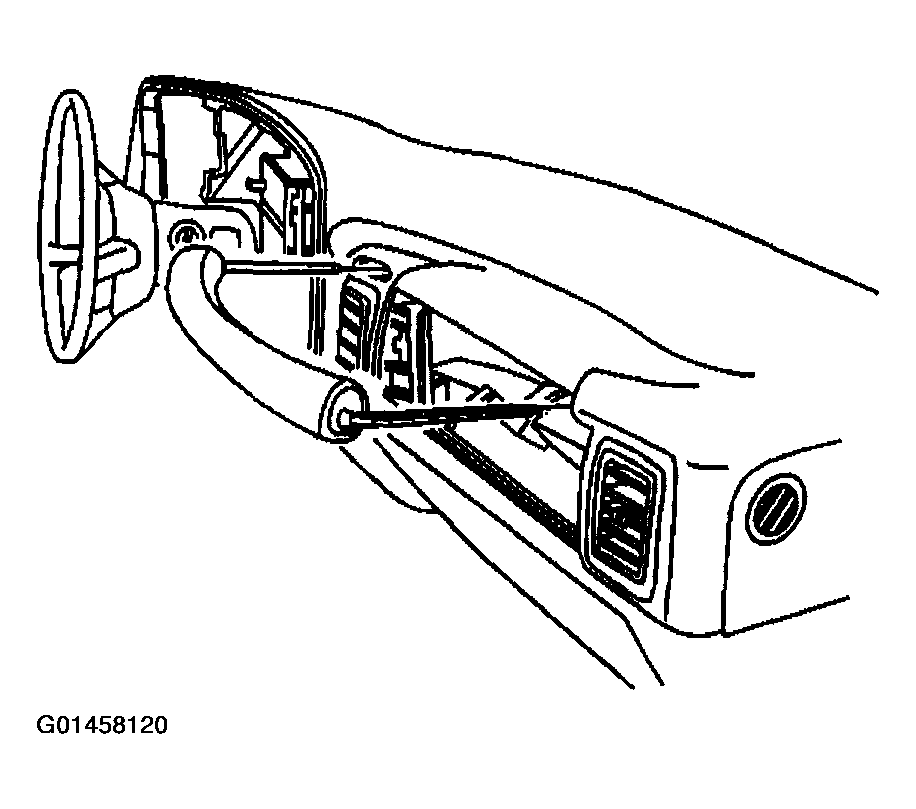

    Fig 1: Pulling Assist Handle From Instrument Panel
    G01458120Courtesy of GENERAL MOTORS CORP.
