Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the I/P assembly to the vehicle.
  2. Install the harness hold down retainers to the I/P assembly.
  3. Install the I/P assembly retaining bolts (3) and nuts (4).

    Ensure the wire harness is routed to all of the openings.

  4. Install the harness to the I/P. Refer to INSTRUMENT PANEL ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT - LEFT and INSTRUMENT PANEL ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT - RIGHT
  5. Install both front window air duct to the I/P assembly.
  6. Install the I/P cluster assembly. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT  .
  7. Install the park brake release lever to the I/P. Refer to PARK BRAKE RELEASE HANDLE ASSEMBLY in Park Brake.

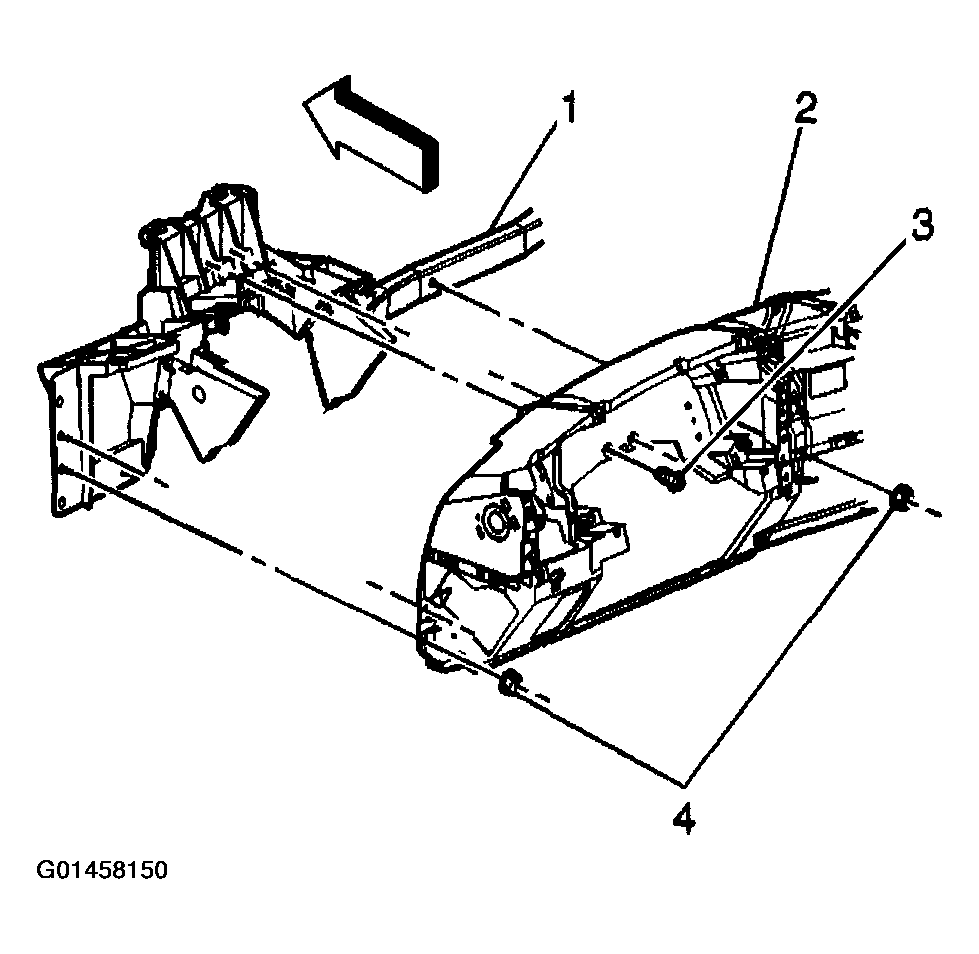

    Fig 1: Installing Instrument Panel Assembly
    G01458150Courtesy of GENERAL MOTORS CORP.
  8. Install the data link connector to the I/P. Refer to DATA LINK CONNECTOR REPLACEMENT in Data Link Communications.
  9. Install the remote control door lock receiver module, if equipped. Refer to REMOTE CONTROL DOOR LOCK RECEIVER REPLACEMENT in Keyless Entry.
  10. Install the CIM, if equipped. Refer to COMMUNICATION INTERFACE MODULE REPLACEMENT in Cellular Communication.
  11. Install the steering column. Refer to STEERING COLUMN REPLACEMENT in Steering Wheel and Column.
  12. Install the left air louver housing. Refer to DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - LEFT in HEATING, VENTILATION AND AIR CONDITIONING .
  13. Install the accessory switch housing. Refer to ACCESSORY SWITCH REPLACEMENT  .
  14. Install the HVAC control. Refer to HVAC CONTROL MODULE REPLACEMENT in HVAC SYSTEMS - AUTOMATIC or HVAC CONTROL MODULE REPLACEMENT in HVAC SYSTEMS - MANUAL .
  15. Install the radio. Refer to RADIO REPLACEMENT in Entertainment.
  16. Install the passenger side airbag module. Refer to REMOVAL & INSTALLATION (PASSENGER-SIDE) in SIR.
  17. Install the lower trim panel. Refer to INSTRUMENT PANEL (I/P) TRIM PANEL REPLACEMENT - LOWER  .
  18. Install the driver side knee bolster. Refer to KNEE BOLSTER REPLACEMENT  .
  19. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  20. Install the center console, if equipped. Refer to CONSOLE REPLACEMENT (WITH CONSOLE MOUNTING BRACKET)  or CONSOLE REPLACEMENT (W/O CONSOLE MOUNTING BRACKET)  .
  21. Install the I/P trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  .
