Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important:  This procedure calls for the replacement of incandescent bulbs only. The light emitting diodes (LEDs) are not replaceable individually. If LED replacement is needed, send the cluster to an AC Delco Service Center. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT  .

  1. Install the bulb to the base.
  2. Install the bulb into the cluster by inserting the bulb and base assembly and turning the bulb 1/2 turn clockwise.

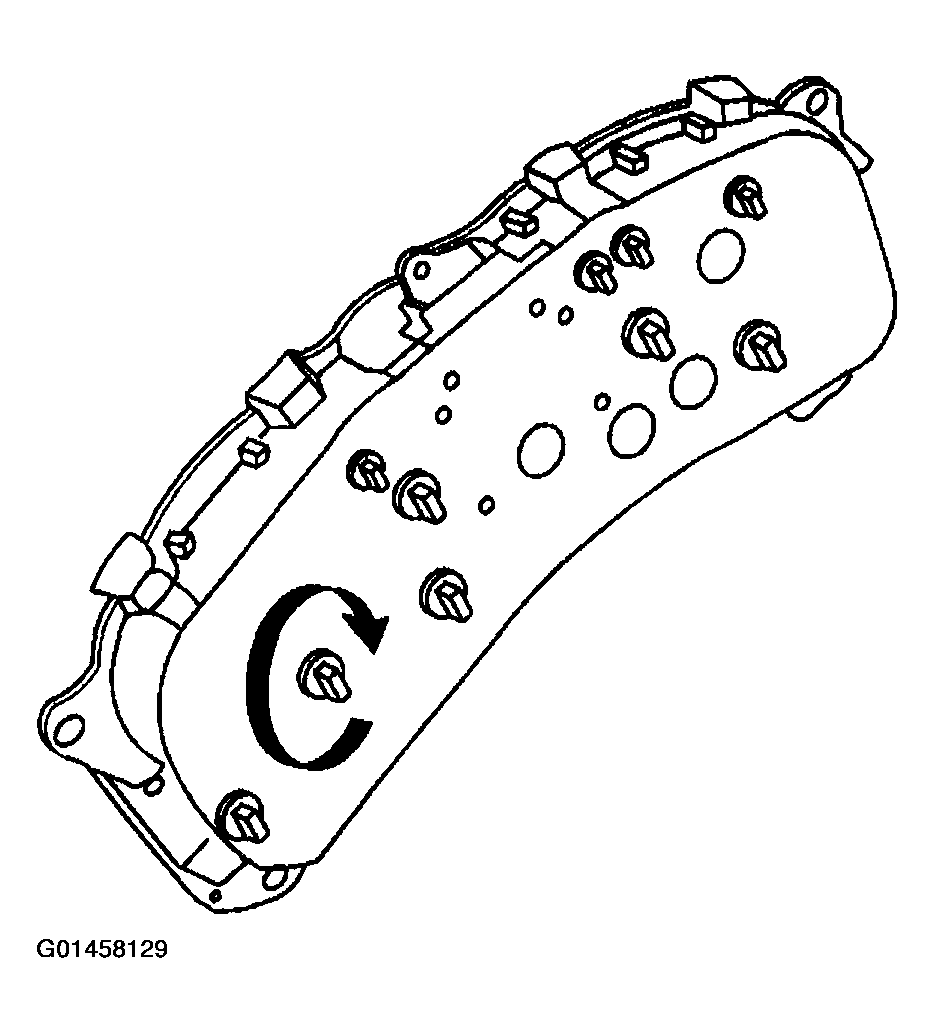

    Fig 1: Installing Bulb Into Instrument Panel Cluster
    G01458129Courtesy of GENERAL MOTORS CORP.
  3. Carefully snap the rear cover plate to the IP cluster.
  4. Install the IP cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT  .

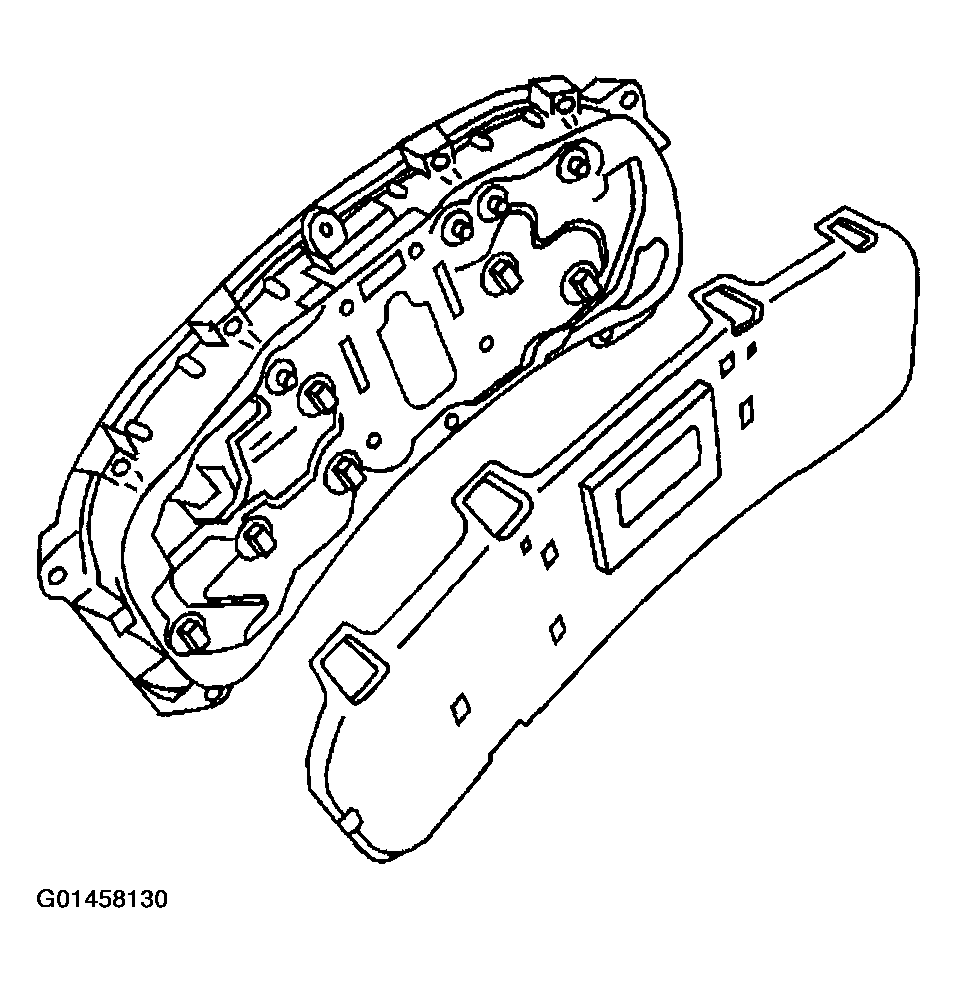

    Fig 2: Installing Instrument Panel Cluster
    G01458130Courtesy of GENERAL MOTORS CORP.
