Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the I/P compartment door.
  2. Drill out the 2 rivets (2).
  3. Remove I/P storage compartment door retaining screws (1) from the instrument panel.
  4. Remove the I/P compartment door.

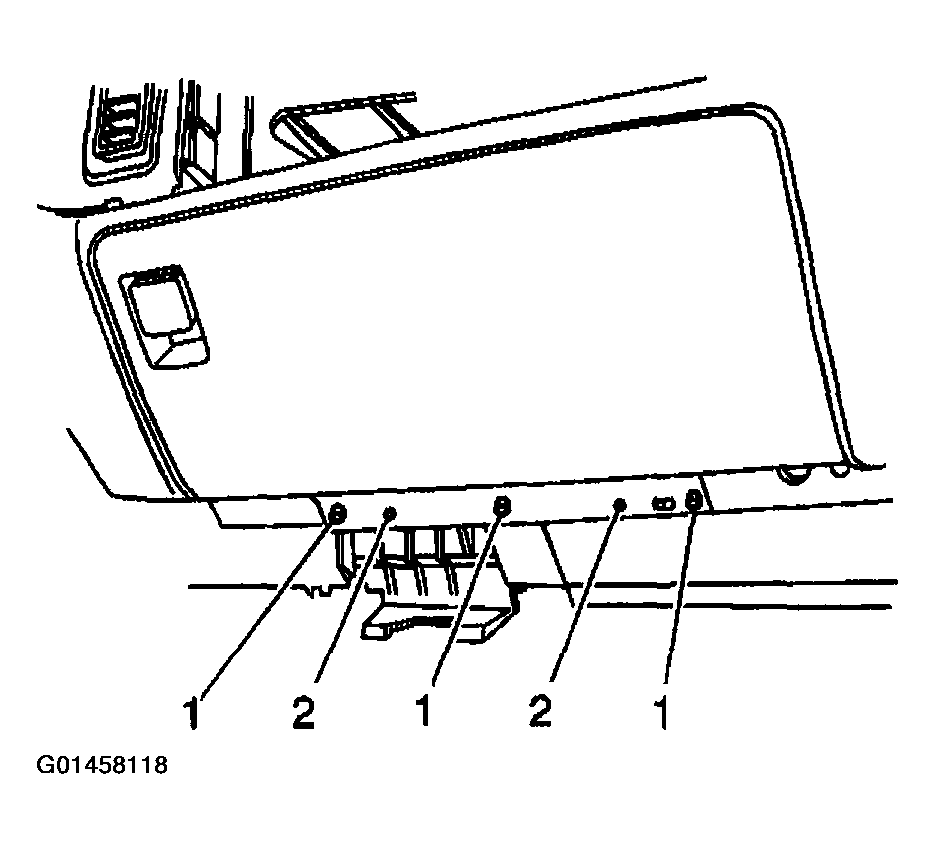

    Fig 1: Removing Instrument Panel Compartment Door
    G01458118Courtesy of GENERAL MOTORS CORP.
