Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the console door to the console.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the four retaining screws.

    Tighten

    Tighten the four retaining screws to 1.6 N.m (14 lb in).

  3. Close the lid and ensure the lid is properly aligned.

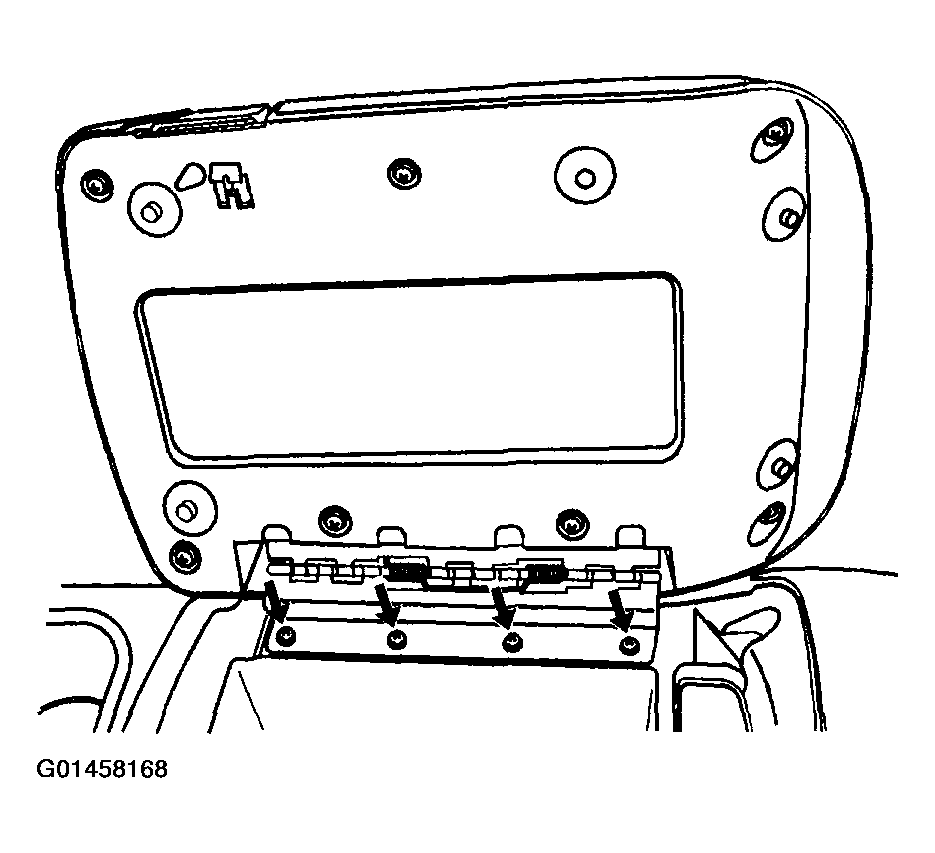

    Fig 1: Installing Console Door To Console
    G01458168Courtesy of GENERAL MOTORS CORP.
