Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console compartment door. Refer to DOOR REPLACEMENT - CONSOLE COMPARTMENT  .
  2. Remove the bin retaining screws.
  3. Remove the 4 lower bolts.
  4. Remove the storage bin from the console.

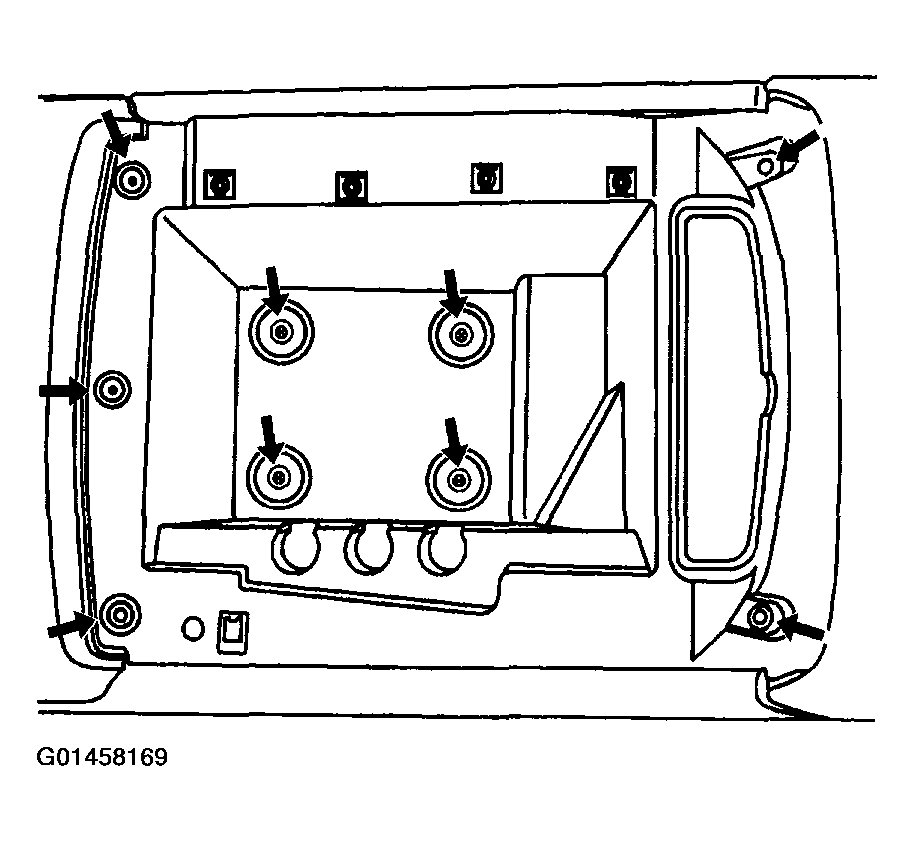

    Fig 1: Removing Storage Bin From Console - Expect Pro
    G01458169Courtesy of GENERAL MOTORS CORP.
