Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the storage bin in the console.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bin retaining screws.

    Tighten

    Tighten the retaining screws to 1.6 N.m (14 lb in).

  3. Install the 4 lower bolts

    Tighten

    Tighten the 4 bolts to 3.5 N.m (31 lb in).

  4. Install the console compartment door. Refer to DOOR REPLACEMENT - CONSOLE COMPARTMENT  .

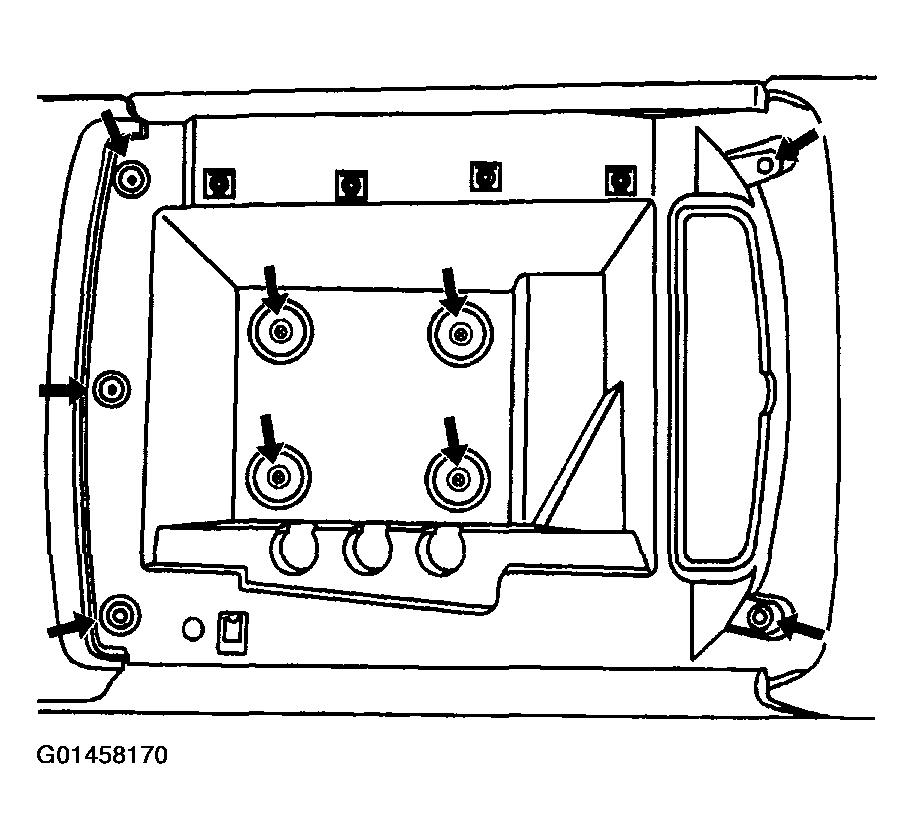

    Fig 1: Installing Storage Bin In Console - Expect Pro
    G01458170Courtesy of GENERAL MOTORS CORP.
