Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat audio control to the console, if equipped.
  2. Install the console in the vehicle.
  3. Connect the wire connectors.
  4. Move the console forward in order to install the retaining screws.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the 2 screws (1).

    Tighten

    Tighten the screws to 4 N.m (35 lb in).

  6. Install the cupholder to the console. Refer to CUPHOLDER REPLACEMENT (NON-LUXURY)  or CUPHOLDER REPLACEMENT (LUXURY)  or CUPHOLDER REPLACEMENT (REAR)  .
  7. Install the upper console bezel. Refer to BEZEL REPLACEMENT - FLOOR CONSOLE (NON-LUXURY UPPER)  or BEZEL REPLACEMENT - FLOOR CONSOLE (LUXURY UPPER)  or BEZEL REPLACEMENT - FLOOR CONSOLE (NON-LUX LOWER)  .
  8. Install the radio amp fuse, if removed.
  9. Install both front seats. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.

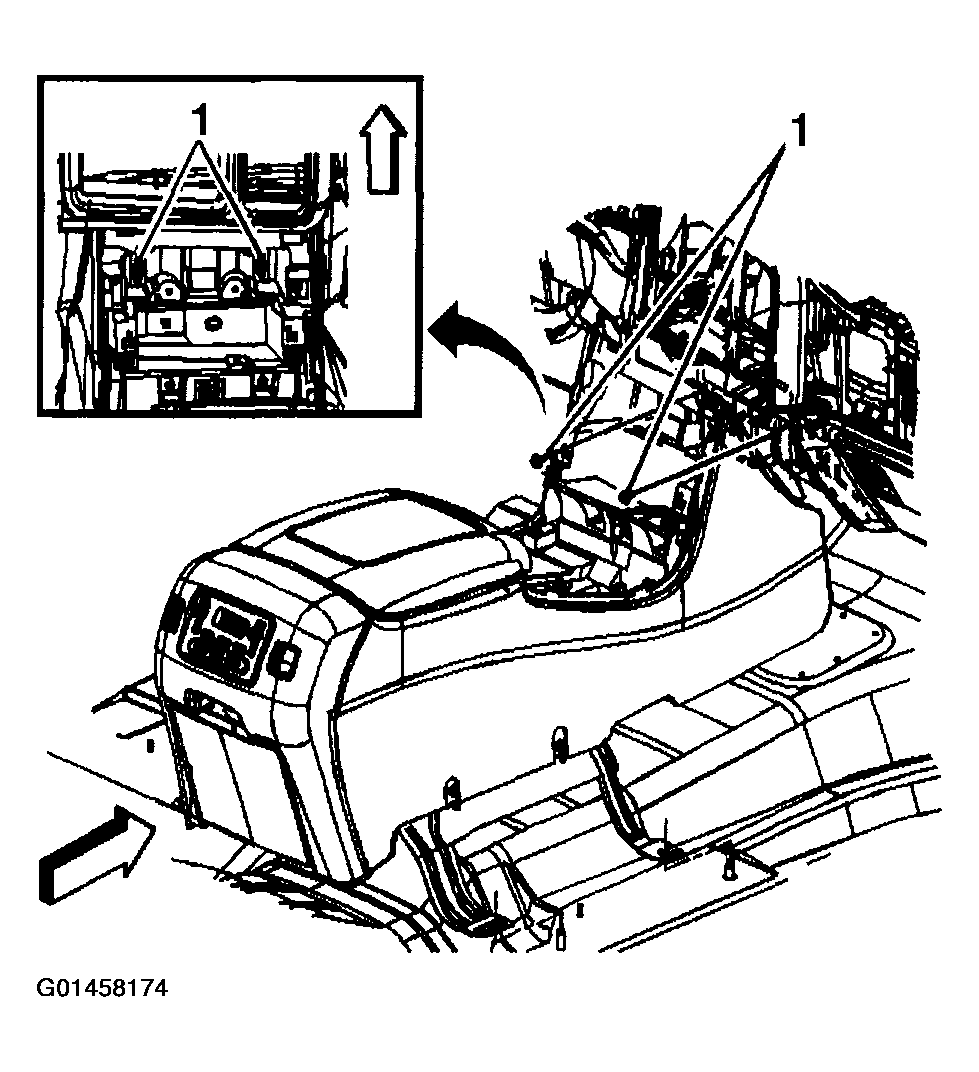

    Fig 1: Installing Console - With Console Mounting Bracket
    G01458174Courtesy of GENERAL MOTORS CORP.
