Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the floor console.
  2. Connect the floor console electrical connector.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws (1) that retain the upper console bracket to the lower console bracket.

    Tighten

    Tighten the retaining screws to 2 N.m (18 lb in).

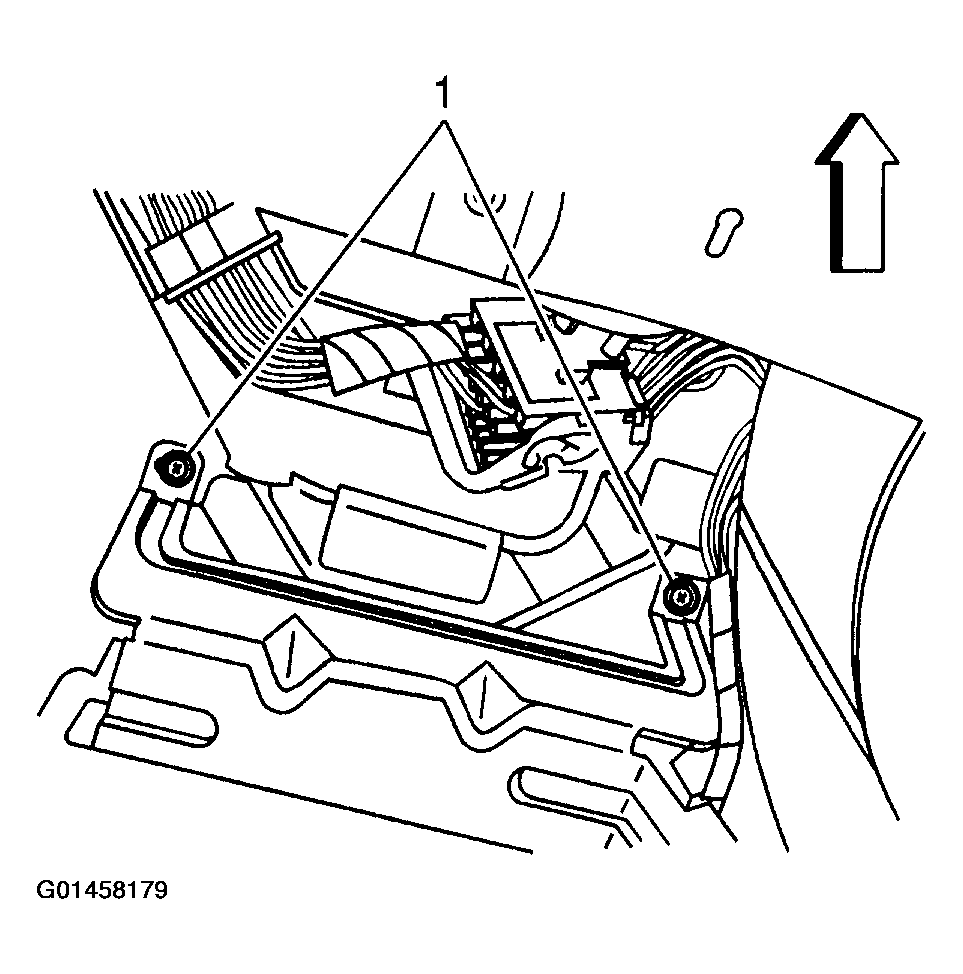

    Fig 1: Installing Upper Console Bracket To Lower Console Bracket - Without Console Mounting Bracket
    G01458179Courtesy of GENERAL MOTORS CORP.
  4. Install the bolts (1) retaining the console to the I/P.

    Tighten

    Tighten the bolts to 4 N.m (35 lb in).

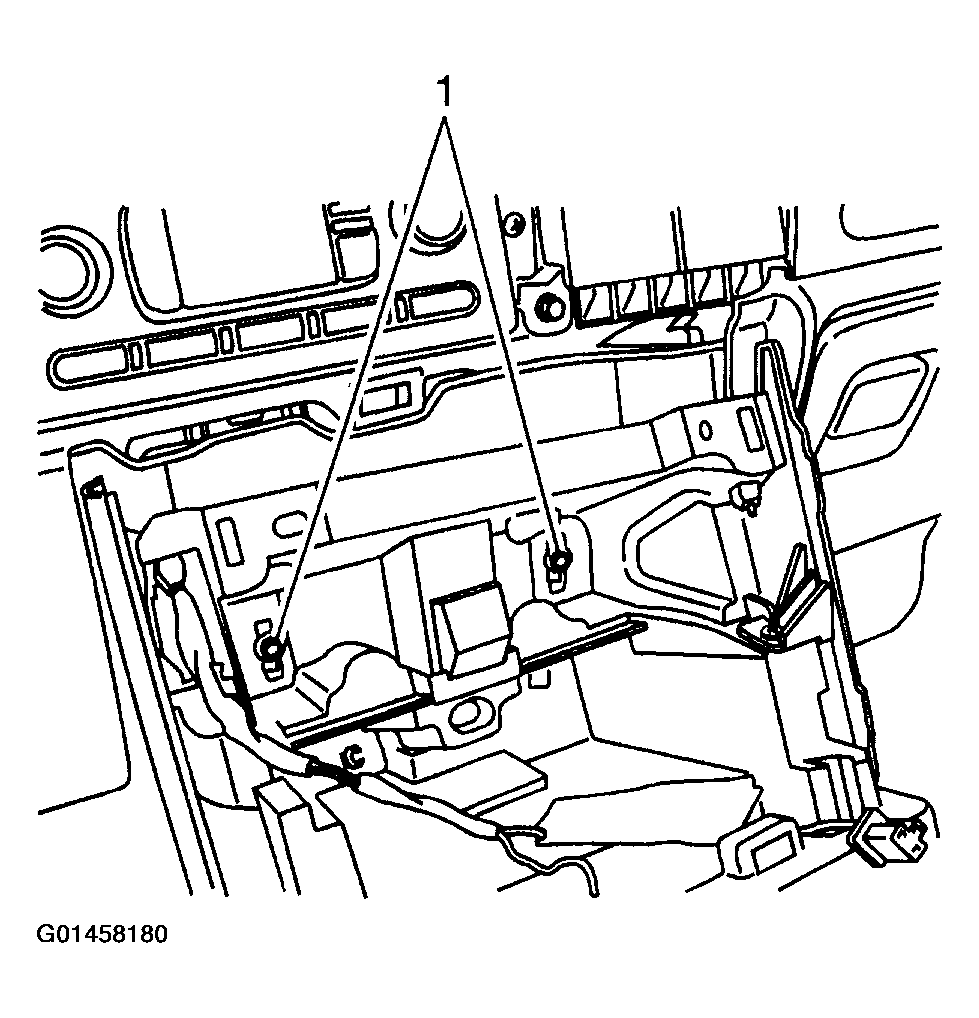

    Fig 2: Installing Bolts Retaining Console To Instrument Panel - Without Console Mounting Bracket
    G01458180Courtesy of GENERAL MOTORS CORP.
  5. Install both front console side panel screws (1).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

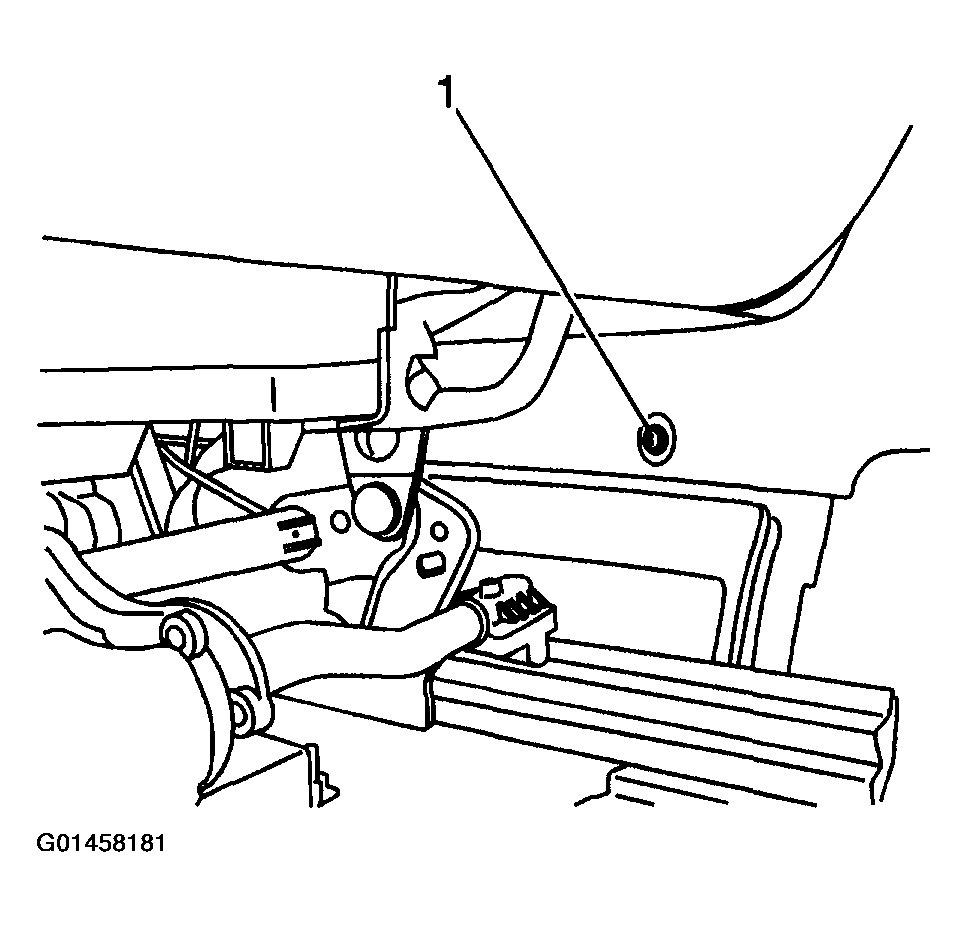

    Fig 3: Installing Front Console Side Panel Screws - Without Console Mounting Bracket
    G01458181Courtesy of GENERAL MOTORS CORP.
  6. Move both front seats to the fully forward.
  7. Install both rear console side panel screws (2).

    Tighten

    Tighten the retaining screws to 2 N.m (18 lb in).

  8. Reposition the inboard seat track trim (1).
  9. Connect the floor console electrical connector.
  10. Install the center console end panel. Refer to CENTER CONSOLE END PANEL REPLACEMENT  .
  11. Install the console storage bin. Refer to CONSOLE STORAGE BIN REPLACEMENT (EXPECT PRO)  .
  12. Install the cupholder to the console. Refer to CUPHOLDER REPLACEMENT (NON-LUXURY)  or CUPHOLDER REPLACEMENT (LUXURY)  or CUPHOLDER REPLACEMENT (REAR)  .
  13. Install the upper console bezel. Refer to BEZEL REPLACEMENT - FLOOR CONSOLE (NON-LUXURY UPPER)  or BEZEL REPLACEMENT - FLOOR CONSOLE (LUXURY UPPER)  or BEZEL REPLACEMENT - FLOOR CONSOLE (NON-LUX LOWER)  .
  14. Install the radio amp fuse.

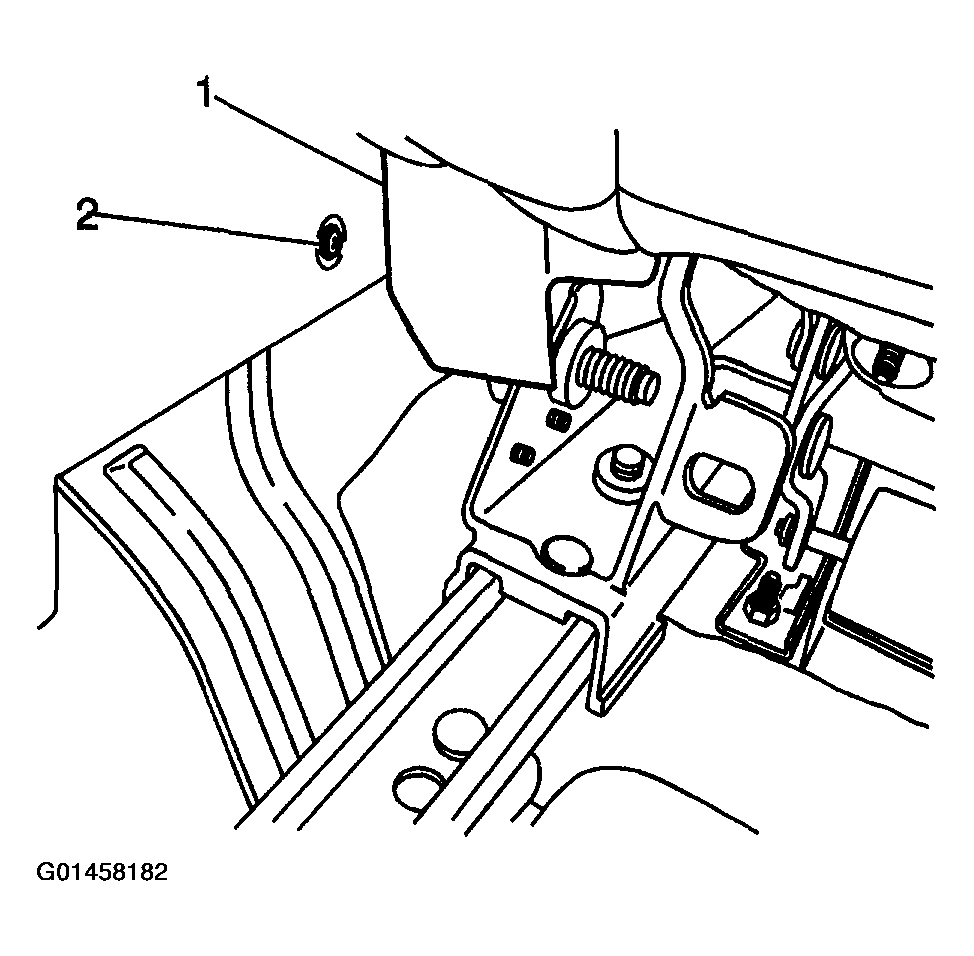

    Fig 4: Installing Rear Console Side Panel Screws - Without Console Mounting Bracket
    G01458182Courtesy of GENERAL MOTORS CORP.
