Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console upper bezel. Refer to BEZEL REPLACEMENT - FLOOR CONSOLE (NON-LUXURY UPPER)  or BEZEL REPLACEMENT - FLOOR CONSOLE (LUXURY UPPER)  or BEZEL REPLACEMENT - FLOOR CONSOLE (NON-LUX LOWER)  .
  2. From the back of the bezel remove the retaining screws.
  3. Remove the clock from the bezel.

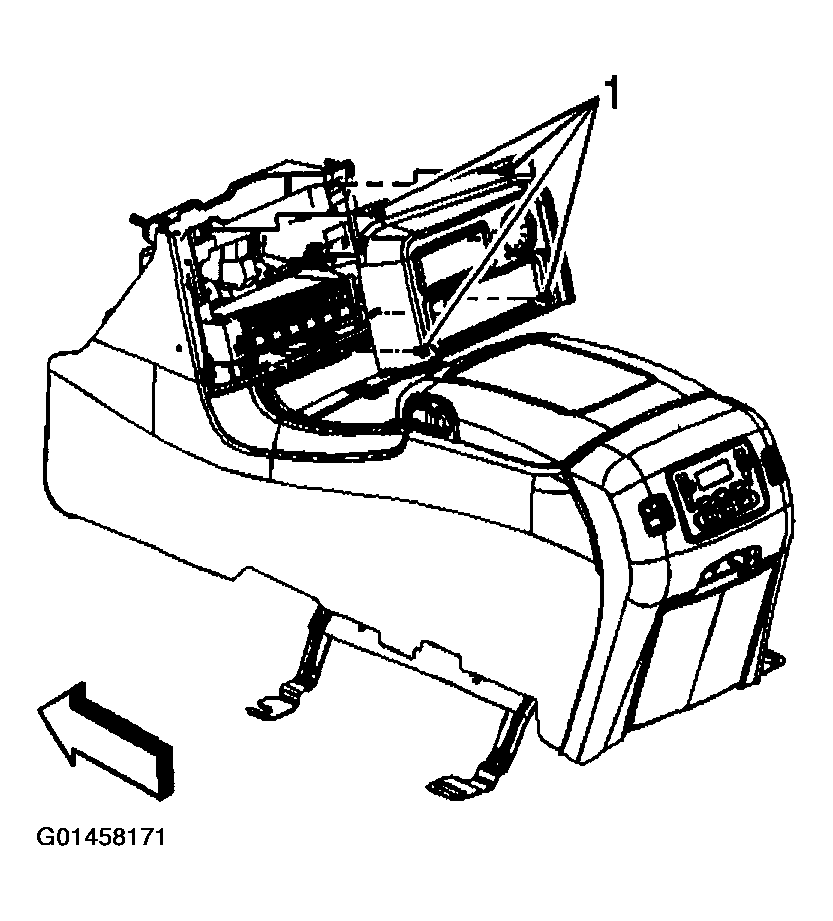

    Fig 1: Removing Clock From Bezel - Console
    G01458171Courtesy of GENERAL MOTORS CORP.
