Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the clock to the bezel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retaining screws.

    Tighten

    Tighten the retaining screws to 2 N.m (17 lb in).

  3. Install the bezel to the console. Refer to BEZEL REPLACEMENT - FLOOR CONSOLE (NON-LUXURY UPPER)  or BEZEL REPLACEMENT - FLOOR CONSOLE (LUXURY UPPER)  or BEZEL REPLACEMENT - FLOOR CONSOLE (NON-LUX LOWER)  .

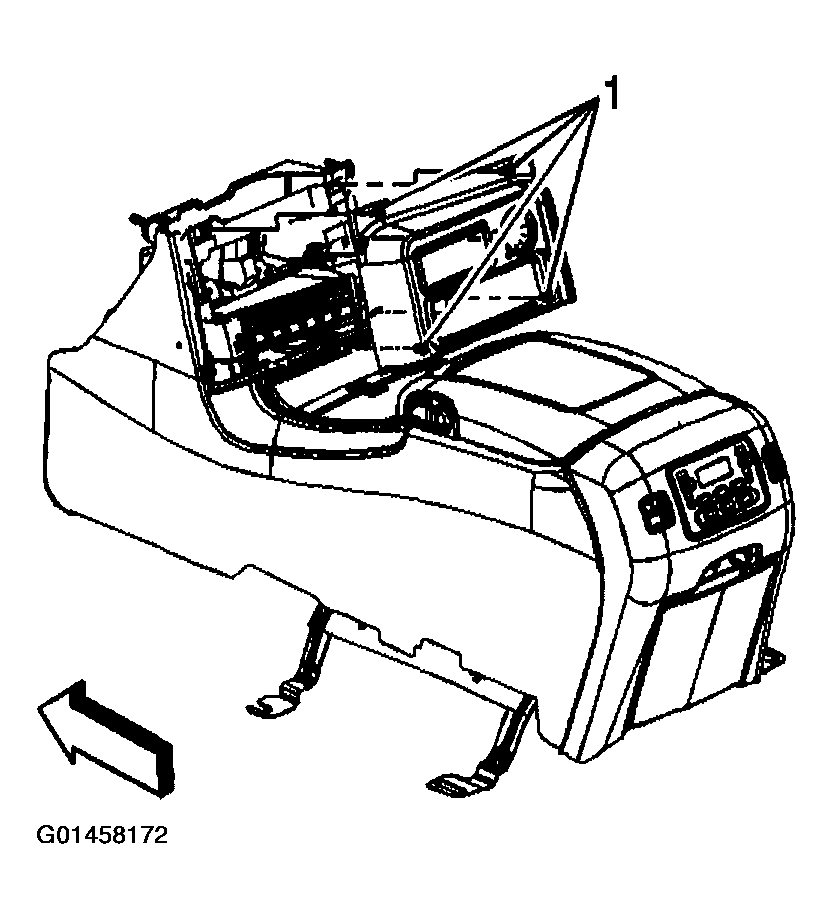

    Fig 1: Installing Clock To Bezel - Console
    G01458172Courtesy of GENERAL MOTORS CORP.
