Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the parking brake to prevent the vehicle from moving.
  2. If equipped with an automatic transmission, move the shift lever all the way down to last gear.
  3. Tilt the steering wheel to the full down position.
  4. Pull gently rearward on the corners of the bezel from the instrument panel (IP) assembly.
  5. Remove the bezel.

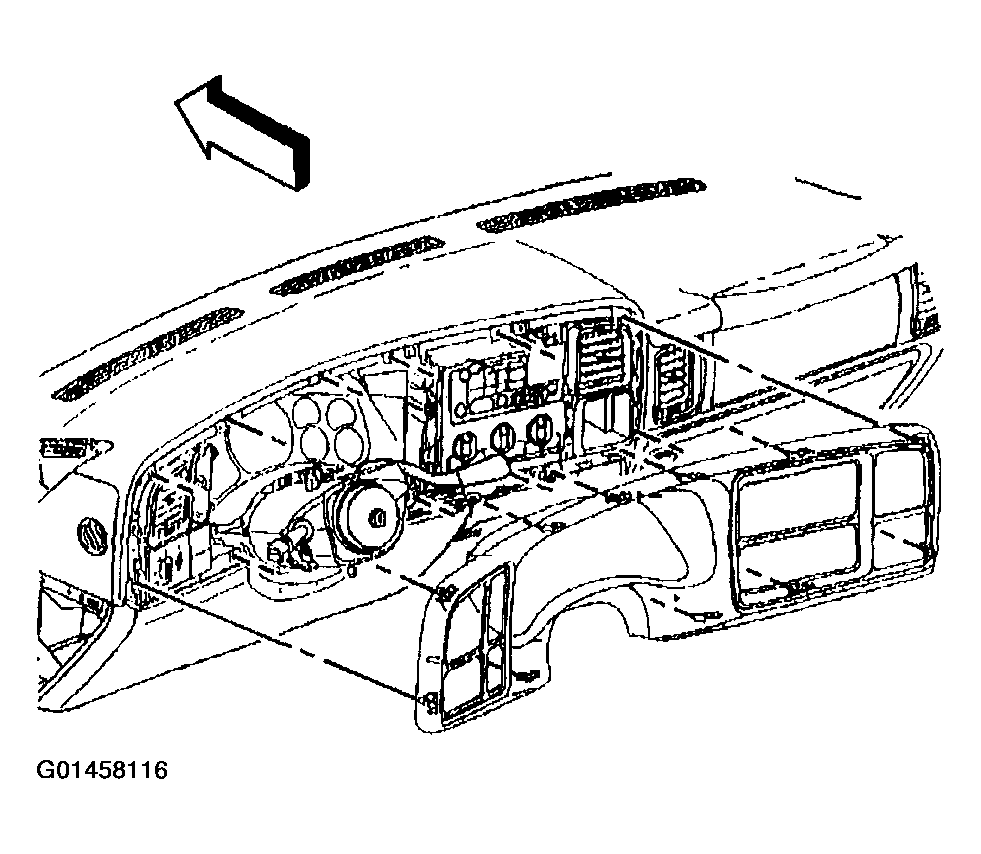

    Fig 1: Removing Bezel From Instrument Panel
    G01458116Courtesy of GENERAL MOTORS CORP.
