Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the ashtray and press the tab (1).
    Fig 1: Pressing Tab For Removing Ashtray - Non-Console
    G01458131Courtesy of GENERAL MOTORS CORP.
  2. Drill out the head of the rivet (1).
  3. Remove the ashtray assembly from the trim panel.

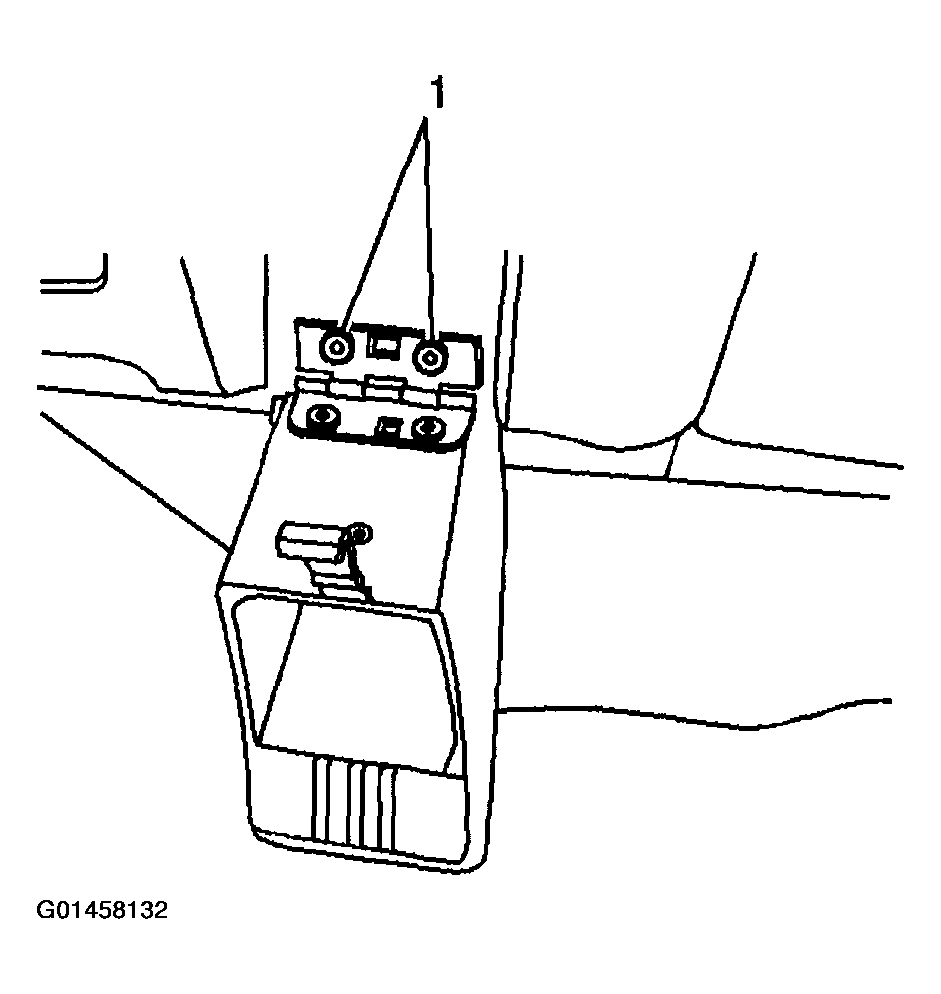

    Fig 2: Removing Ashtray Assembly From Trim Panel - Non-Console
    G01458132Courtesy of GENERAL MOTORS CORP.
