Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ashtray assembly to the trim panel.
  2. Install new rivets (1) to attach the ashtray to the trim panel.

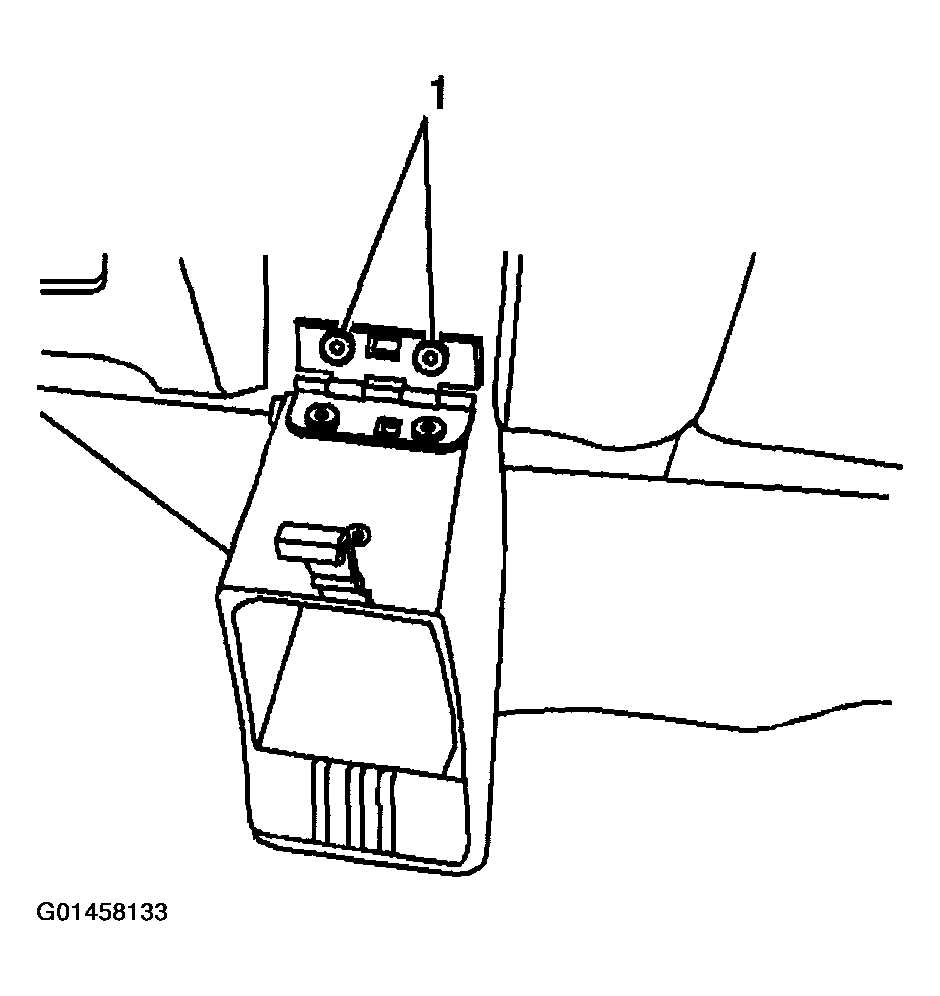

    Fig 1: Installing Ashtray Assembly To Trim Panel - Non-Console
    G01458133Courtesy of GENERAL MOTORS CORP.
  3. Close the ashtray so that the tab (1) goes through the opening.
    Fig 2: Closing Ashtray - Non-Console
    G01458134Courtesy of GENERAL MOTORS CORP.
