Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP trim bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  2. Grasp the accessory switch assembly and pull outwards to remove the button assembly.
  3. Disconnect the electrical connectors for the switches in the assembly.
  4. Remove the switches and the button assembly.

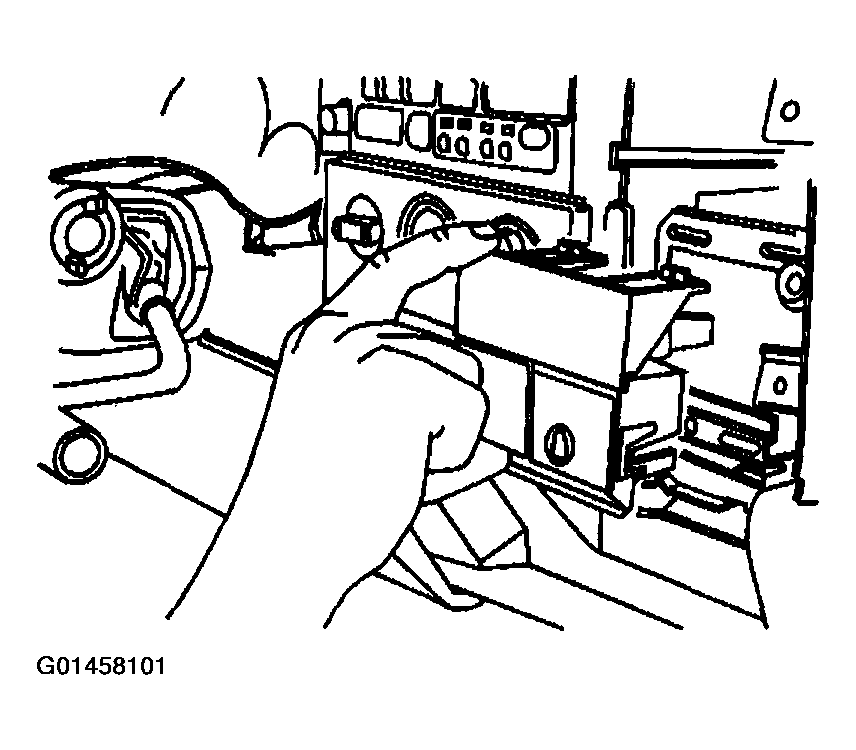

    Fig 1: Removing Button Assembly
    G01458101Courtesy of GENERAL MOTORS CORP.
