Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power supply fuse.
  2. Lift up the front cover of the socket.
  3. Insert the J 42059  into the socket sleeve. Tilt the tool so that the tool fits into the slots on the sides of the socket sleeve.

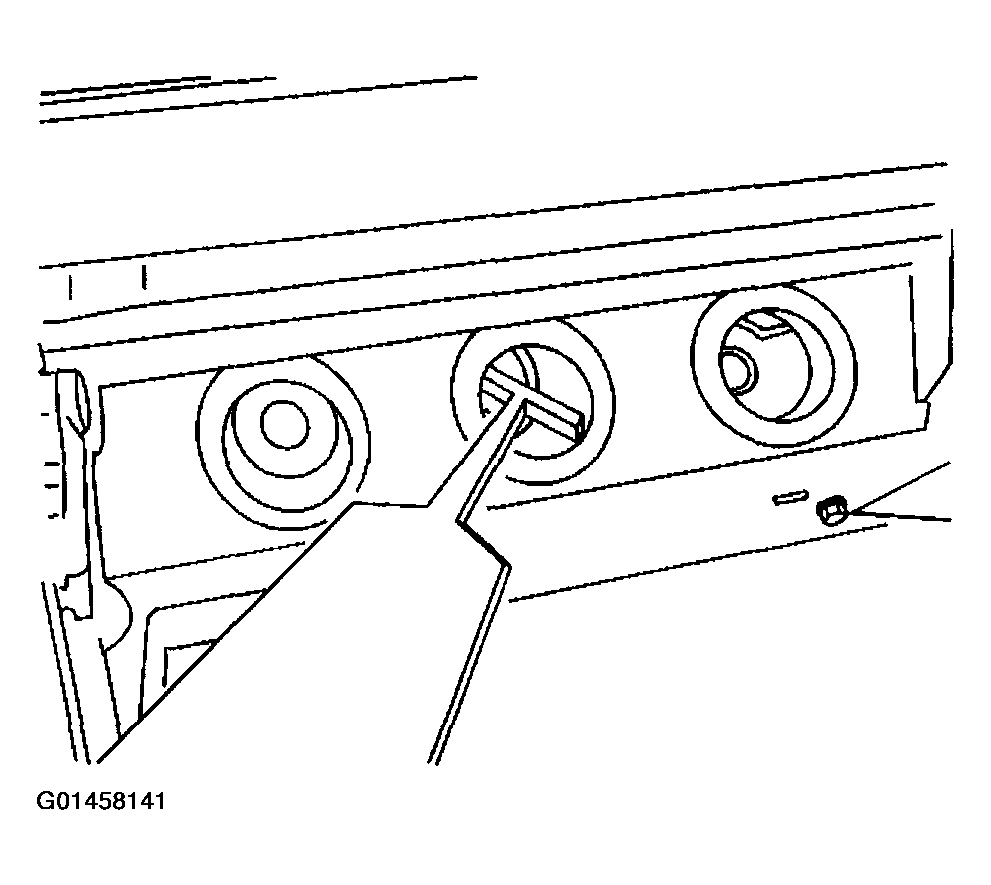

    Fig 1: Inserting Cigarette Lighter Socket Removal (J 42059) Into Socket Sleeve - 12 Volt
    G01458141Courtesy of GENERAL MOTORS CORP.
  4. Hold the plastic ring in place. Pull the socket gently out of the assembly in order to remove the outlet.

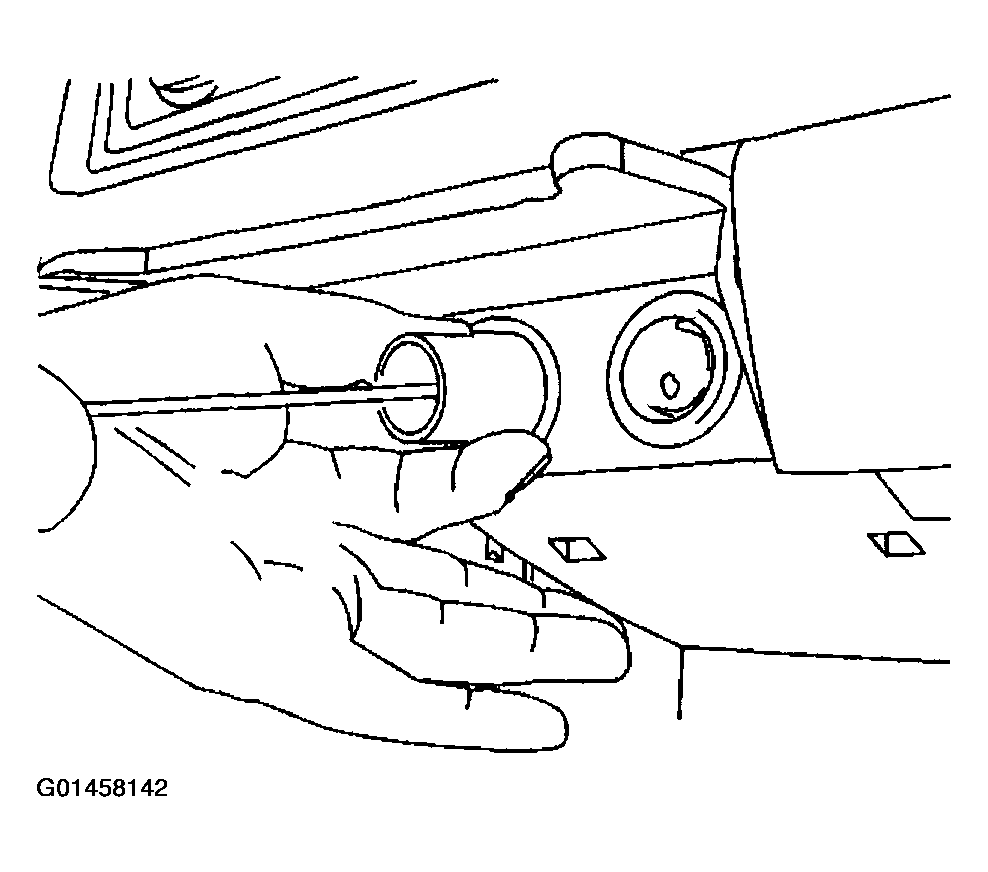

    Fig 2: Holding Plastic Ring In Place To Remove Outlet - 12 Volt
    G01458142Courtesy of GENERAL MOTORS CORP.
  5. Remove the electrical connector from the socket.

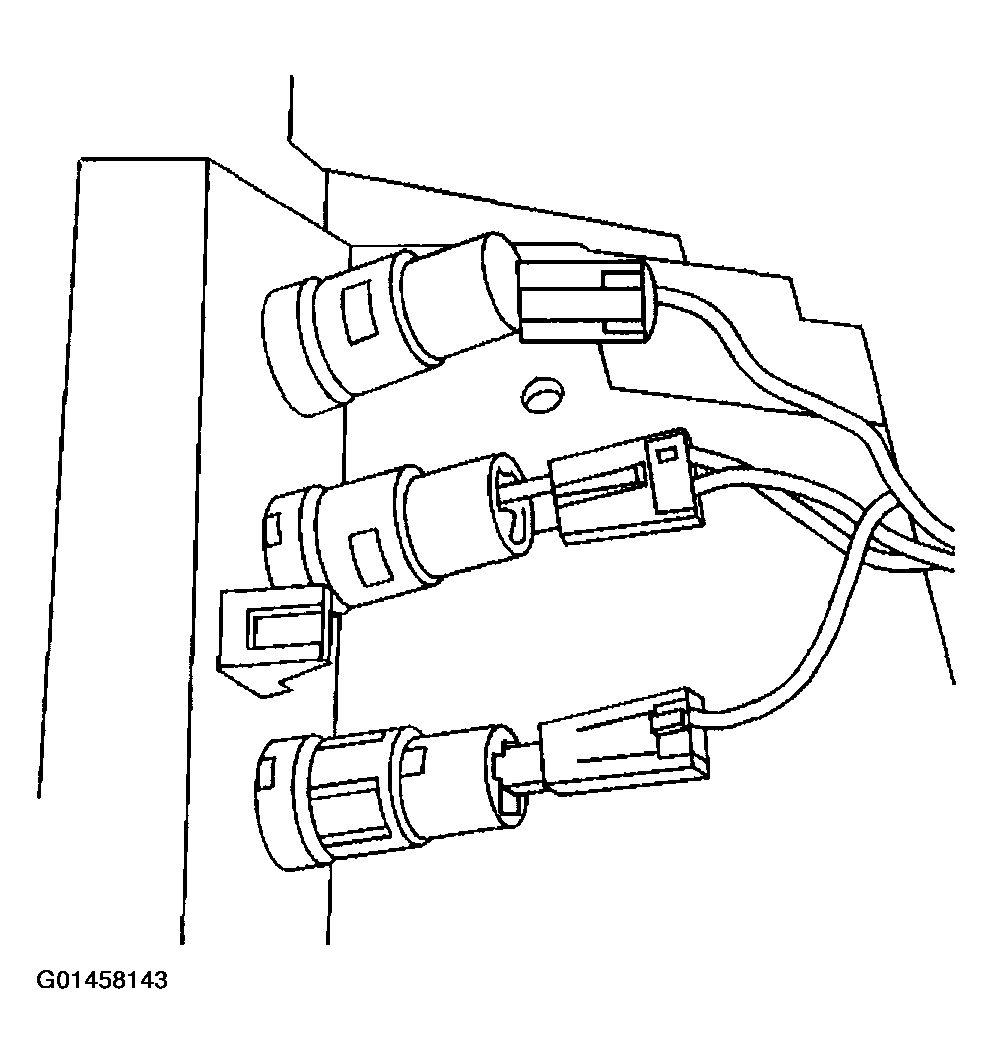

    Fig 3: Removing Electrical Connector From Socket - 12 Volt
    G01458143Courtesy of GENERAL MOTORS CORP.
