Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the socket.
  2. Insert the plastic ring into the opening and snap the plastic ring into place.
  3. Insert the socket through the plastic ring gently by hand until the socket ring is sealed.
  4. Install the power supply fuse.

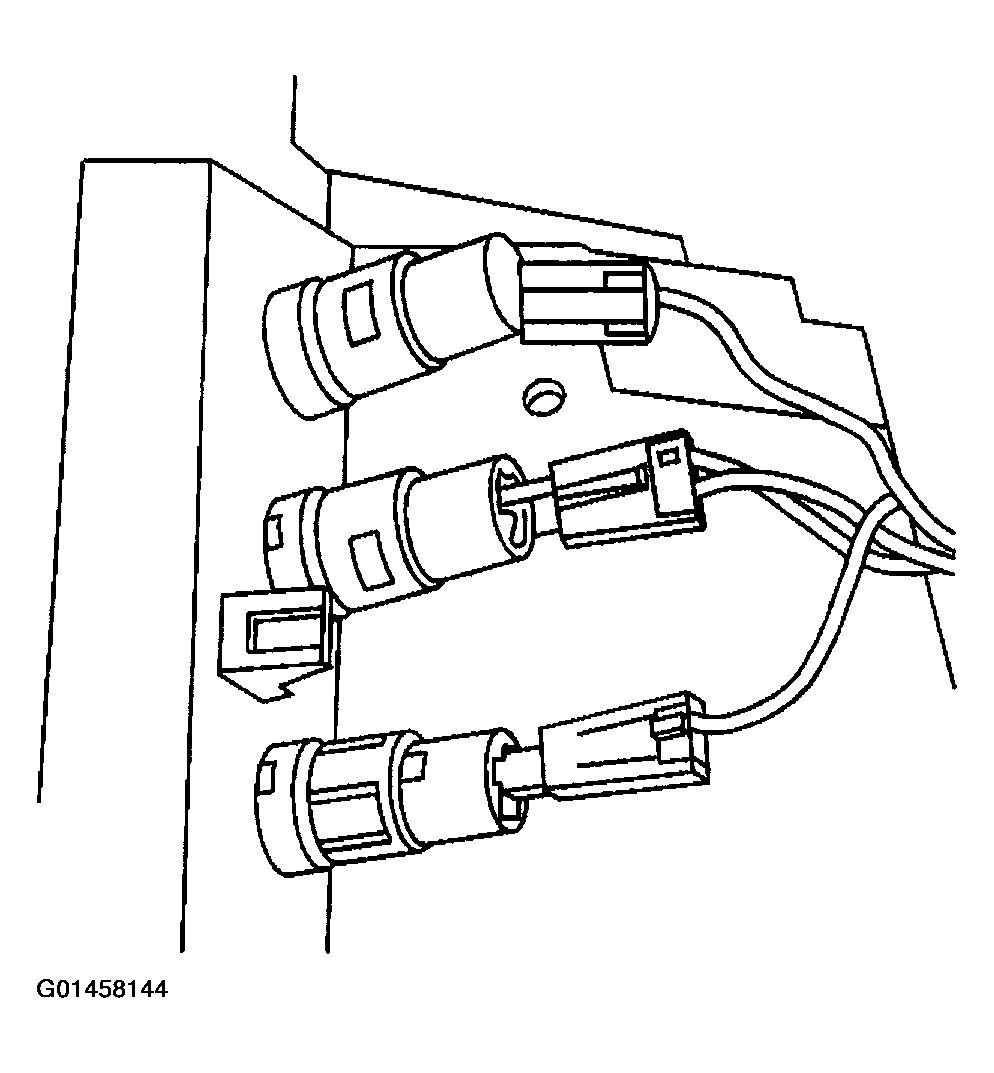

    Fig 1: Connecting Electrical Connector To Socket - 12 Volt
    G01458144Courtesy of GENERAL MOTORS CORP.
