Instrument Panel, Gages, and Console Connector End Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

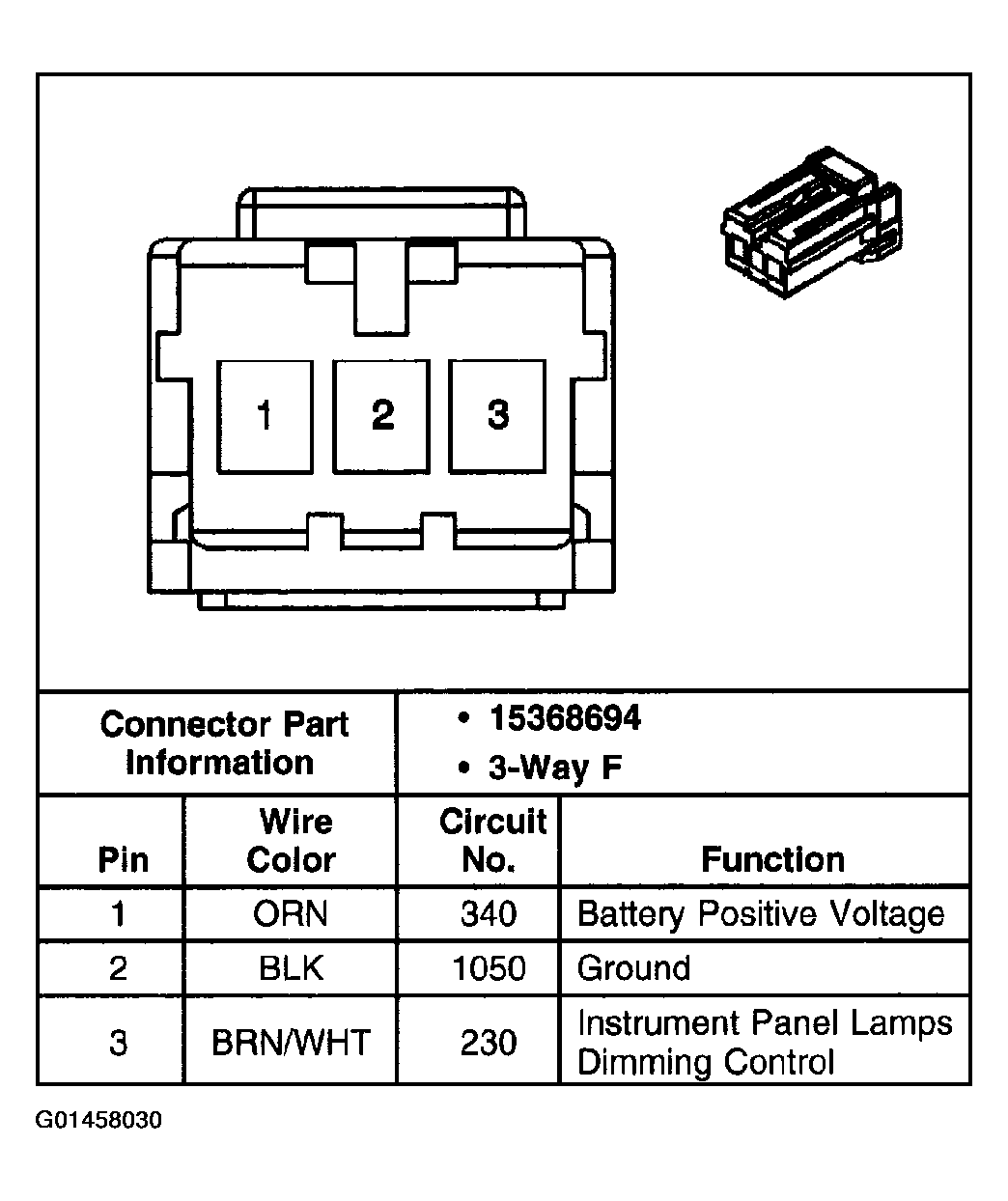

Fig 1: Identifying Analog Clock Connector Terminals & Functions - W/Z75

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Coolant Level Switch Terminals & Functions - 8.1L

Courtesy of GENERAL MOTORS CORP.

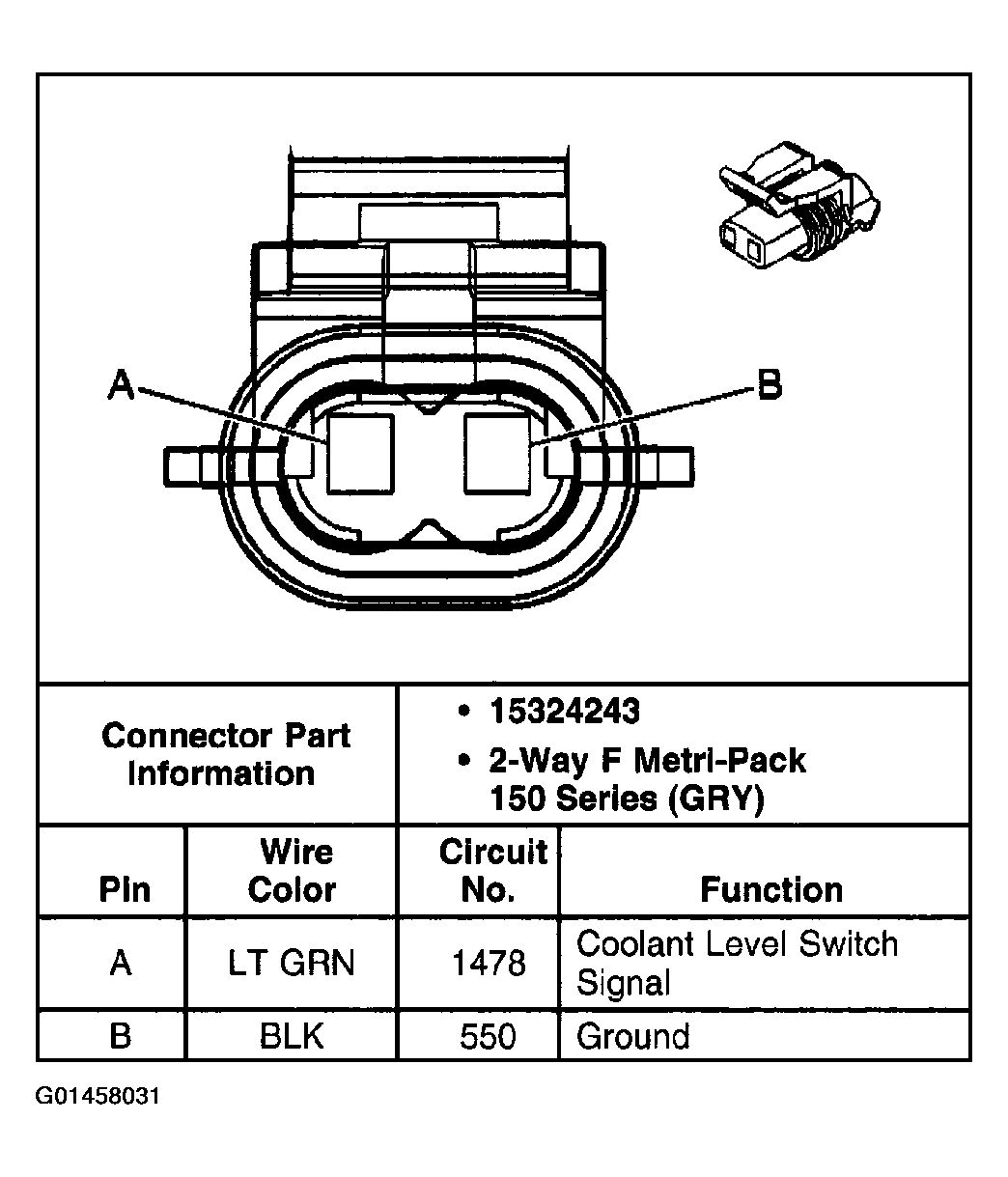

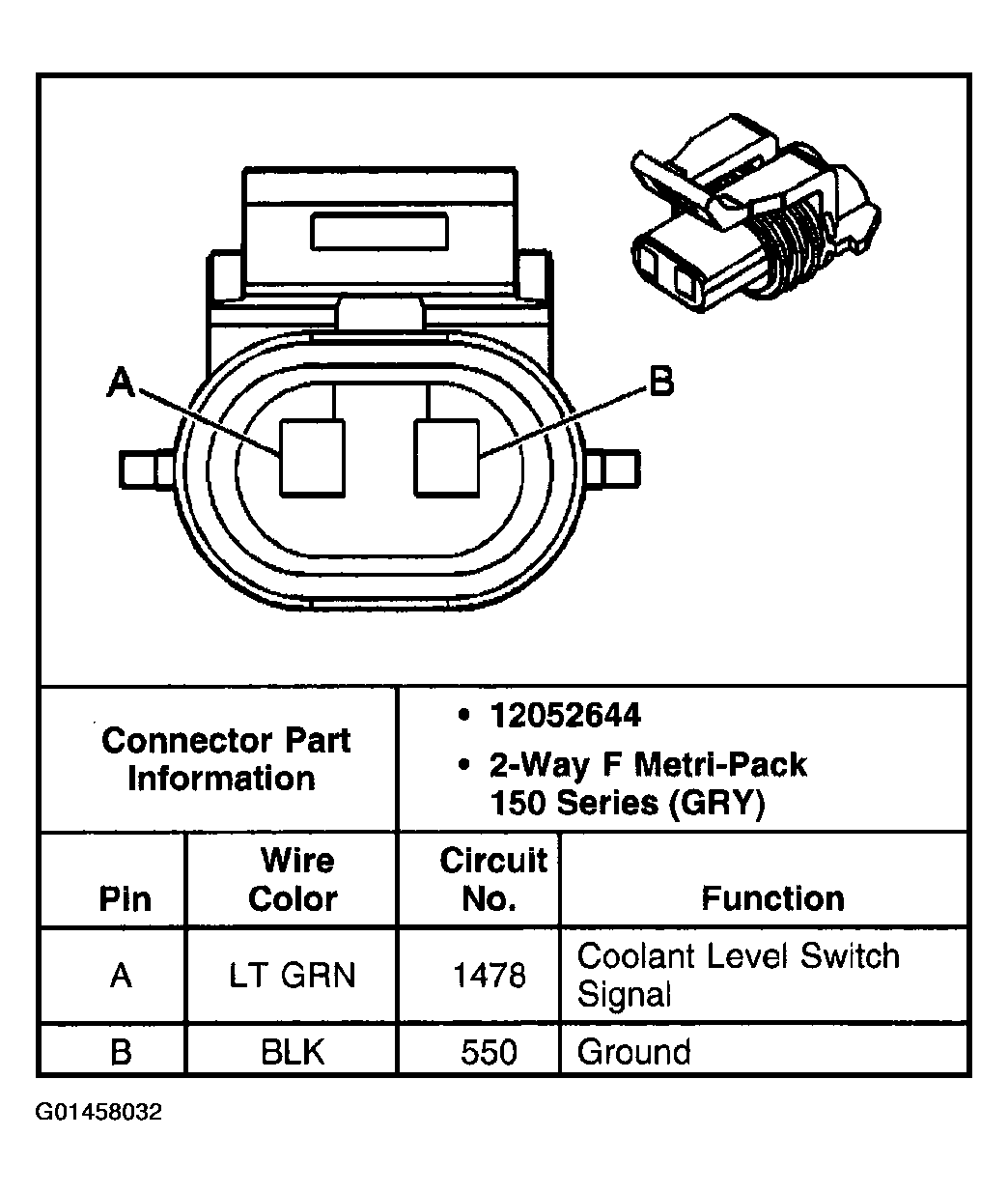

Fig 3: Identifying Coolant Level Switch Terminals & Functions - Except 8.1L

Courtesy of GENERAL MOTORS CORP.

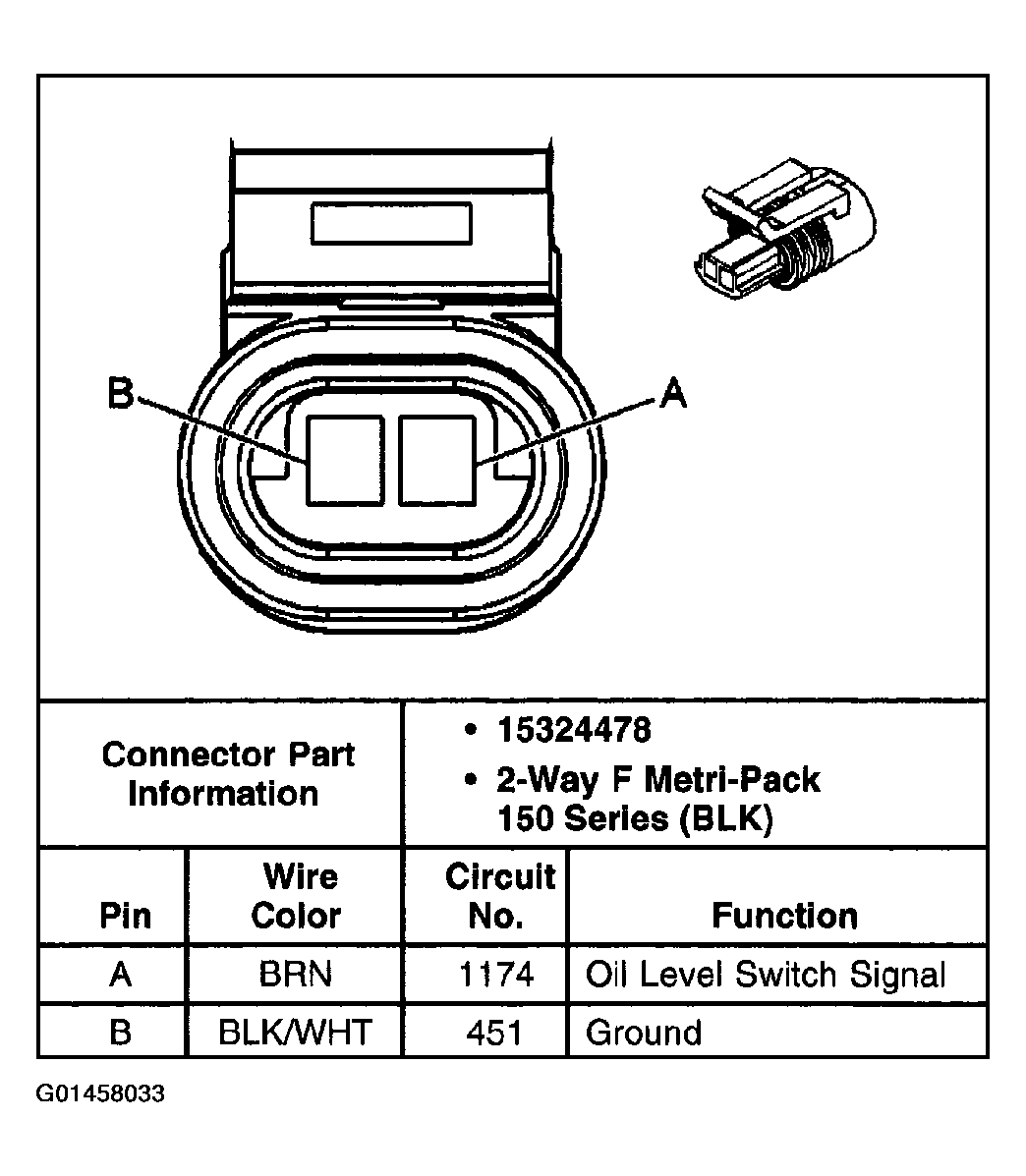

Fig 4: Identifying Engine Oil Level Switch Terminals & Functions - 8.1L

Courtesy of GENERAL MOTORS CORP.

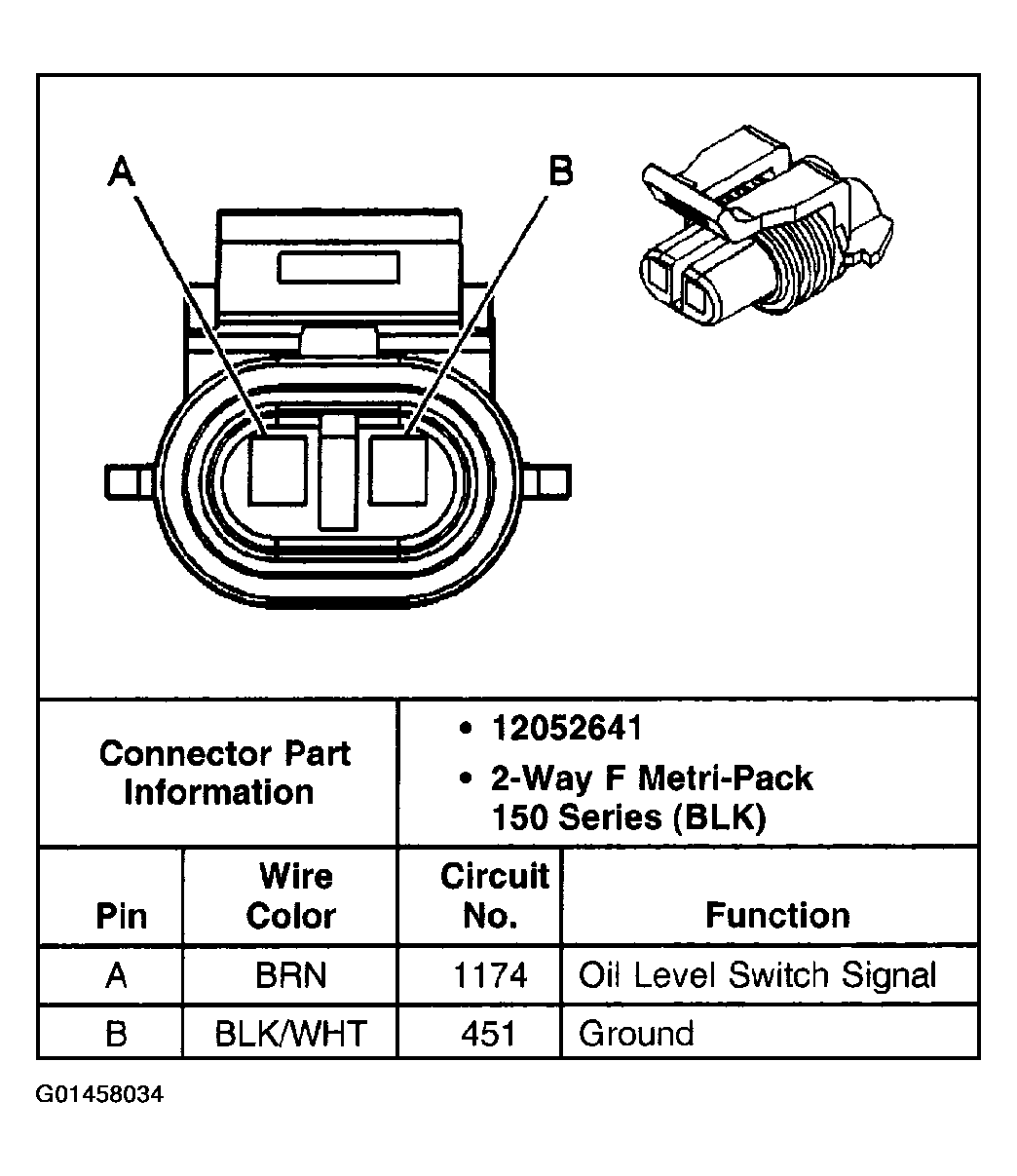

Fig 5: Identifying Engine Oil Level Switch Terminals & Functions - Except 8.1L

Courtesy of GENERAL MOTORS CORP.

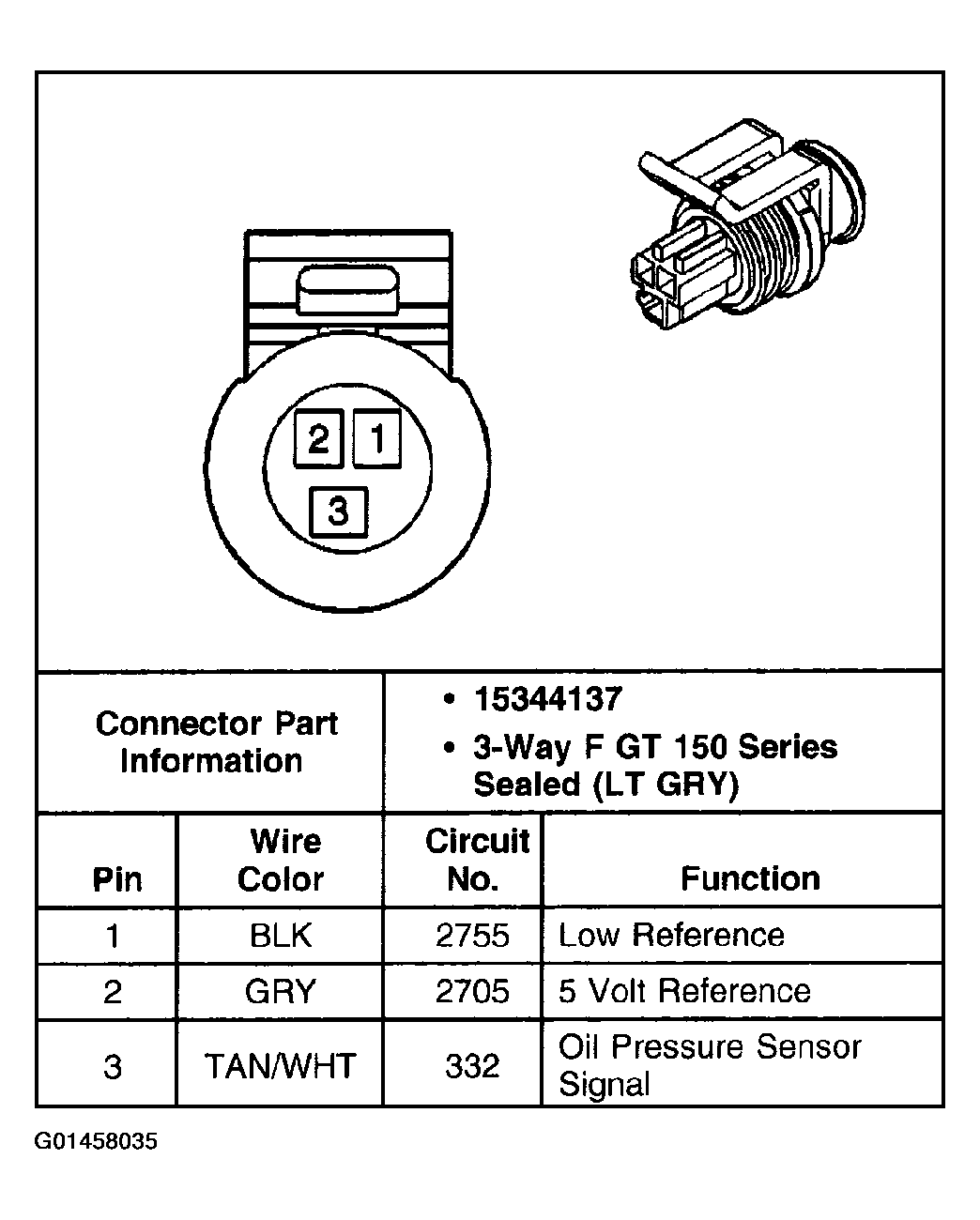

Fig 6: Identifying Engine Oil Pressure Sensor Connector Terminals & Functions

Courtesy of GENERAL MOTORS CORP.

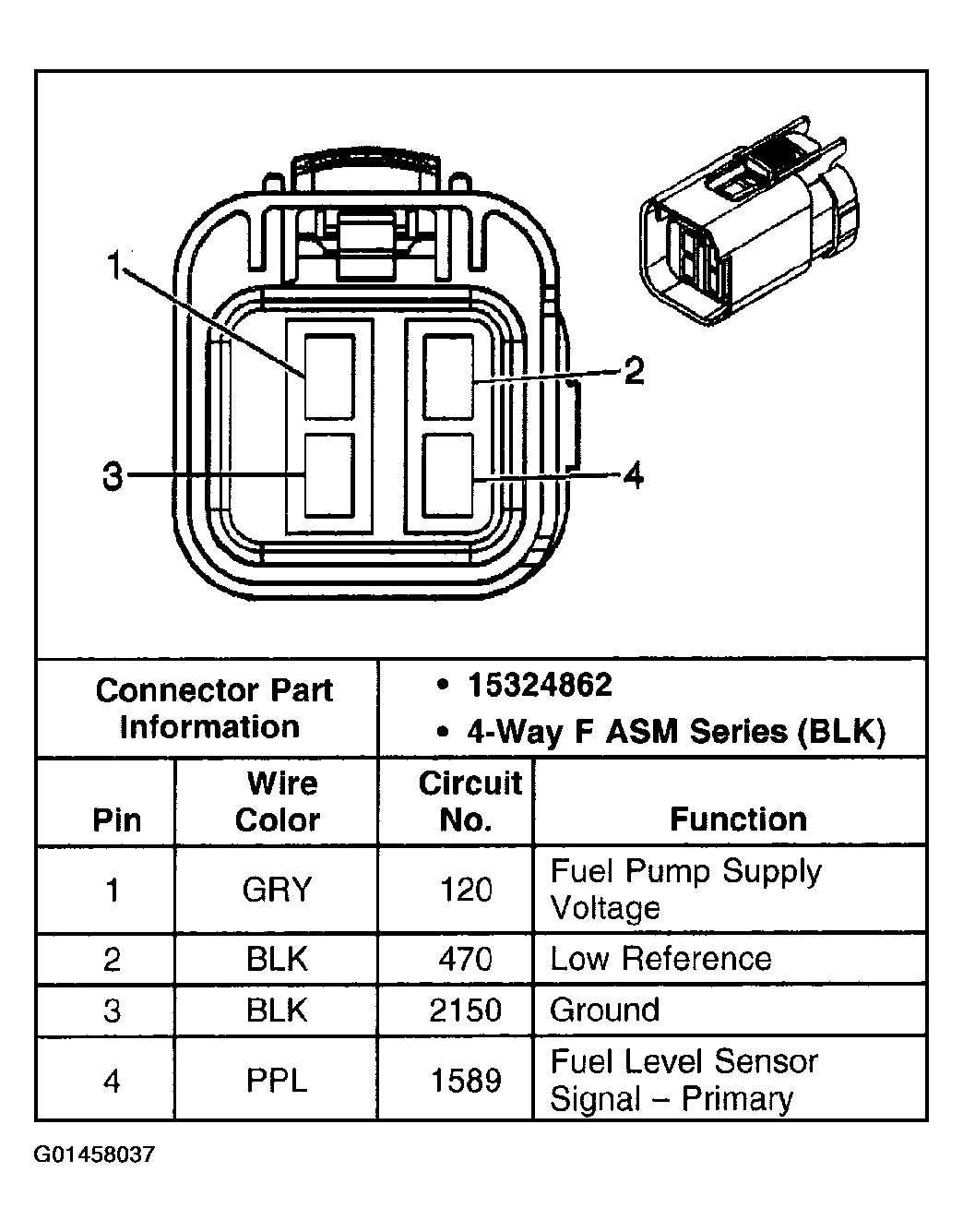

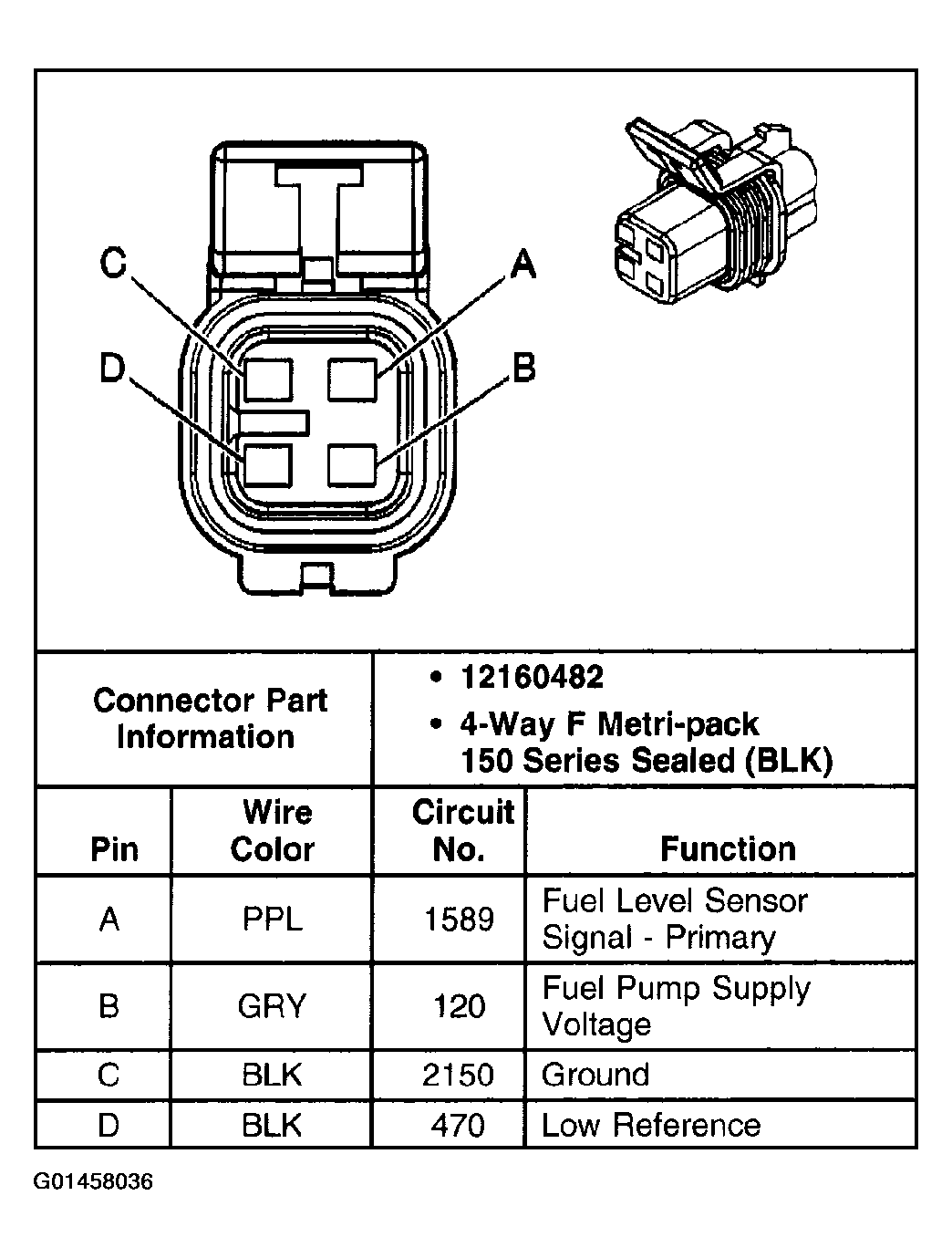

Fig 7: Identifying Fuel Pump/Sender Assembly (Primary) Connector Terminals & Functions - Tahoe/Yukon/Escalade

Courtesy of GENERAL MOTORS CORP.

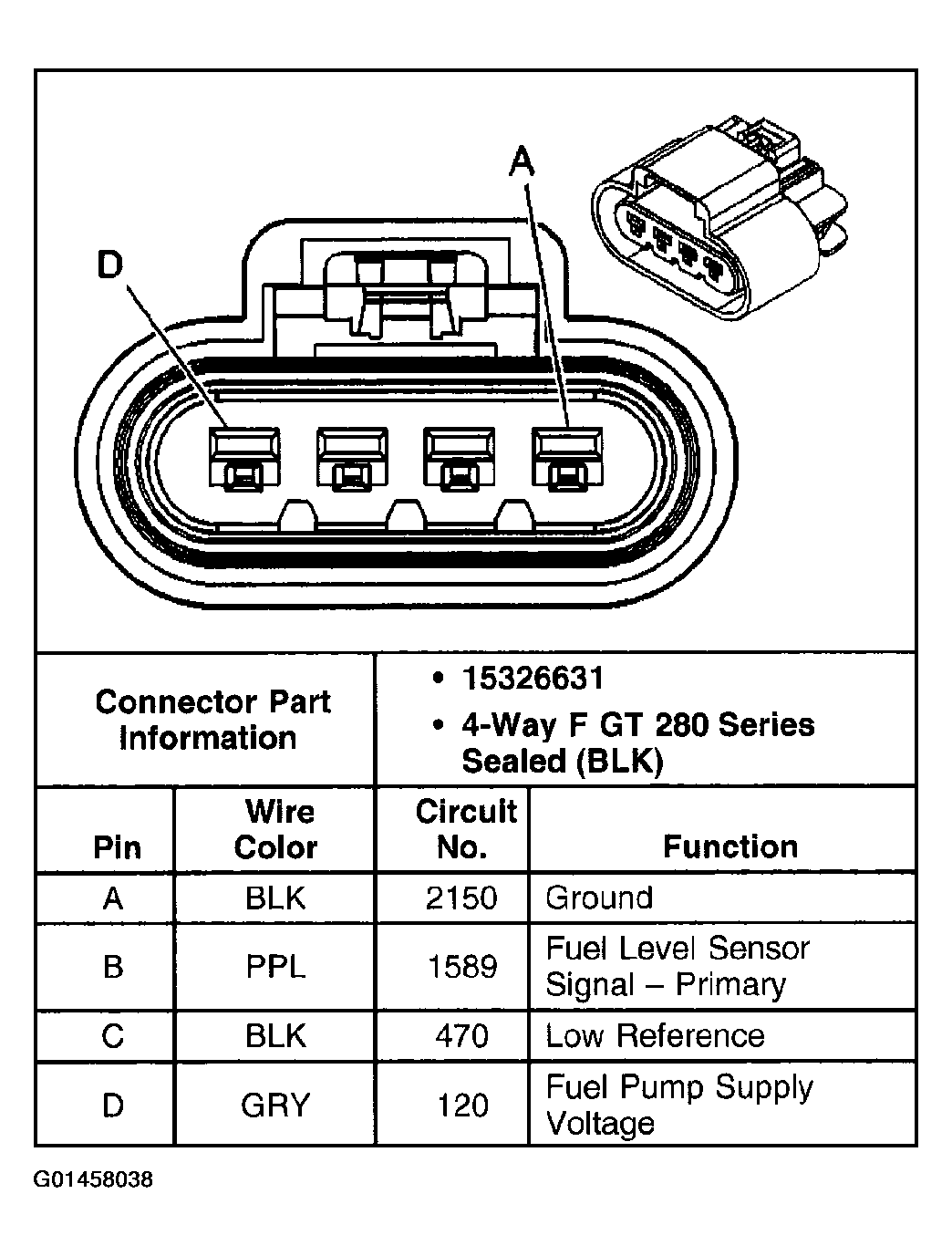

Fig 8: Identifying Fuel Pump/Sender Assembly (Primary) Connector Terminals & Functions - L59

Courtesy of GENERAL MOTORS CORP.

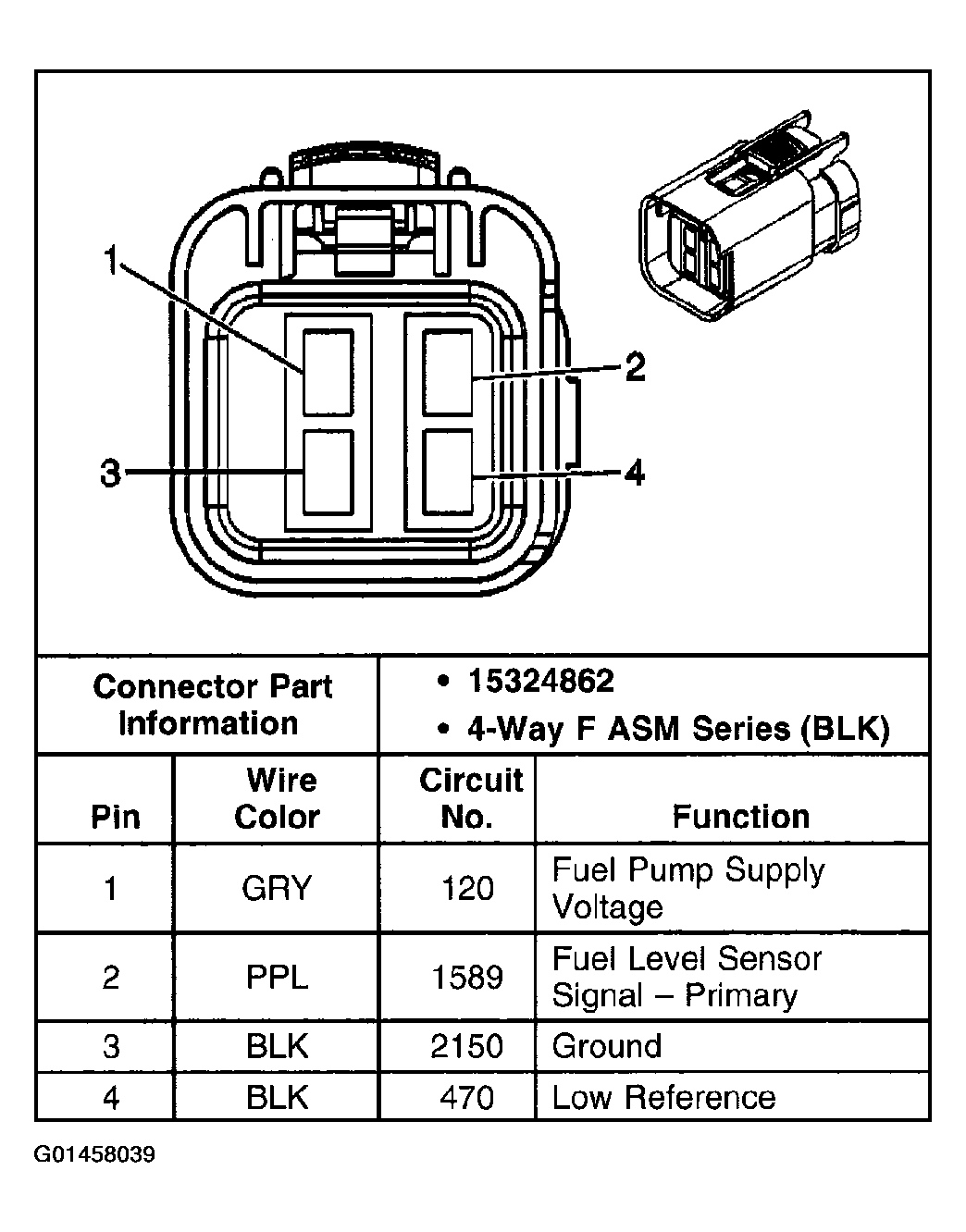

Fig 9: Identifying Fuel Pump/Sender Assembly (Primary) Connector Terminals & Functions - Suburban/Yukon Xl/Avalanche/Escalade EXT

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Fuel Pump/Sender Assembly (Primary) Connector Terminals & Functions - Export Suburban/Yukon XL

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying Fuel Pump/Sender Assembly Connector Terminals & Functions - Suburban/Yukon XL/Avalanche

Courtesy of GENERAL MOTORS CORP.

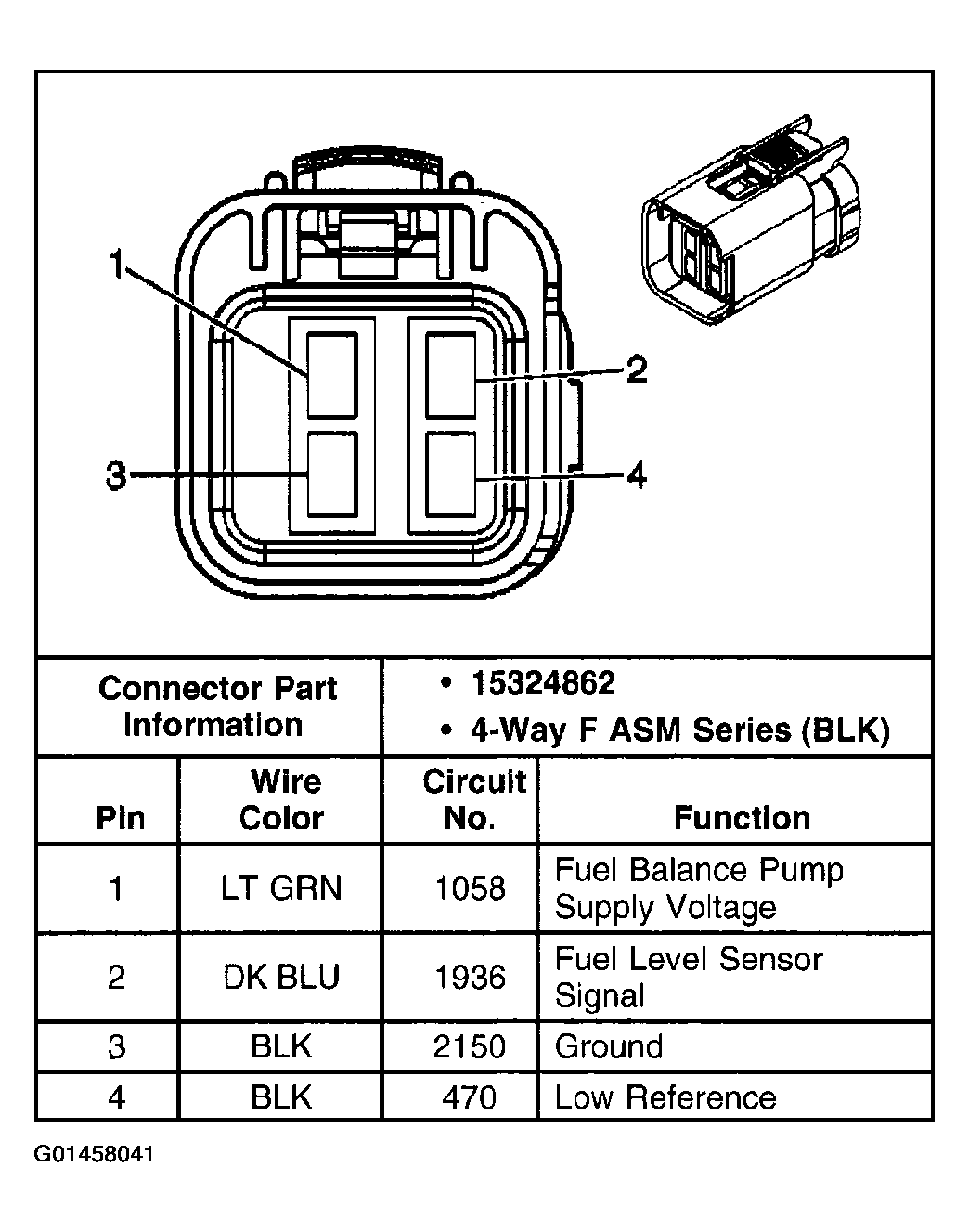

Fig 12: Identifying Fuel Pump/Sender Assembly (Secondary) Connector Terminals & Functions - Export Suburban/Yukon XL

Courtesy of GENERAL MOTORS CORP.

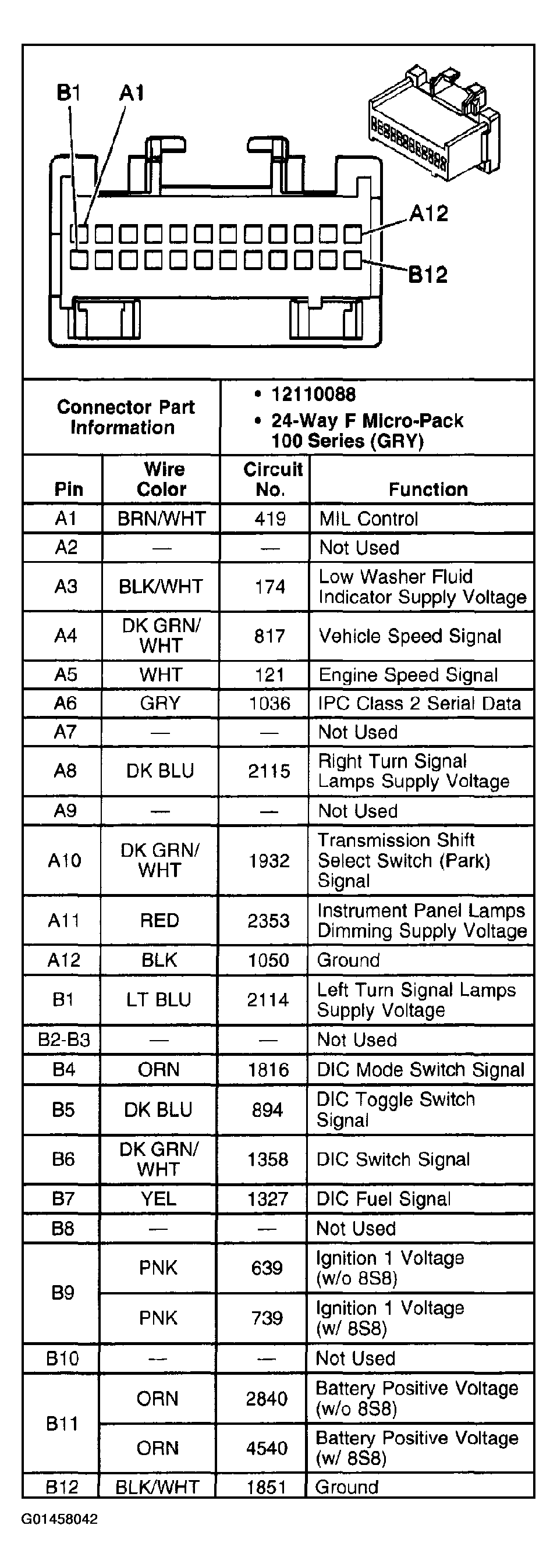

Fig 13: Identifying Instrument Panel Cluster Connector Terminals & Functions

Courtesy of GENERAL MOTORS CORP.
