Instrument Panel, Gages, and Console Component Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

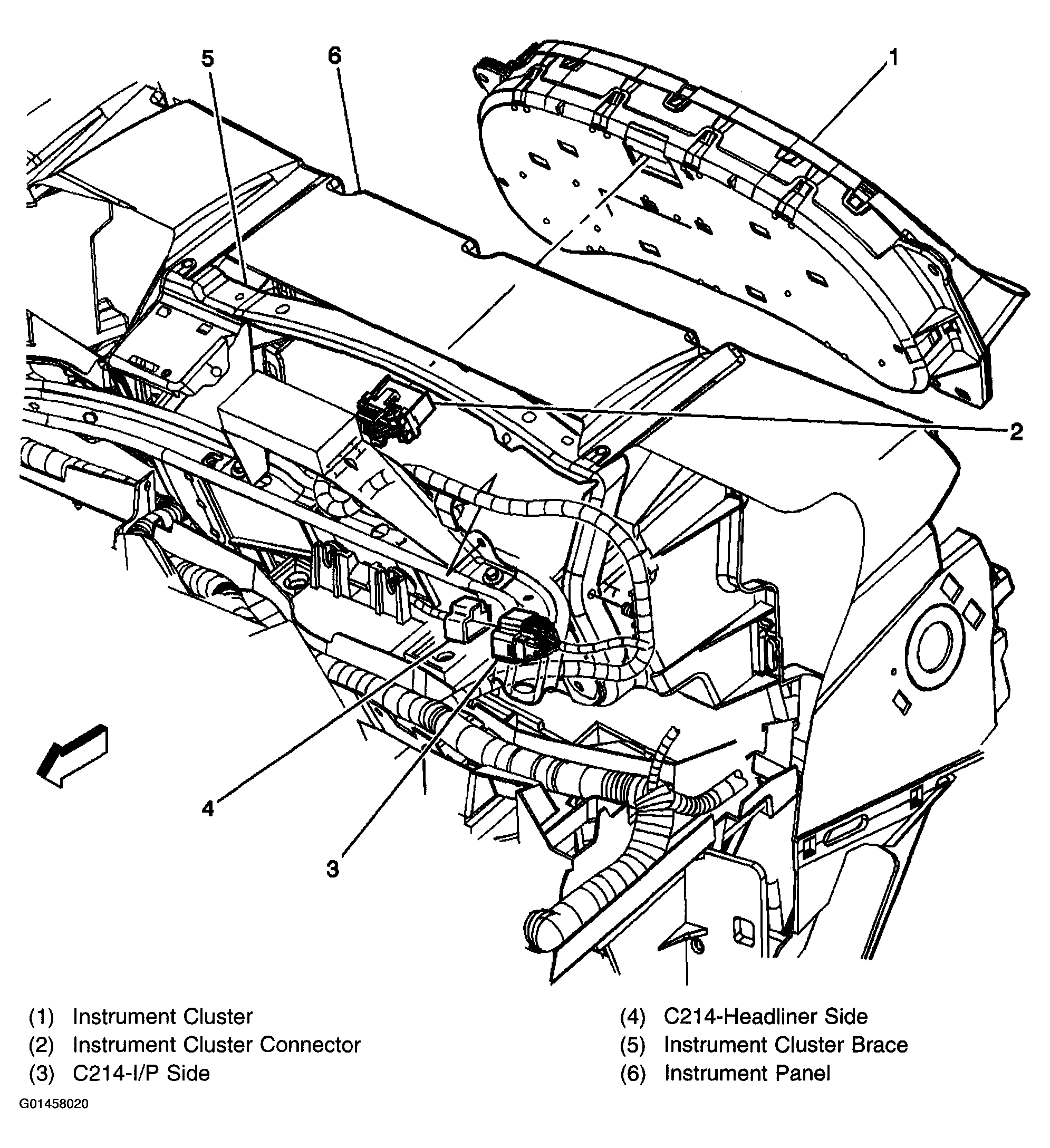

Fig 1: Identifying Instrument Panel Component - Left Rear Top

G01458020

Courtesy of GENERAL MOTORS CORP.

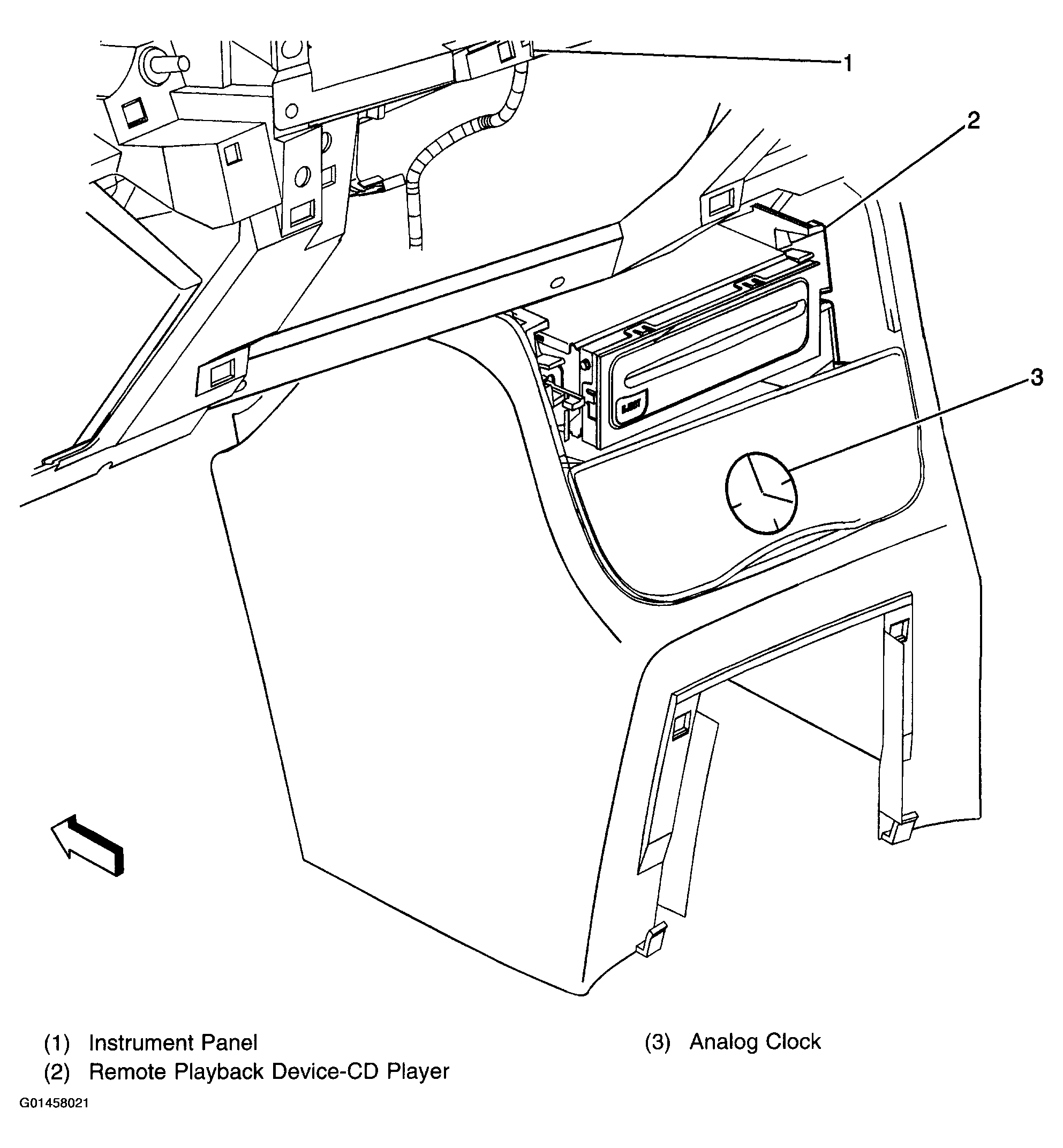

Fig 2: Identifying Various Console Components

G01458021

Courtesy of GENERAL MOTORS CORP.

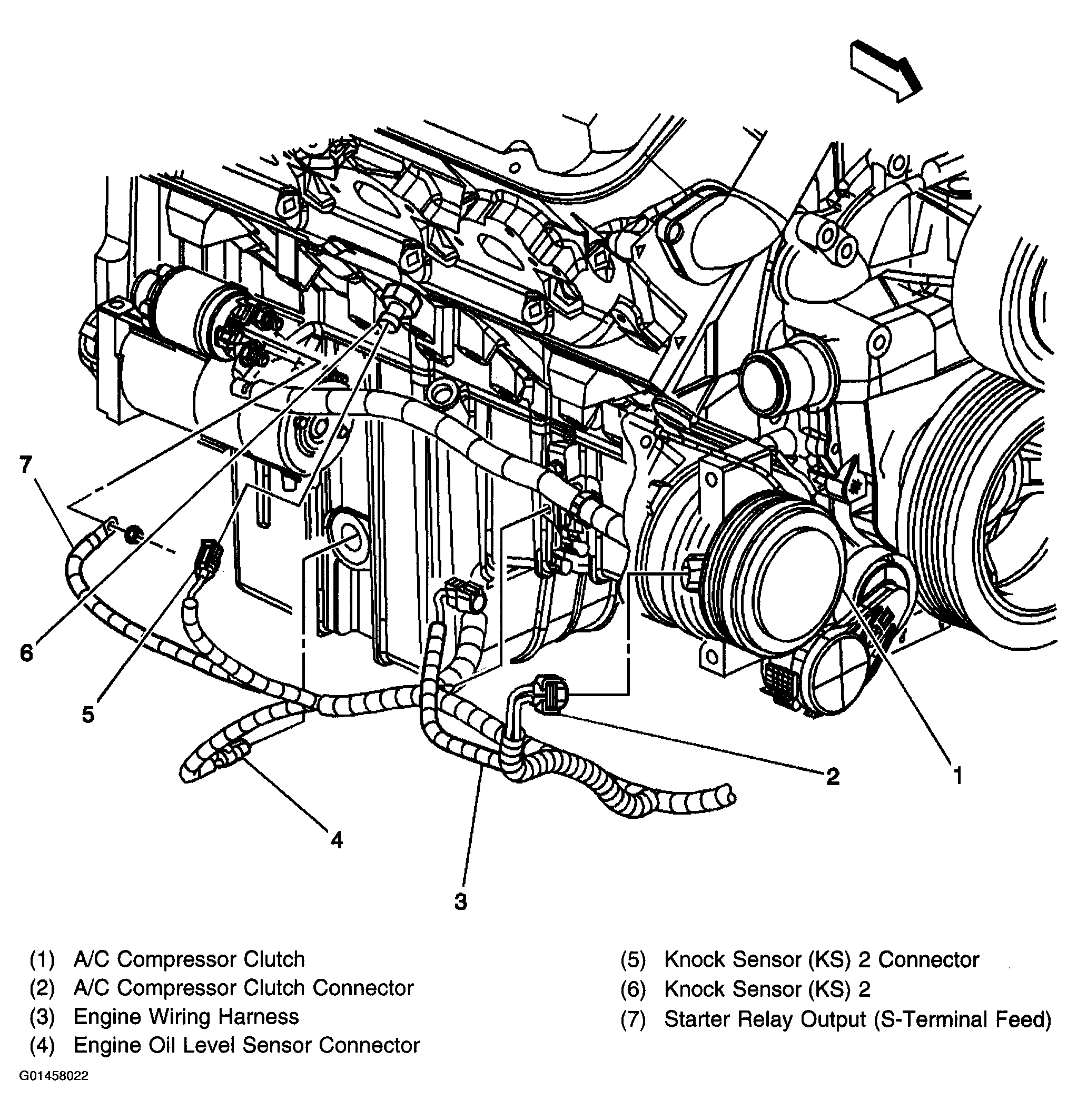

Fig 3: Identifying Engine Compartment Various Harness Connector - Engine Lower View

G01458022

Courtesy of GENERAL MOTORS CORP.

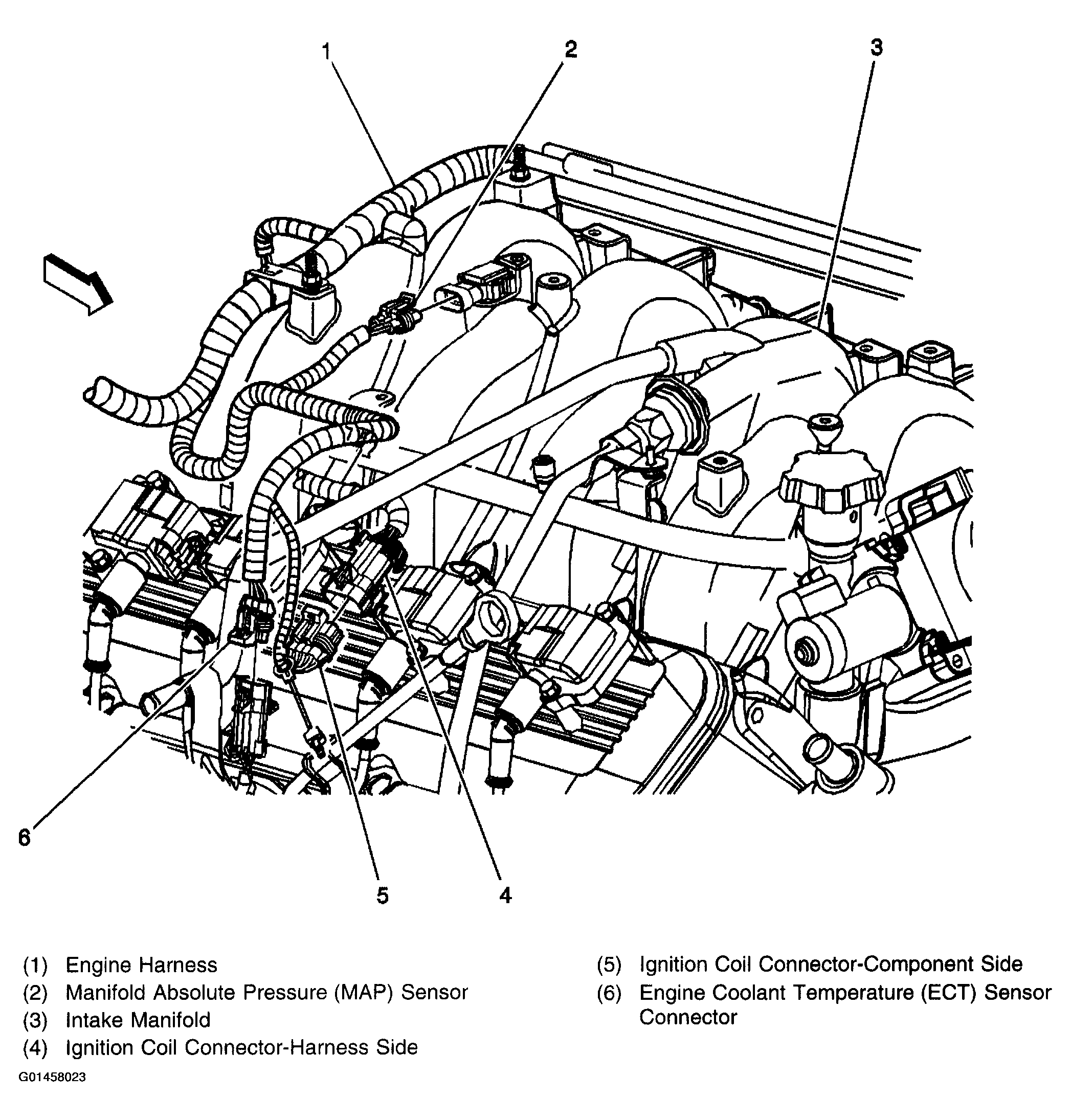

Fig 4: Identifying Engine Compartment Various Harness Connector - Engine View-Upper Right (8.1L)

G01458023

Courtesy of GENERAL MOTORS CORP.

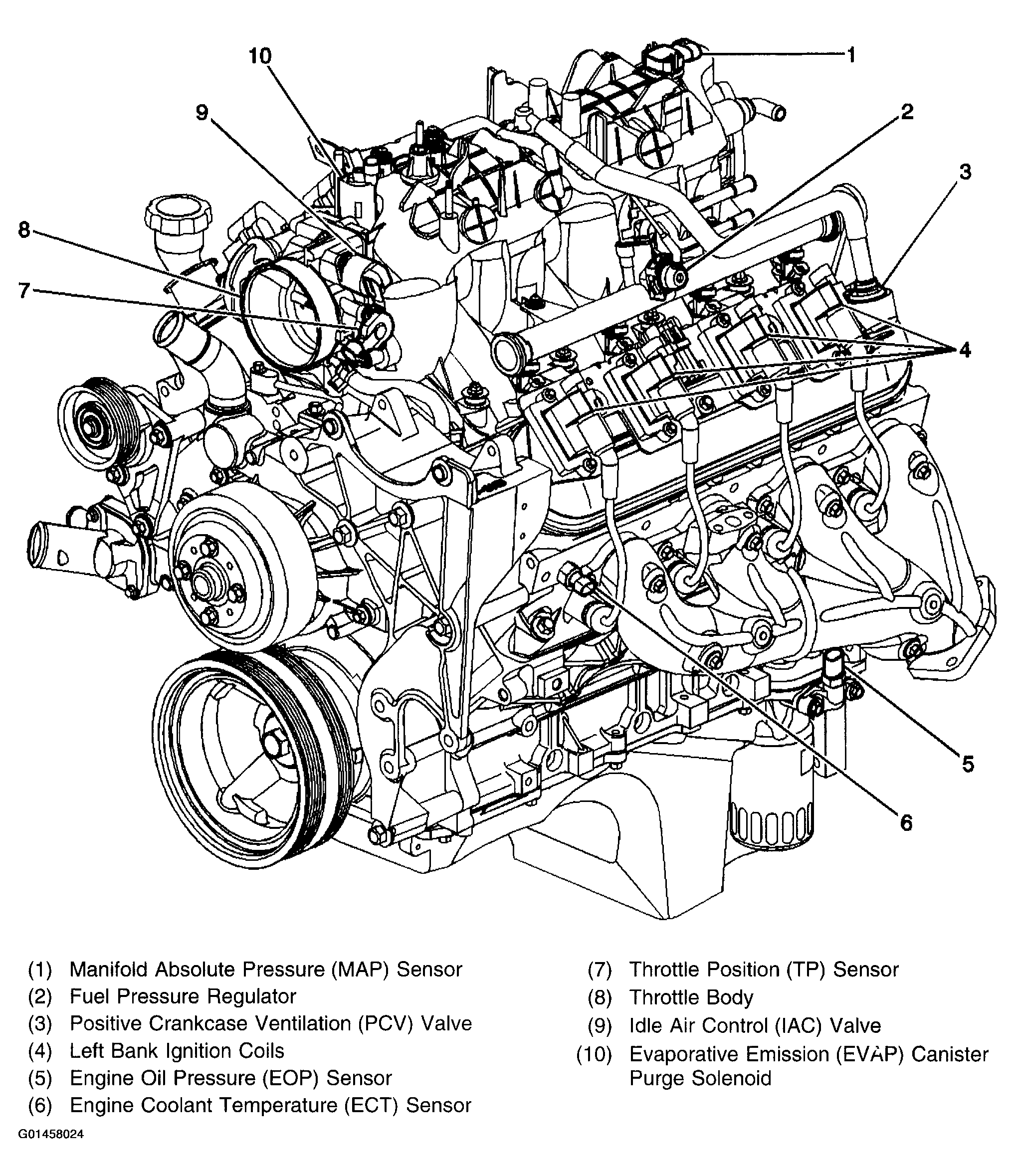

Fig 5: Identifying Full Engine View-Left Side (5.3L, 6.0L) & Sensor Location

G01458024

Courtesy of GENERAL MOTORS CORP.

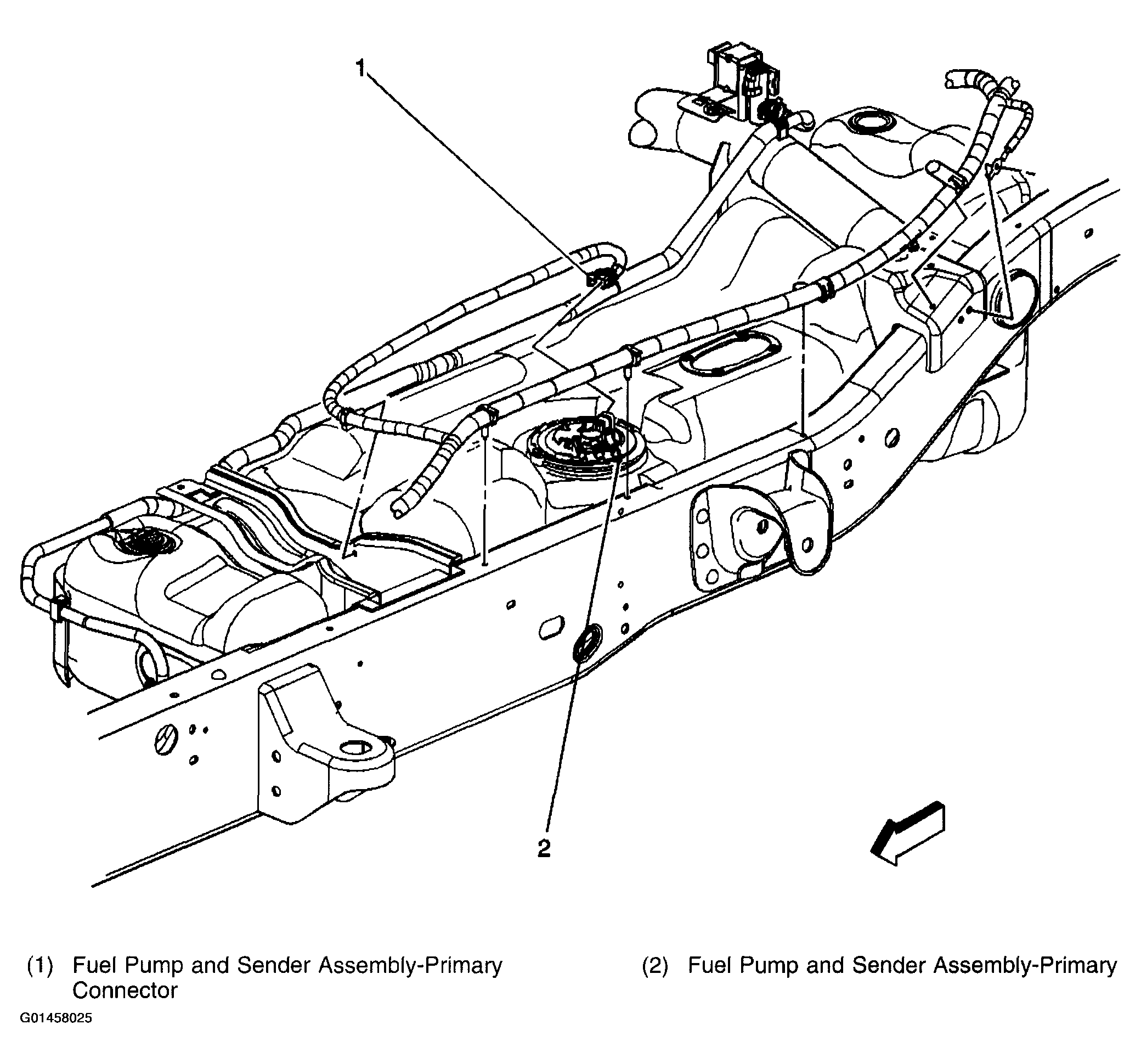

Fig 6: Identifying Fuel Pump & Sender Assembly-Primary

G01458025

Courtesy of GENERAL MOTORS CORP.

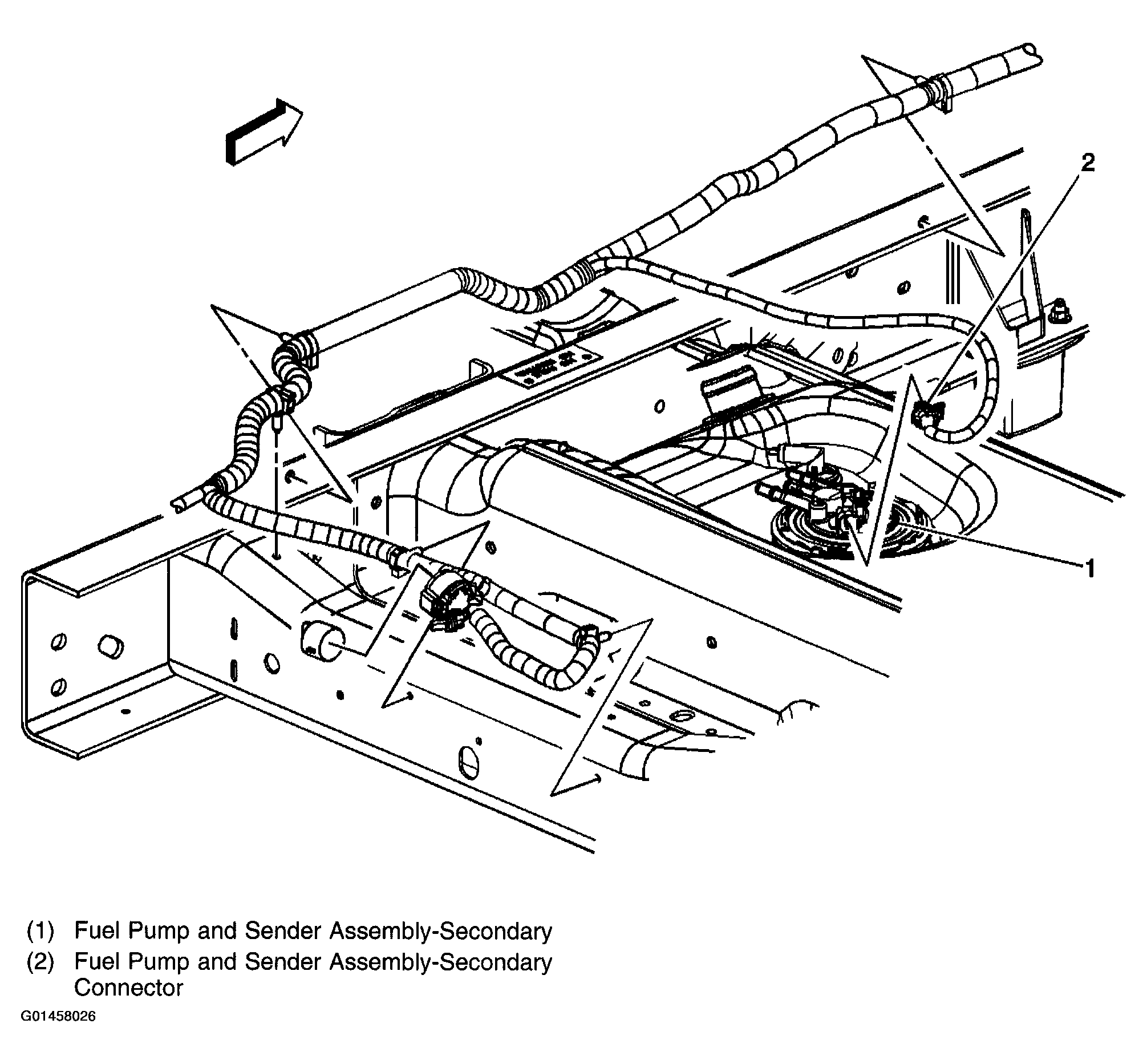

Fig 7: Identifying Fuel Pump & Sender Assembly-Secondary

G01458026

Courtesy of GENERAL MOTORS CORP.

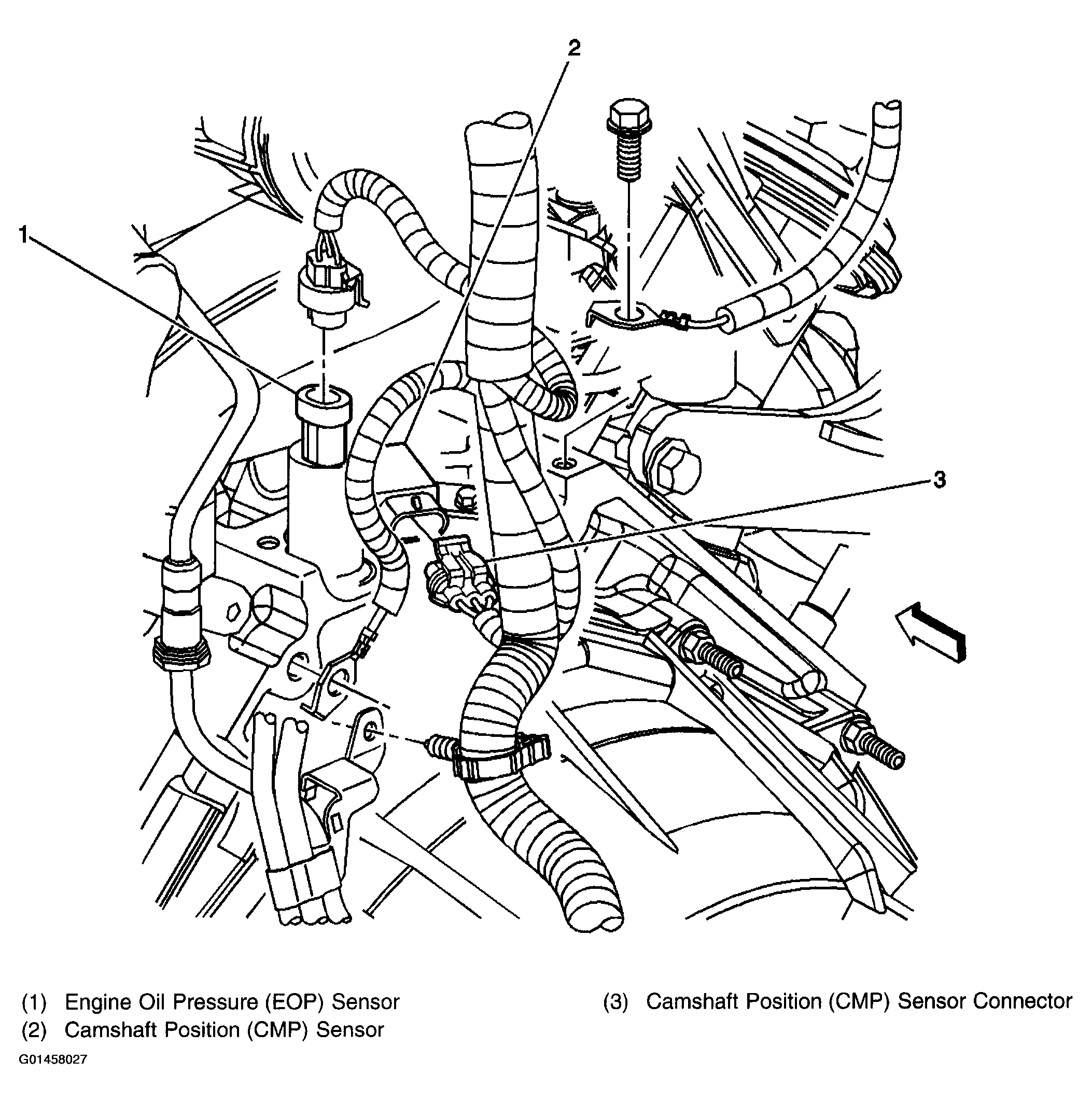

Fig 8: Identifying Engine Oil Pressure Sensor & Camshaft Position Sensor (4.8L, 5.3L 6.0L)

G01458027

Courtesy of GENERAL MOTORS CORP.

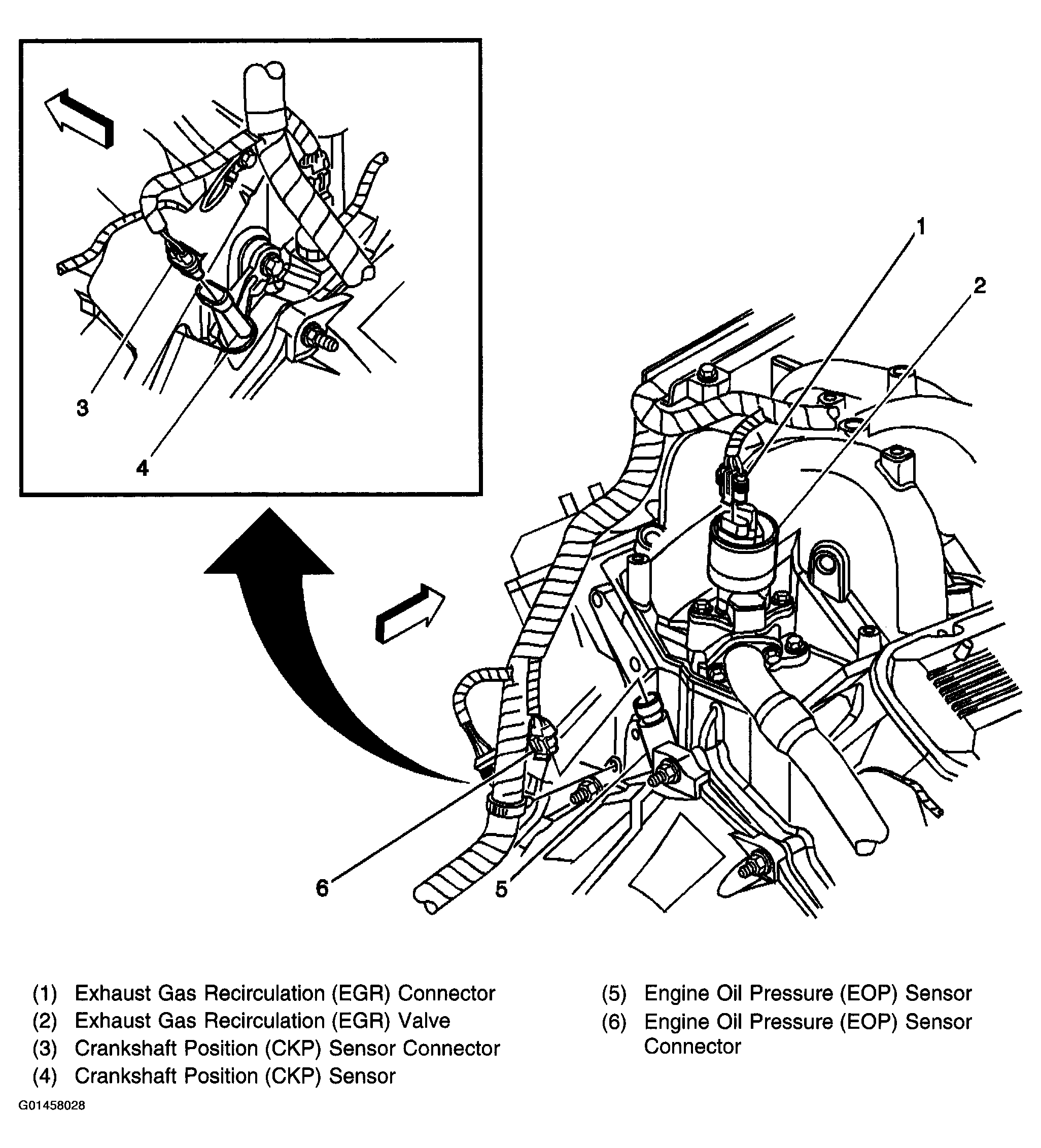

Fig 9: Engine Oil Pressure Sensor & Camshaft Position Sensor (8.1L)

G01458028

Courtesy of GENERAL MOTORS CORP.

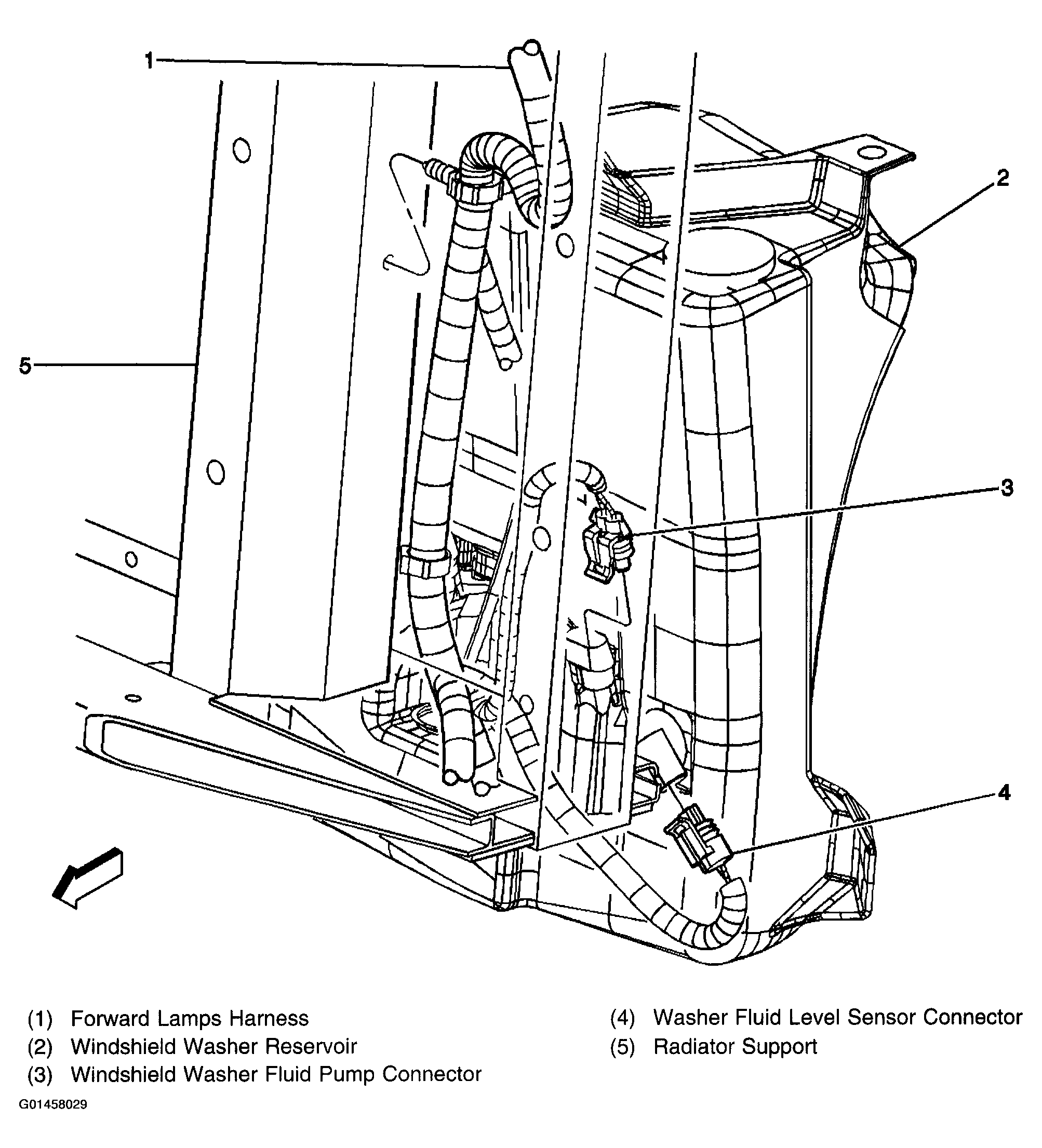

Fig 10: Identifying Windshield Washer Reservoir & Sensor Connector

G01458029

Courtesy of GENERAL MOTORS CORP.
