Conditions for Setting the DTC

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

One of the 3 monitored ignition switch circuits has malfunctioned. The DTC will set, if one of the following situations is present:

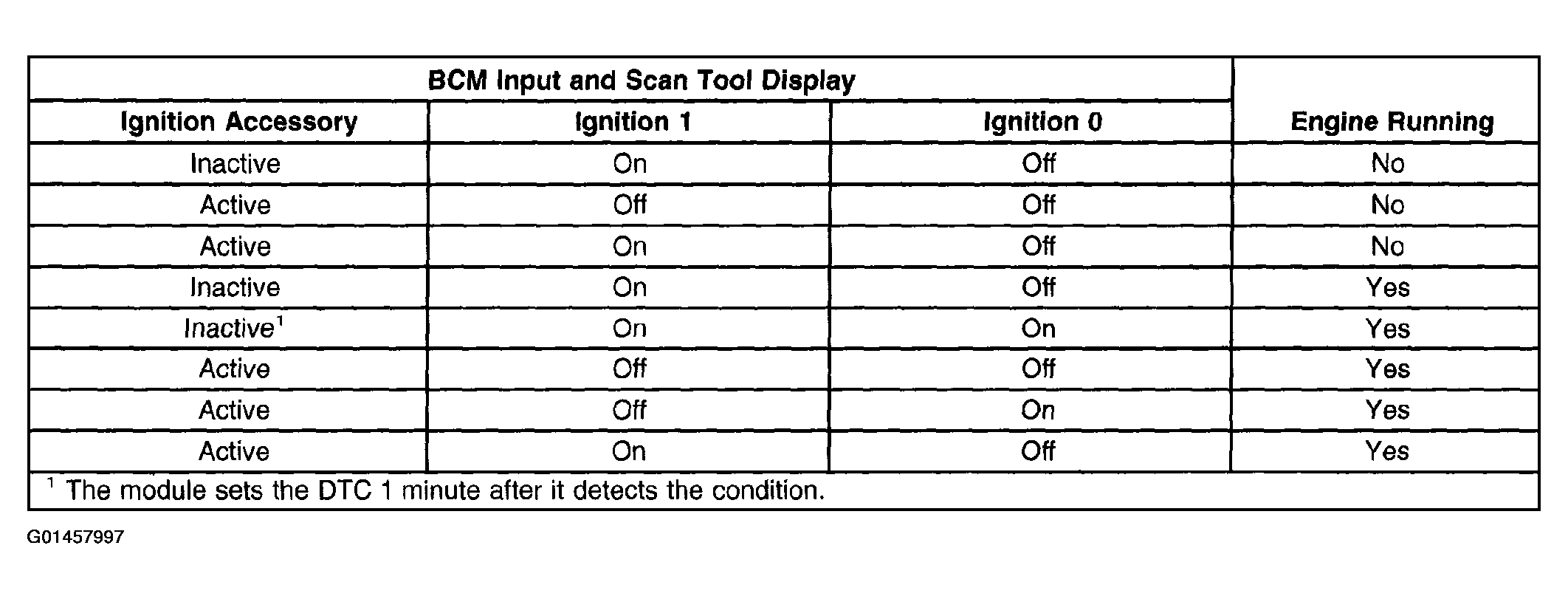

Fig 1: Incorrect Ignition Switch Inputs Specifications
G01457997Courtesy of GENERAL MOTORS CORP.
