Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  2. Lower the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
  3. Disconnect the cables from the antenna base.

    Important:  Observe the routing of the cables.

  4. Remove the cable retainers from the roof and pillar.

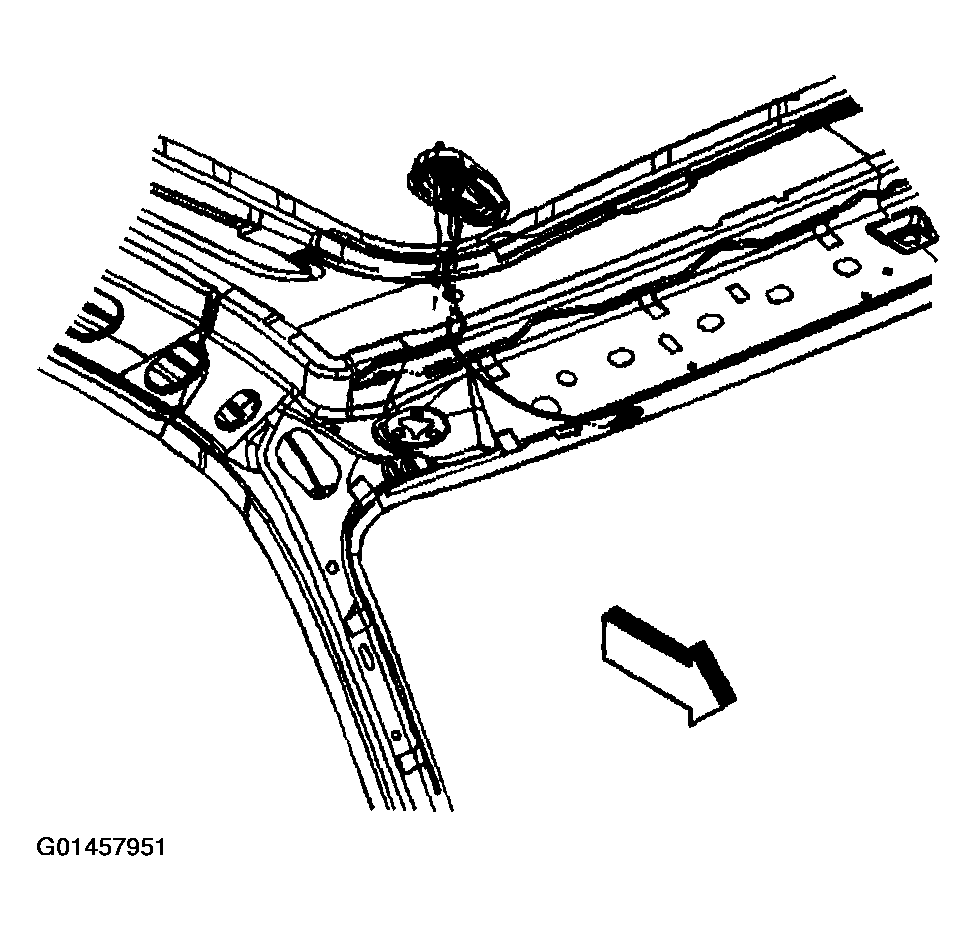

    5. Fig 1: Removing Cable Retainers From Roof And Pillar
    G01457951Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the cable (3) from the module.

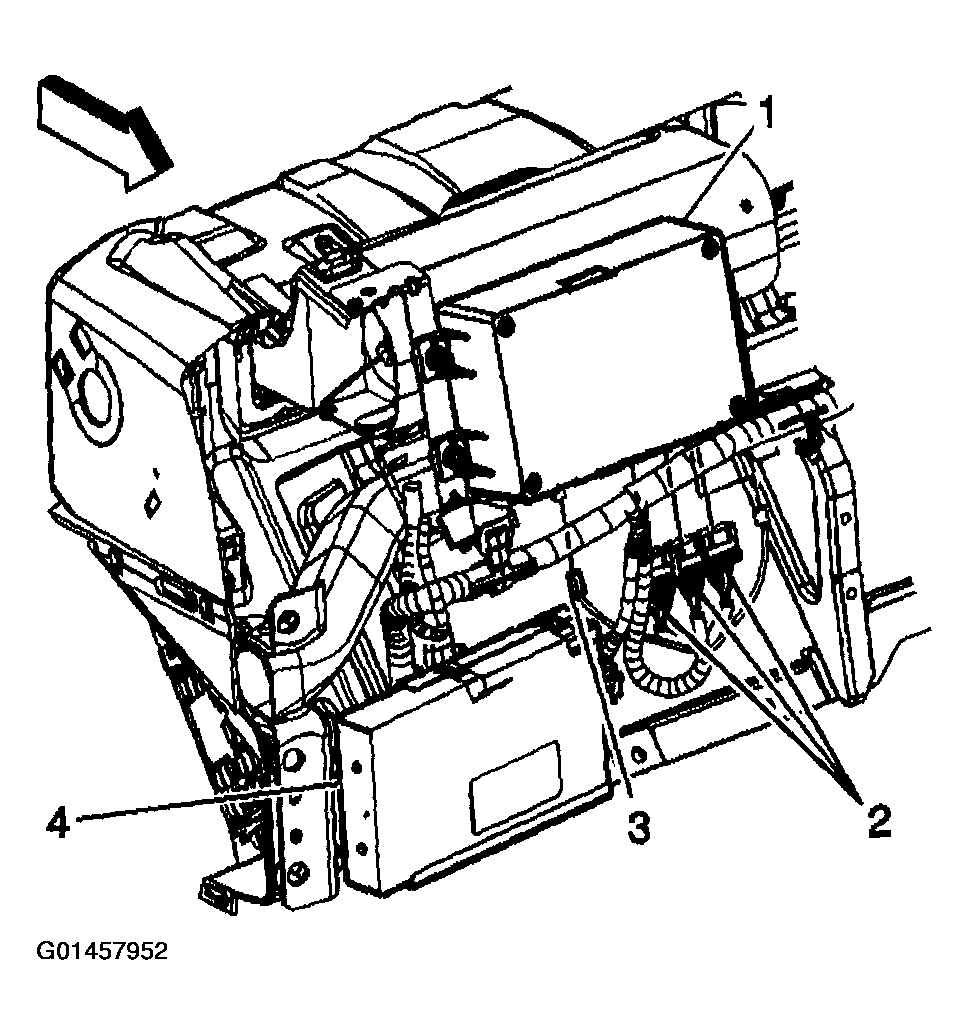

    6. Fig 2: Disconnecting Cable From Module
    G01457952Courtesy of GENERAL MOTORS CORP.
