Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cable retainers to the roof and pillar.

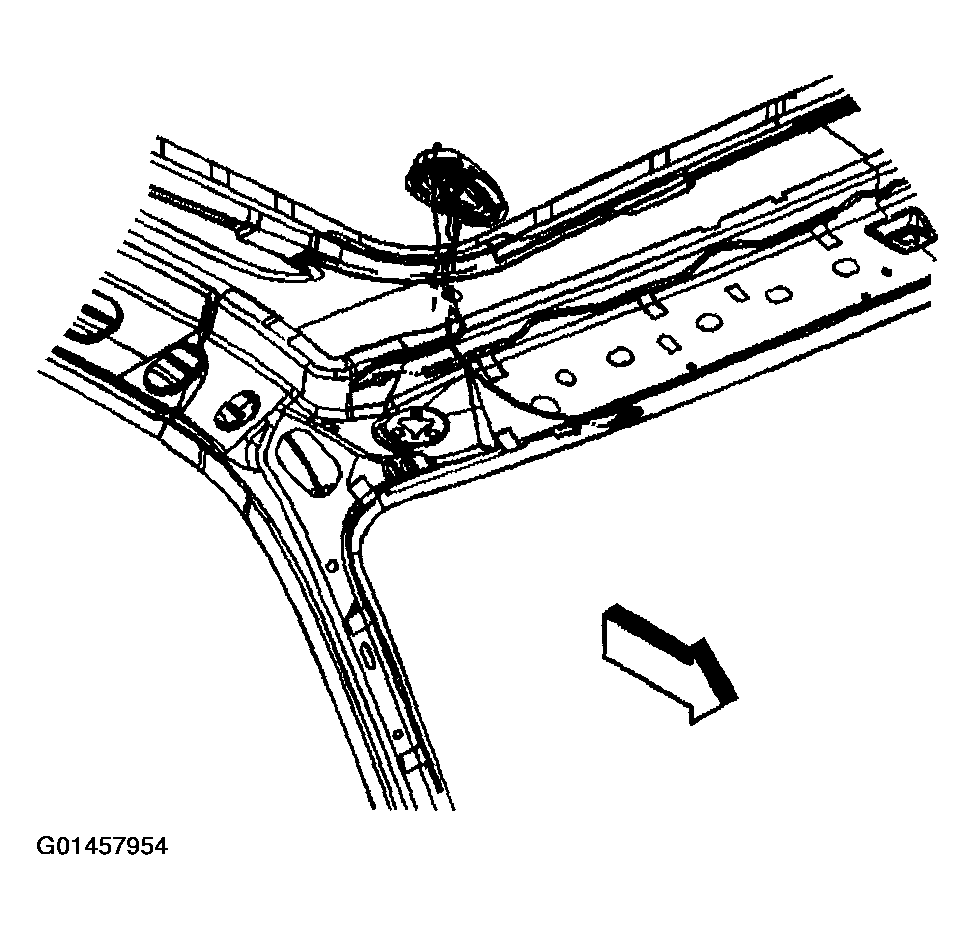

    2. Fig 1: Installing Cable Retainers To Roof And Pillar
    G01457954Courtesy of GENERAL MOTORS CORP.
  2. Connect the cables (3) to the module.

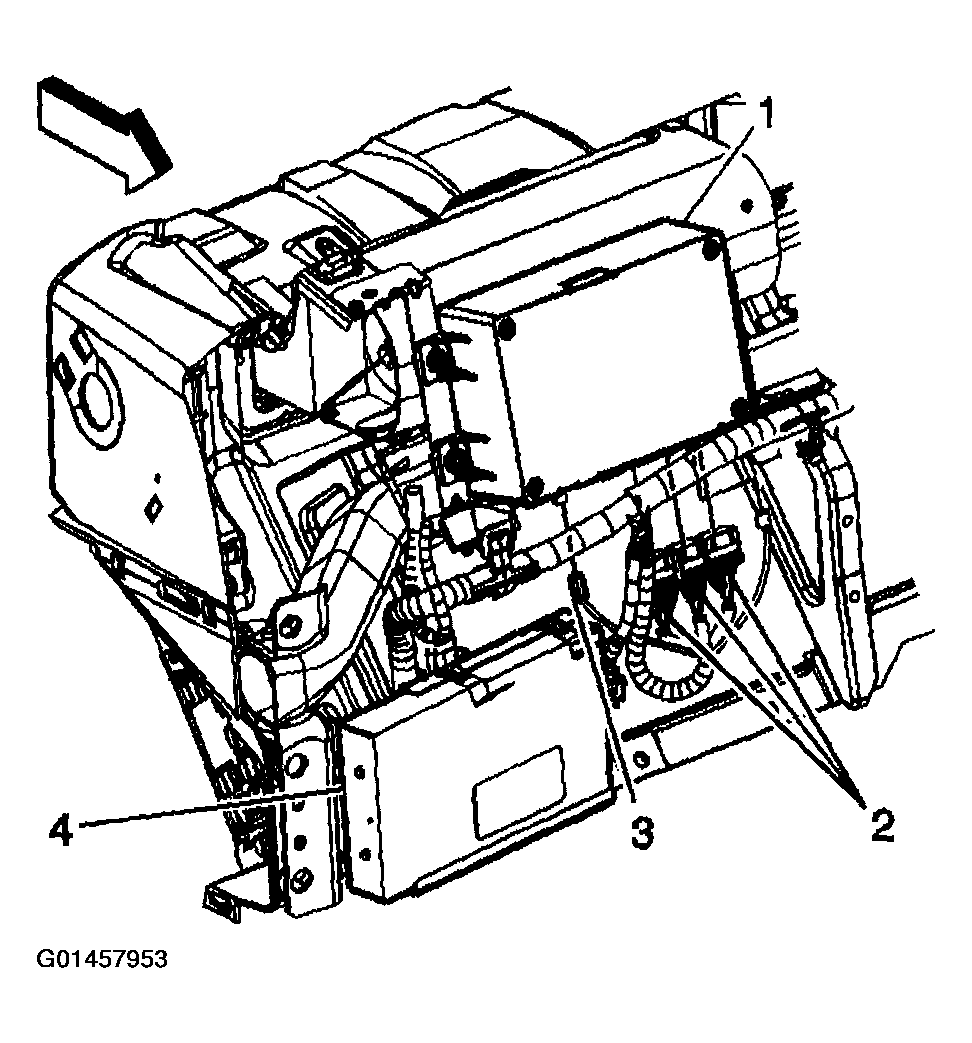

    3. Fig 2: Connecting Cables To Module
    G01457953Courtesy of GENERAL MOTORS CORP.
  3. Connect the cables to the antenna base.

    Important:  Ensure the cables are routed properly and there is no sharp bends in the cables.

  4. Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
  5. Install the I/P trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
