Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2.  This step checks the condition of the cellular and navigation antenna.
  2. 3.  This step tests the condition of the cellular antenna coax and for proper ground of the cellular antenna.

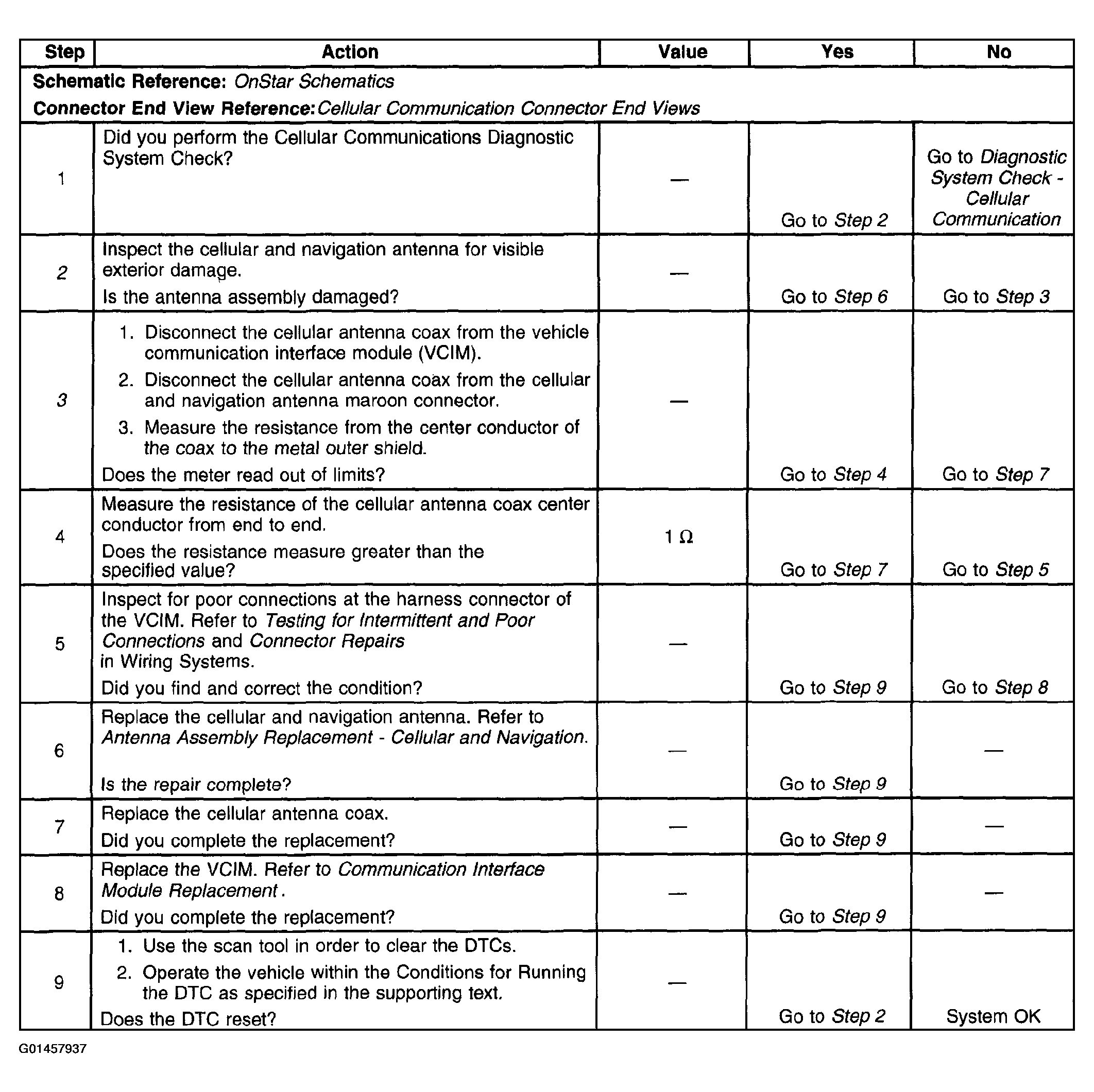

Fig 1: DTC B2470 - Diagnostic Table
G01457937Courtesy of GENERAL MOTORS CORP.
