Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR (TAHOE/YUKON/ESCALADE) or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (SUBURBAN/YUKON XL/AVALANCHE/ESCLD EXT) in Doors.
  2. Remove the screws (1) retaining the speaker to the mounting bracket.

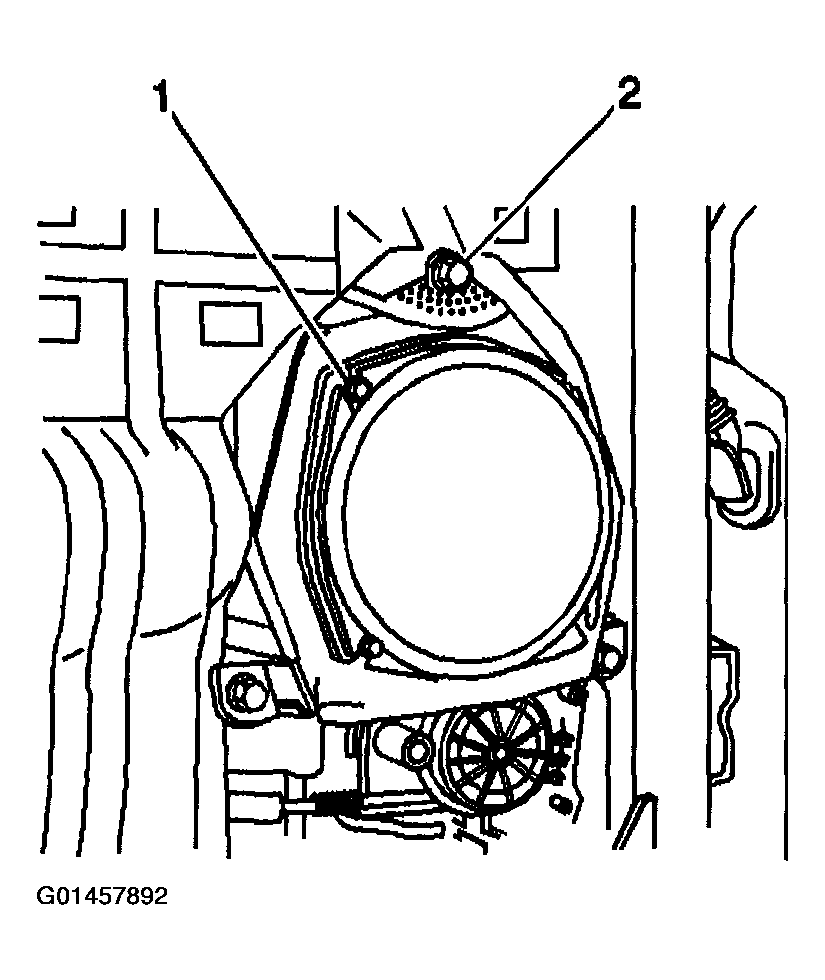

    3. Fig 1: Removing Speaker Screws To Mounting Bracket
    G01457892Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the speaker.
  4. Remove the speaker from the mounting bracket.
  5. Remove the bolts (2) retaining the speaker mounting bracket to the door, if required.
  6. Remove the speaker mounting bracket.
