Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 front seats. Refer to FRONT SEAT REMOVAL/INSTALLATION in Seats.
  2. Move the center console rearward slightly in order to disconnect the wire connector.
  3. Move the console rearward to gain access to the subwoofer speaker.
  4. Remove the 4 retaining bolts from the speaker.
  5. Disconnect the wire connector.
  6. Remove the speaker from the subwoofer assembly.

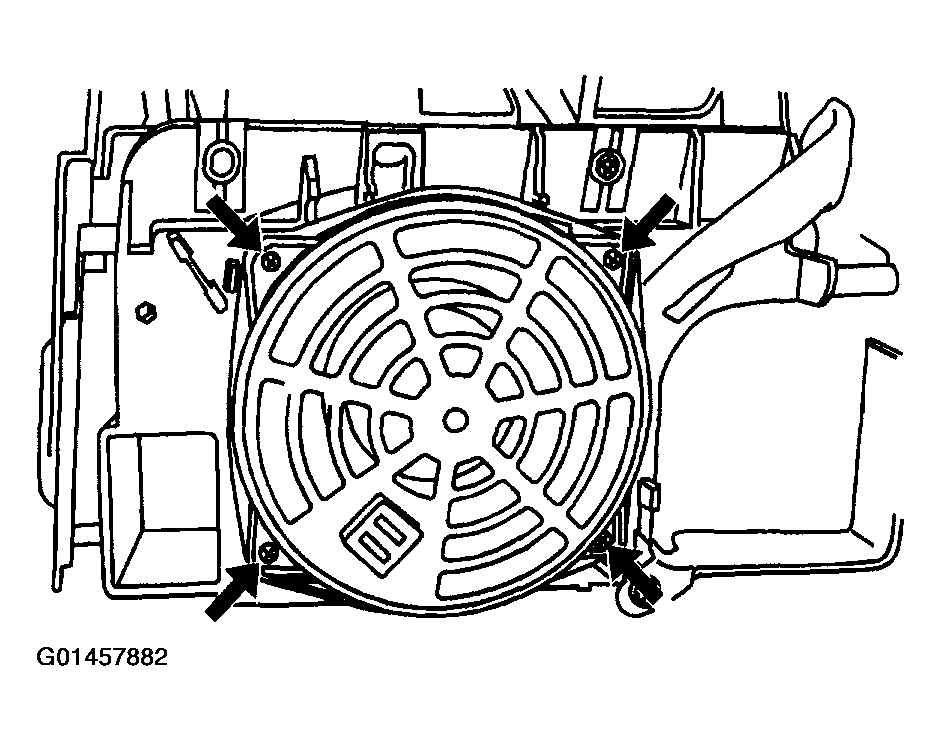

    7. Fig 1: Removing Speaker From Subwoofer Assembly
    G01457882Courtesy of GENERAL MOTORS CORP.
