Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the speaker into the subwoofer assembly.
  2. Connect the wire connector.
  3. Install the 4 retaining screws.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Ensure the screw follows the same thread in the screw boss so that a new thread is not formed.

    Tighten

    1. Tighten the screws to 6 N.m (53 lb in).

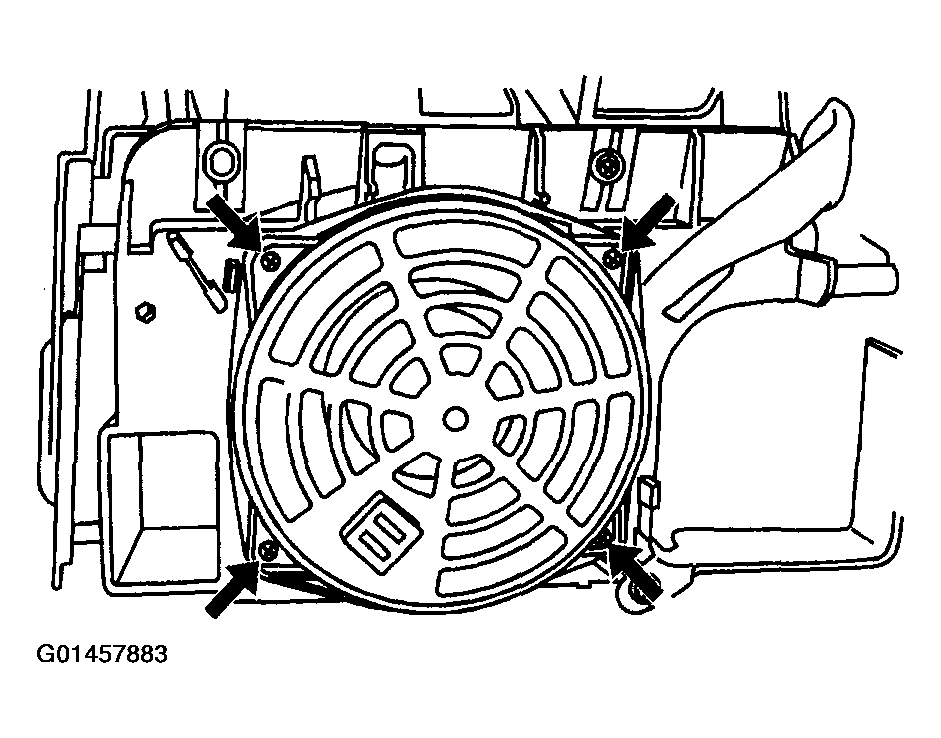

    4. Fig 1: Installing Speaker To Subwoofer Assembly
    G01457883Courtesy of GENERAL MOTORS CORP.
  4. Move the console forward in order to connect the wire connector.
  5. Install the console to the I/P. Refer to CONSOLE REPLACEMENT (WITH CONSOLE MOUNTING BRACKET) or CONSOLE REPLACEMENT (W/O CONSOLE MOUNTING BRACKET) in Instrument Panel, Gages and Console.
  6. Install the 2 front seats. Refer to FRONT SEAT REMOVAL/INSTALLATION in Seats.
