Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR in Doors.
  2. Remove the speaker by pushing down on the top retainer.

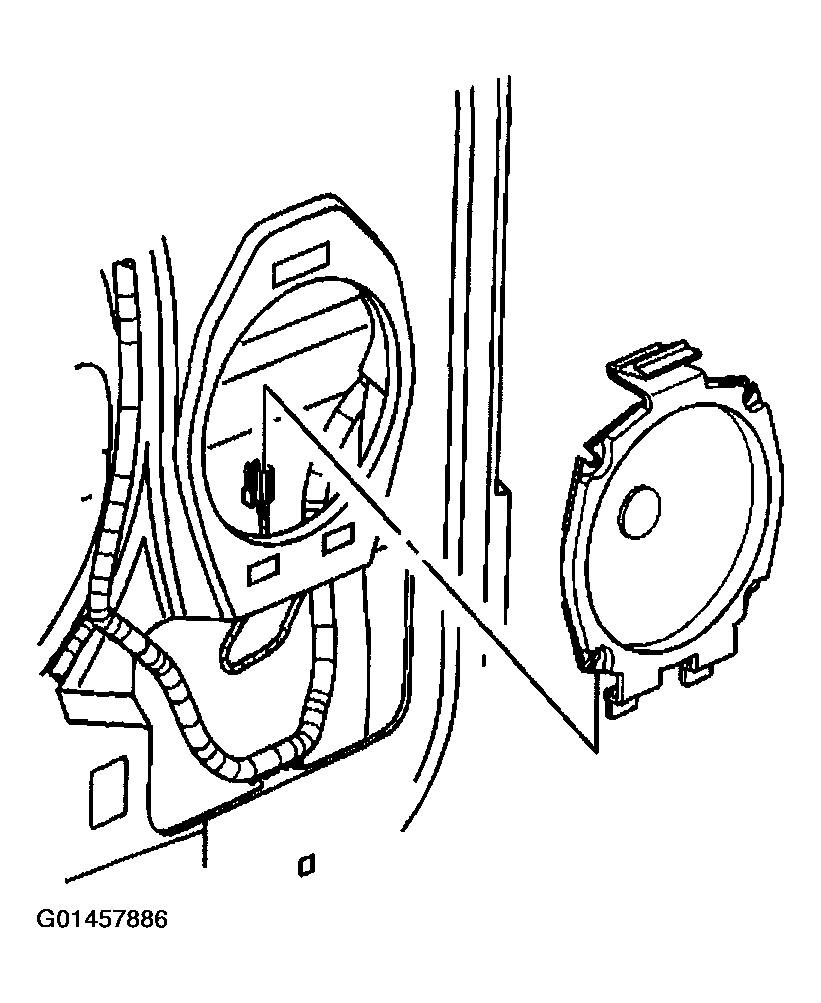

    3. Fig 1: Removing Speaker By Pushing Down On Top Retainer
    G01457886Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector.
