Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.
  2. Install the speaker.

    Push the speaker into place. Ensure that the speaker is completely seated.

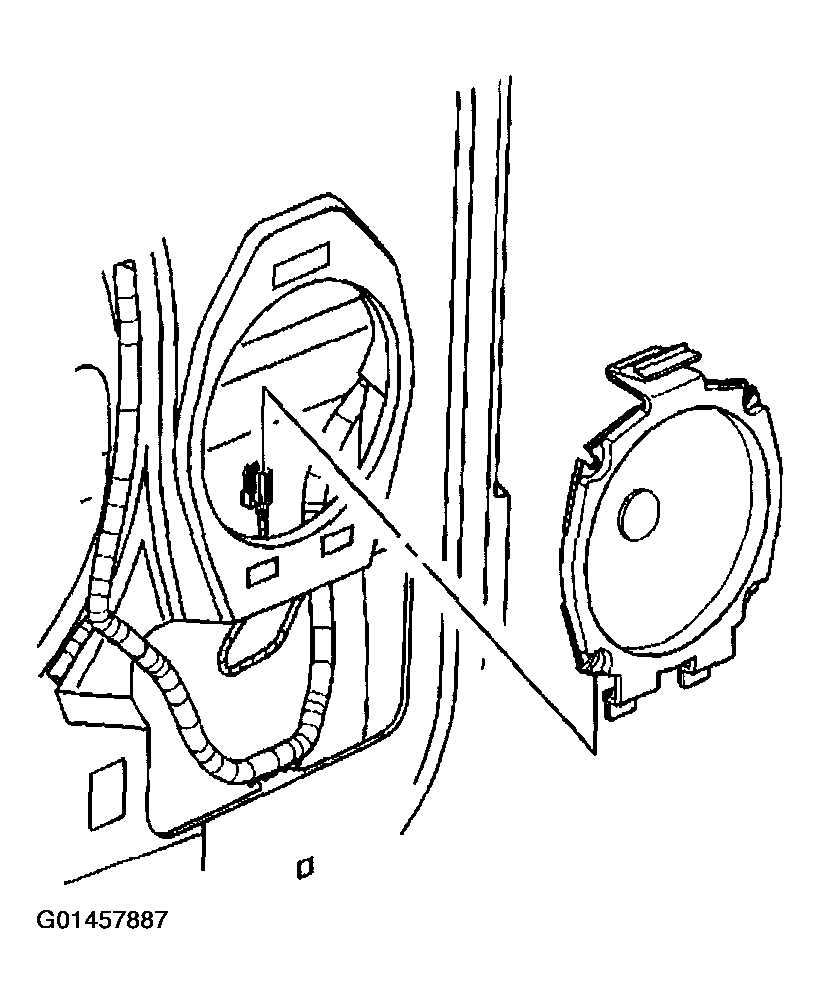

    3. Fig 1: Installing Speaker
    G01457887Courtesy of GENERAL MOTORS CORP.
  3. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR in Doors.
  4. Inspect the component operation.
