Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel (1). Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR in Doors.

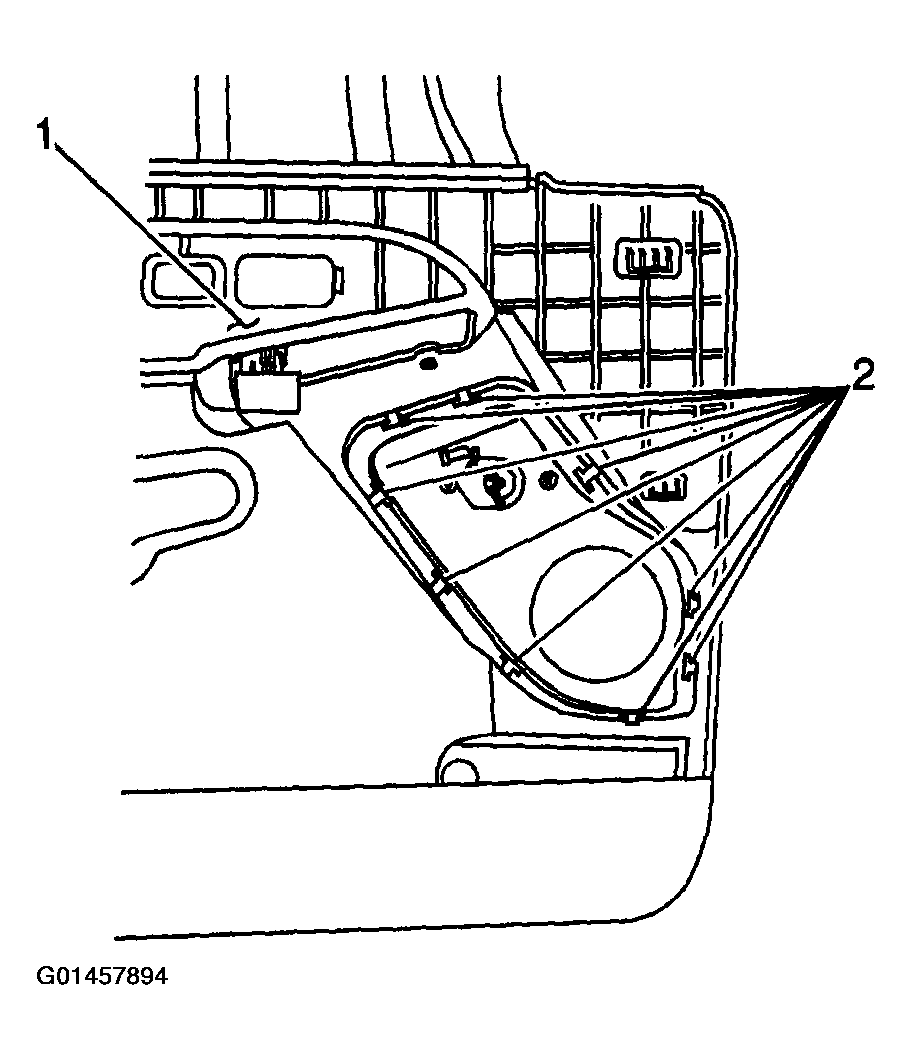

    2. Fig 1: Removing Grille From Front Of Door Trim Panel
    G01457894Courtesy of GENERAL MOTORS CORP.
  2. Straighten the retaining tabs (2) on the back of the door trim panel (1).
  3. Remove the grille from the front of the door trim panel.
