Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the retaining tabs (2) on the speaker grille to the corresponding slots in the door trim panel.

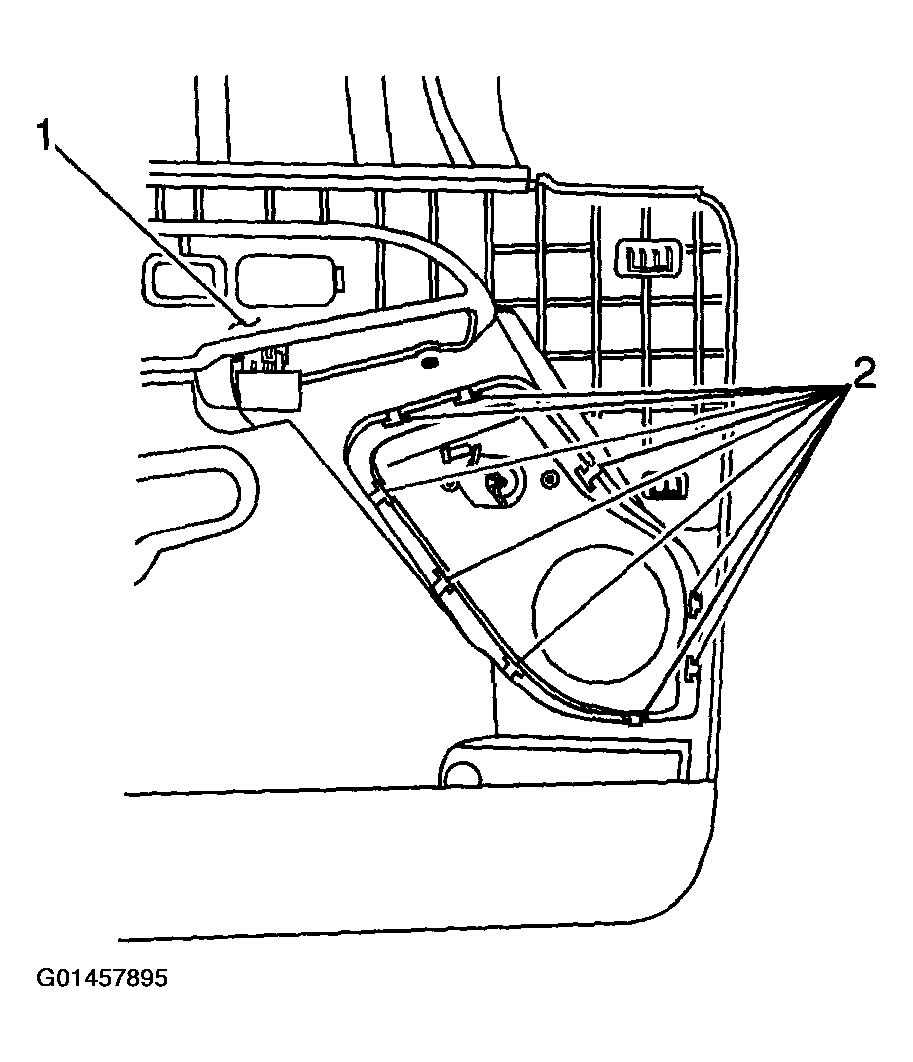

    2. Fig 1: Pushing Speaker Grille Into Door Trim Panel
    G01457895Courtesy of GENERAL MOTORS CORP.
  2. Push the speaker grille into the door trim panel (1).
  3. Bend the retaining tabs (2) over to secure the speaker grille to the door trim panel (1).
  4. Install the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR in Doors.
