Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR in Interior Trim.
  2. Disconnect the XM radio antenna cable (1).
    NOTE: Use care when removing or installing the headliner. Excessive bending will damage the headliner.

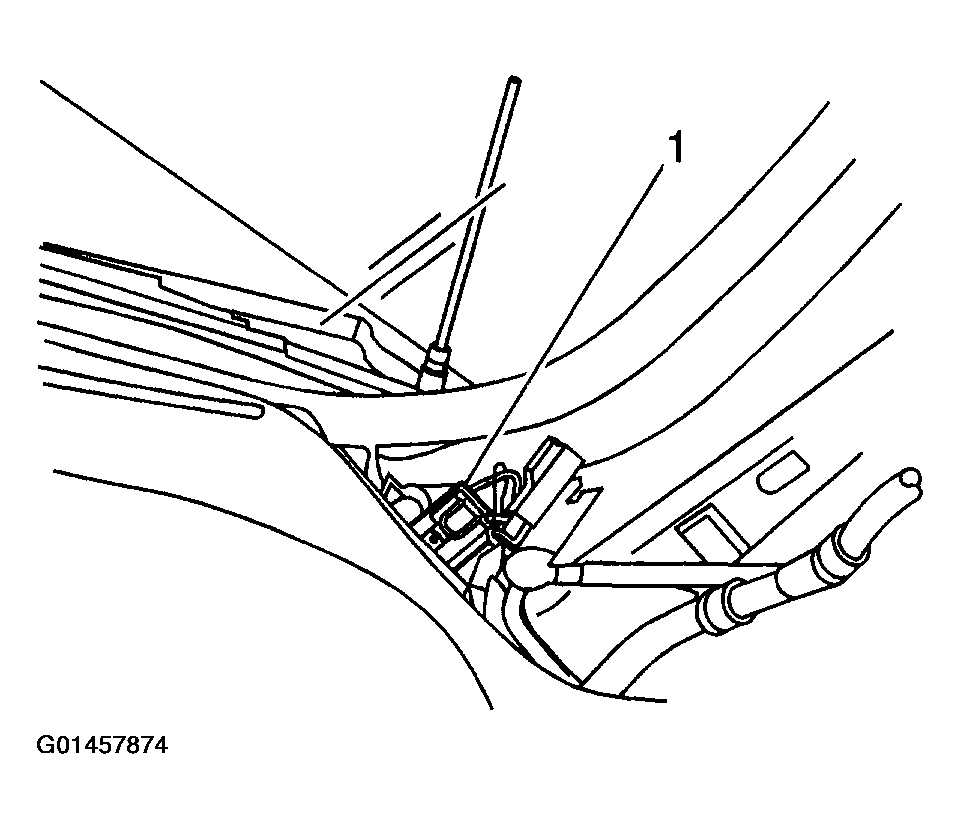

    3. Fig 1: Disconnecting XM Radio Antenna Cable
    G01457874Courtesy of GENERAL MOTORS CORP.
  3. Lower the front of the headliner. Refer to HEADLINER REMOVAL/INSTALLATION in Interior Trim.
  4. Disconnect the XM antenna cable from the antenna connection above the headliner.
  5. Remove the cable clips from the windshield pillar and remove the antenna cable from the vehicle.

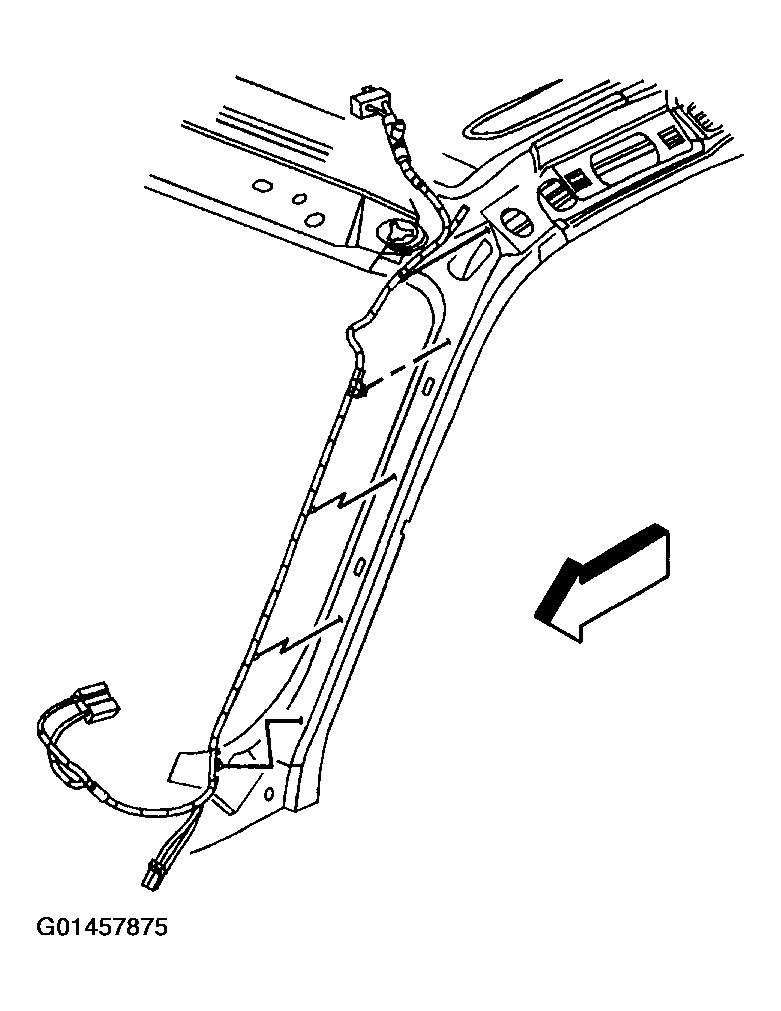

    6. Fig 2: Removing Cable Clips From Windshield Pillar
    G01457875Courtesy of GENERAL MOTORS CORP.
