Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the XM antenna cable and clips to the windshield pillar.

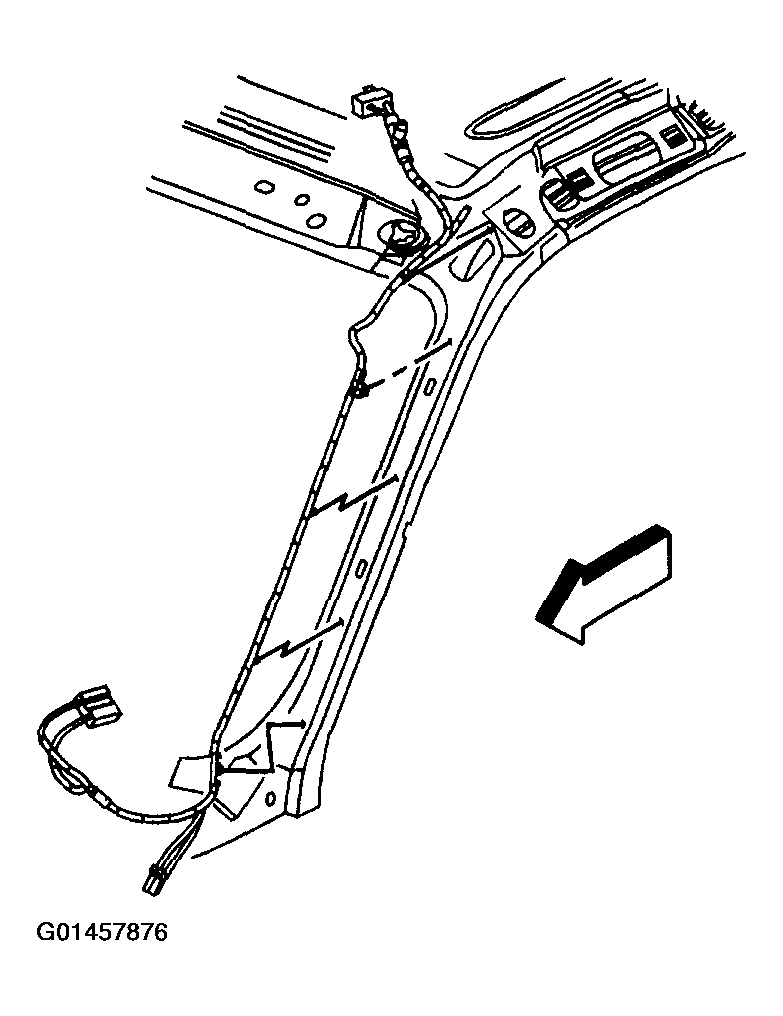

    2. Fig 1: Installing XM Antenna Cable And Clips To Windshield Pillar
    G01457876Courtesy of GENERAL MOTORS CORP.
  2. Connect the cable to the antenna connection above the headliner.
  3. Install the headliner. Refer to HEADLINER REMOVAL/INSTALLATION in Interior Trim.
  4. Connect the XM radio antenna cable (1) at the IP.

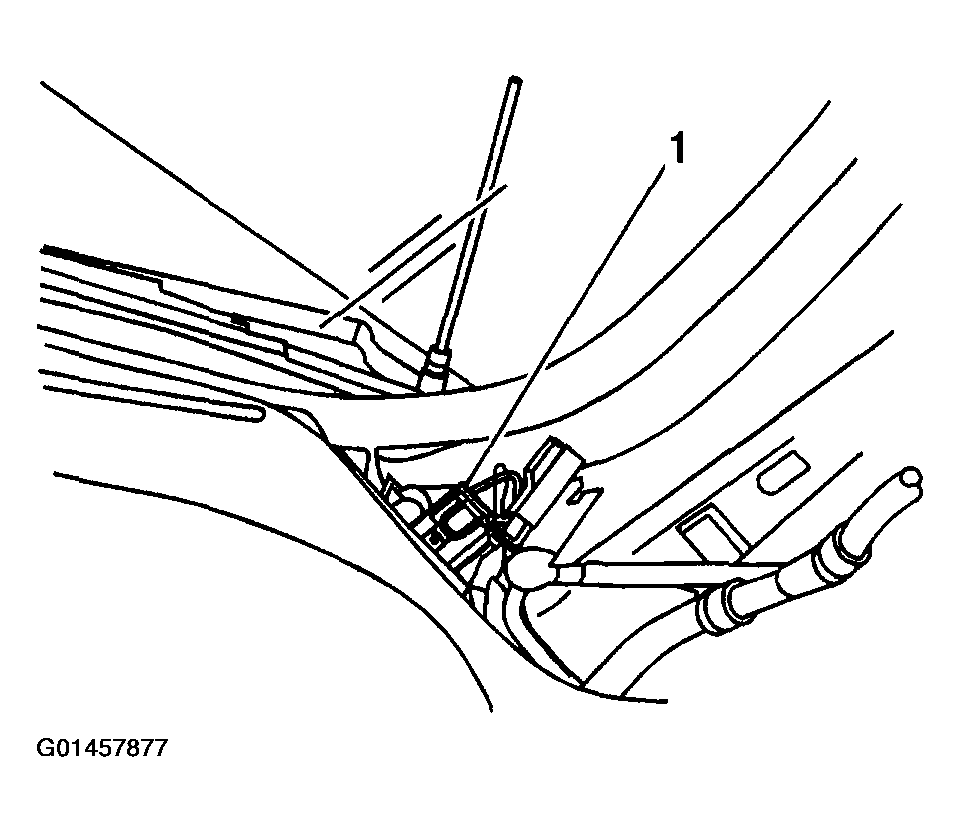

    5. Fig 2: Connecting XM Radio Antenna Cable
    G01457877Courtesy of GENERAL MOTORS CORP.
  5. Install the windshield pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR in Interior Trim.
