Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper trim panel from the instrument panel (I/P). Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  2. Disconnect the digital radio antenna cable (1).

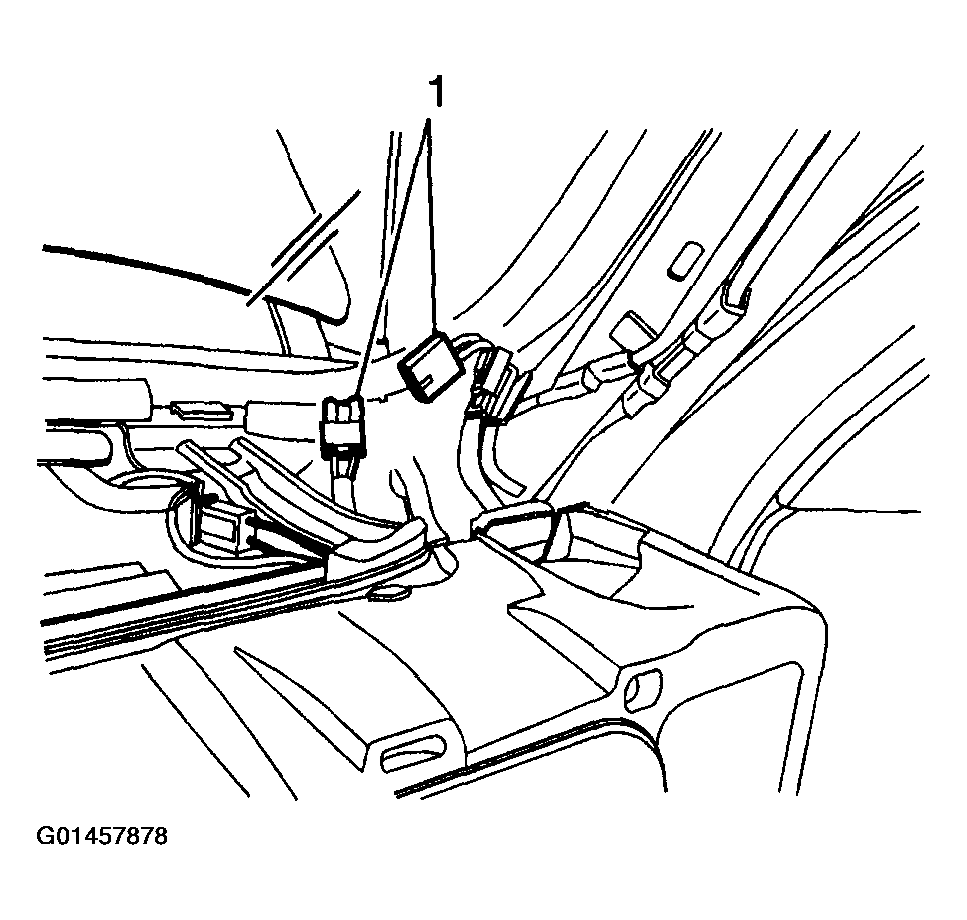

    3. Fig 1: Disconnecting Digital Radio Antenna Cable
    G01457878Courtesy of GENERAL MOTORS CORP.
  3. Fully open the I/P storage compartment in order to access the digital receiver (3).
  4. Disconnect the antenna cable (2) from the digital receiver (3).

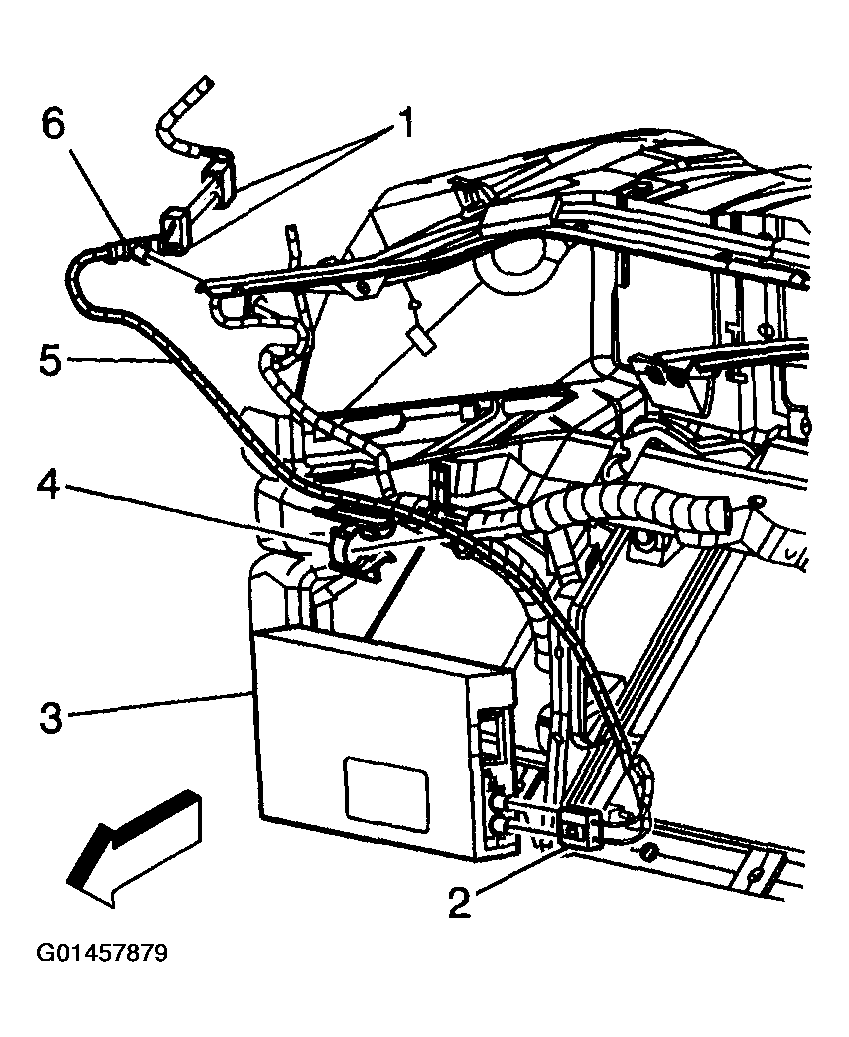

    5. Fig 2: Removing Digital Radio Antenna Extension Cable
    G01457879Courtesy of GENERAL MOTORS CORP.
  5. Disengage the antenna cable clips (4, 6) from the I/P.
  6. Remove the digital radio antenna extension cable (5).
