Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

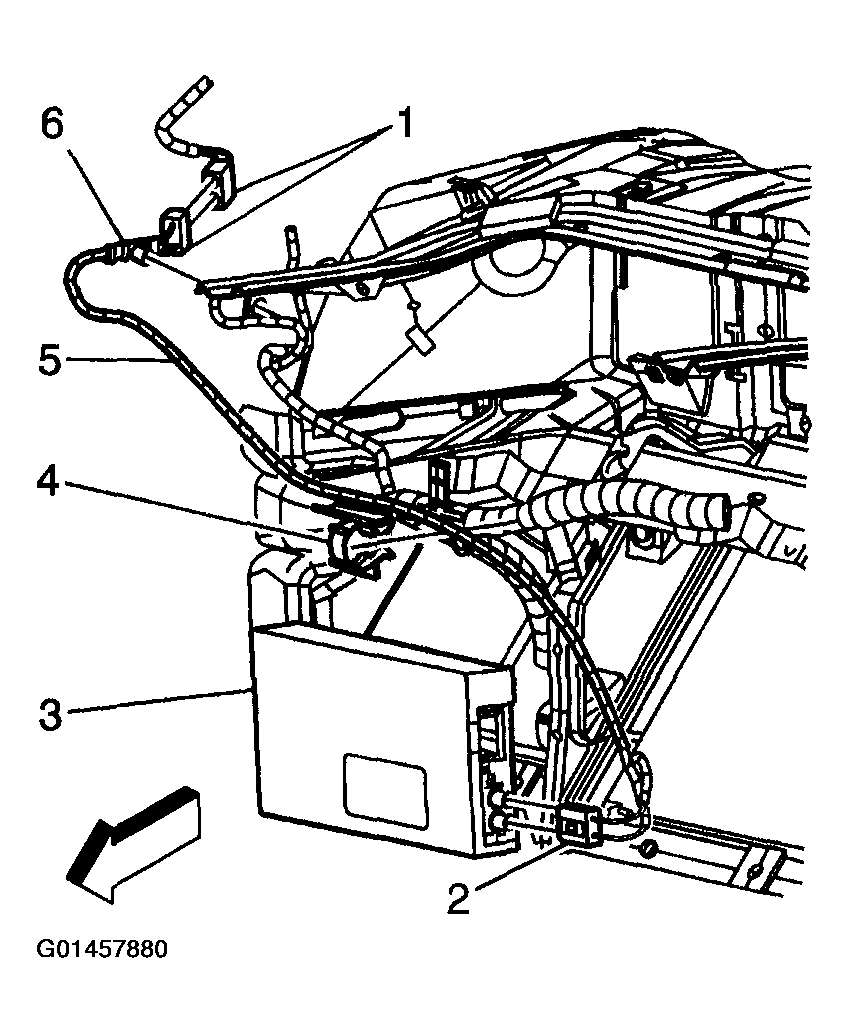

- Install the digital radio extension cable (5) to the I/P.
- Engage the antenna cable clips (4, 6) to the I/P.
- Connect the antenna cable (2) to the digital receiver (3).

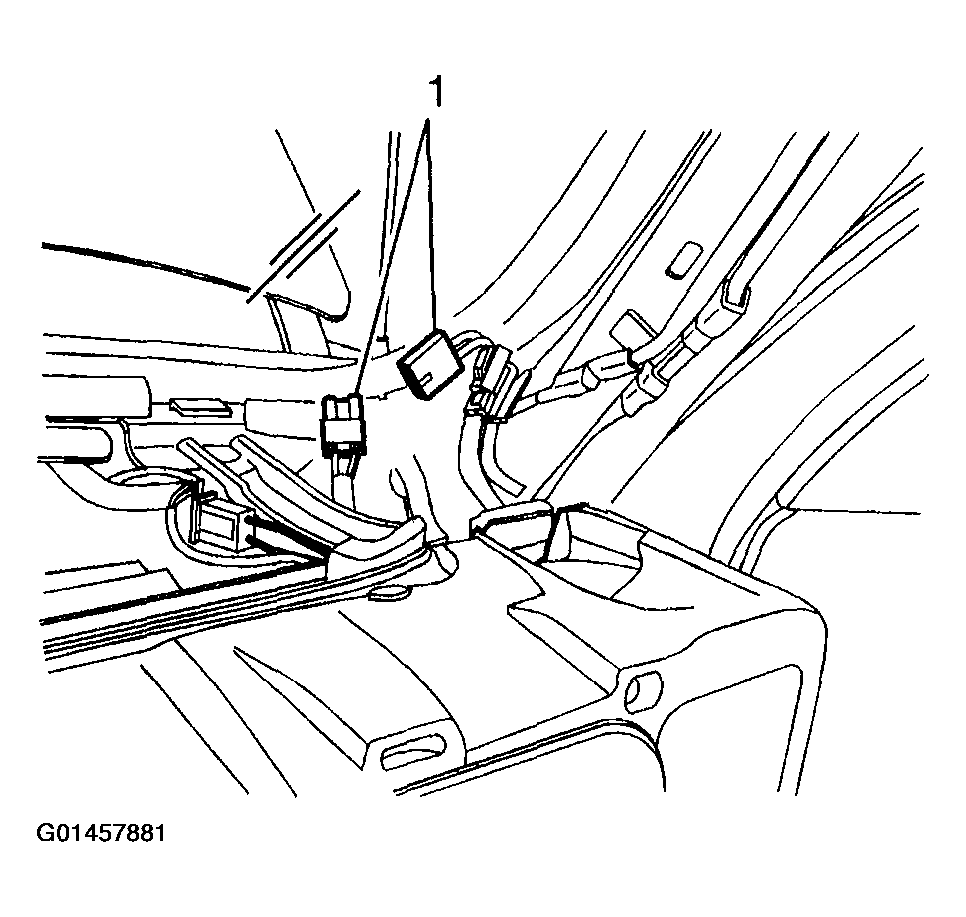

- Connect the digital radio antenna extension cable to the digital radio antenna cable (1).
- Install the I/P upper trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
- Close the I/P storage compartment.
