Mast Antennas
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Unplug antenna lead-in connector from radio receiver and plug a test antenna into radio. Make sure antenna base is grounded to the vehicle chassis and keep hands off the mast.
Check radio reception in an area away from electrical interferences. Tune to several weak and strong AM and FM stations. If the radio reception improved, the problem exists with the antenna and/or lead-in cable. If the reception is still poor, Refer to AUDIO SYSTEM TROUBLESHOOTING HINTS .
Important: Always zero out the DMM before taking a resistance measurement in order to ensure an accurate reading.

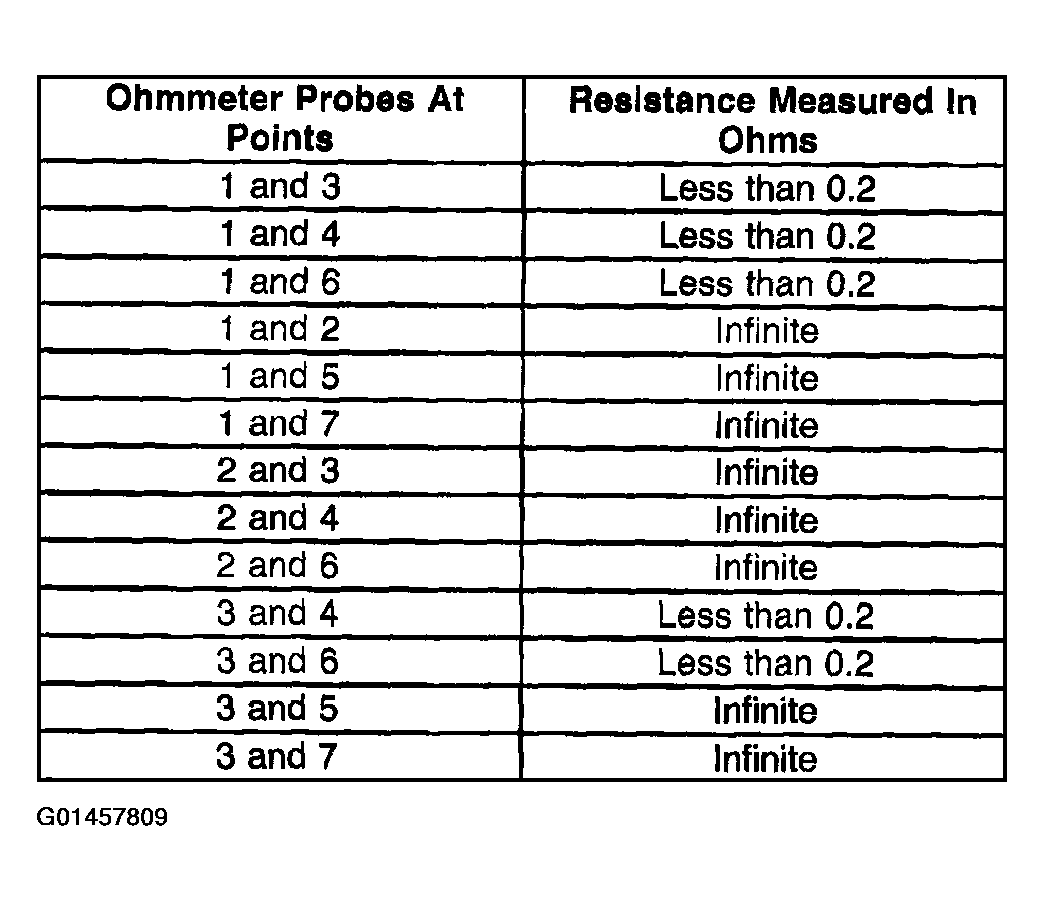

Refer to the table when testing the antenna and/or lead-in cable.

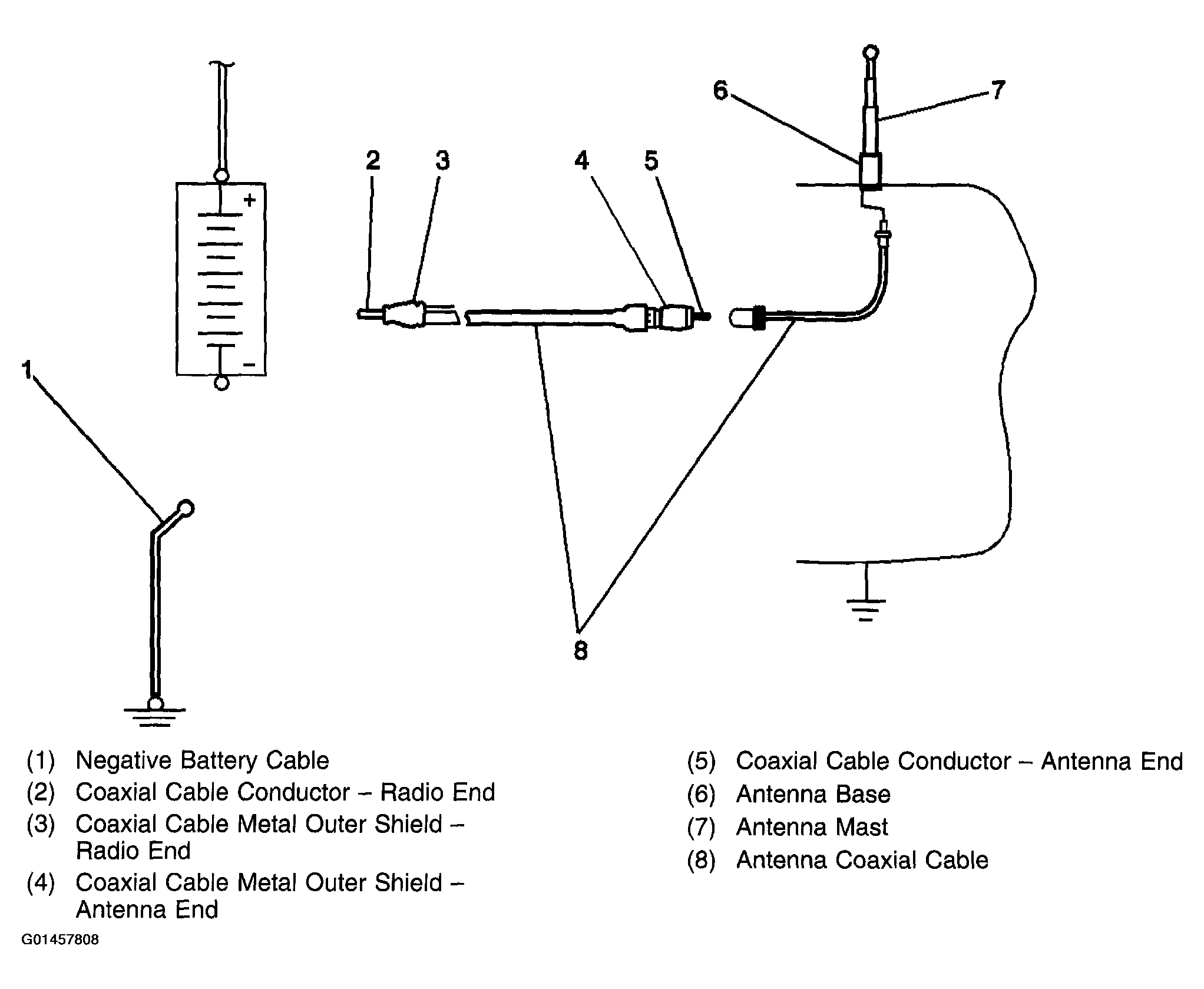

- Measure the resistance from the coax center conductor to antenna mast.
- Total resistance from end to end of center conductor:
- RG-58/RG-59 type cable - less than 0.20 Ω
- RG-62/RG-62M type cable - less than 3.5 Ω
- When checking the resistance, cautiously wiggle the lead-in tip and cable. Refer to TESTING WIRING SYSTEMS FOR INTERMITTENT & POOR CONNECTIONS in Wiring Systems.
- Measure the resistance from the cable center conductor to metal case.
- Replace the antenna and/or lead-in cable when the above readings are not obtained.
