Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 3.  Due to current limiting capabilities in the module, an antenna cable shorted to ground could still show 1200-1800 mV.

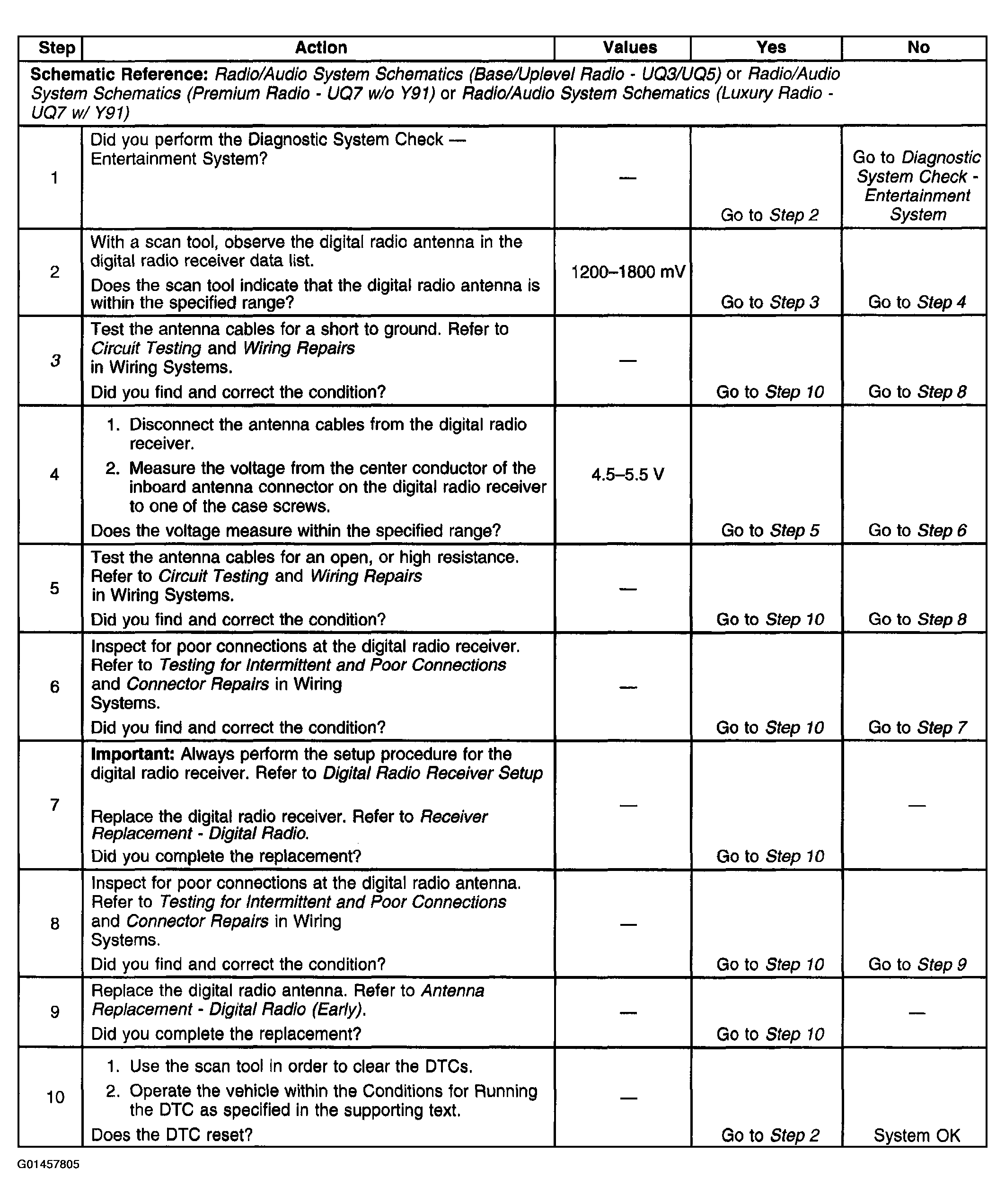

Fig 1: Diagnostic System Check - DTC B1259
G01457805Courtesy of GENERAL MOTORS CORP.
