Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the wire connector to the switch assembly.
  2. Push in the switch assembly (1, 2) until both tabs click in place.

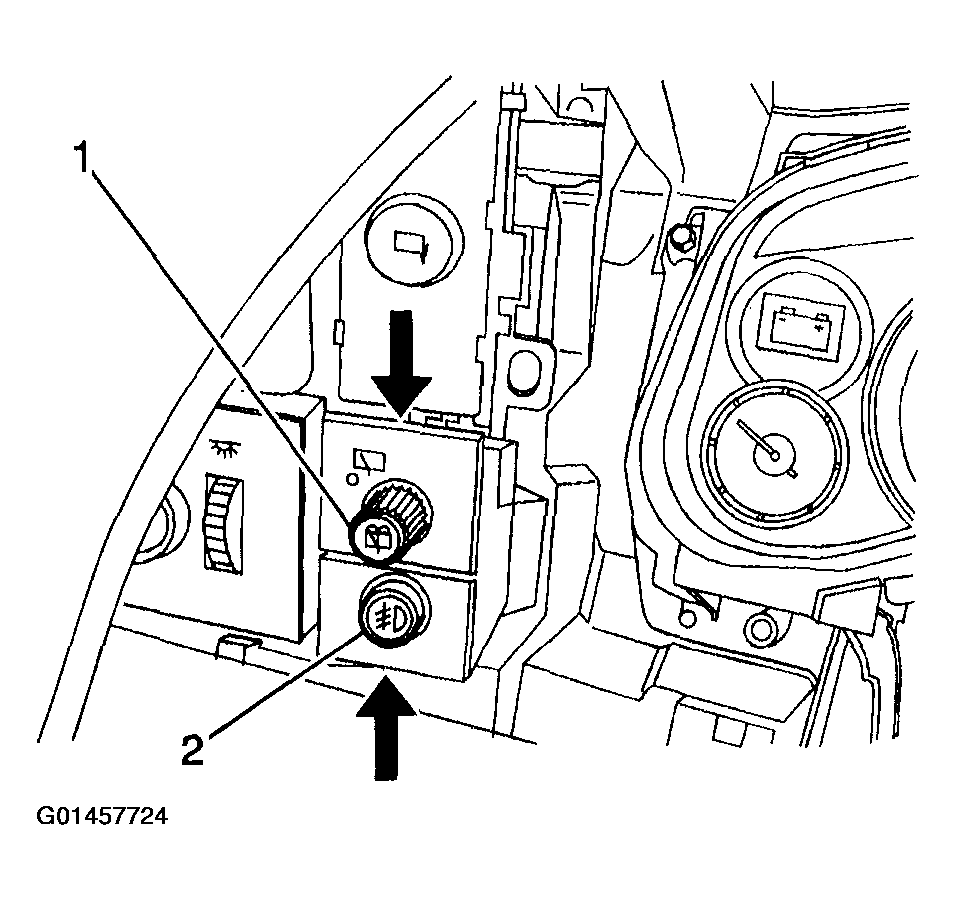

    3. Fig 1: Installing Wiper/Washer Switch - Rear
    G01457724Courtesy of GENERAL MOTORS CORP.
  3. Install the I/P cluster trim bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.
