Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to WIPER ARM REPLACEMENT  .
  2. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  3. Remove the 4 bolts and the reinforcement panel.

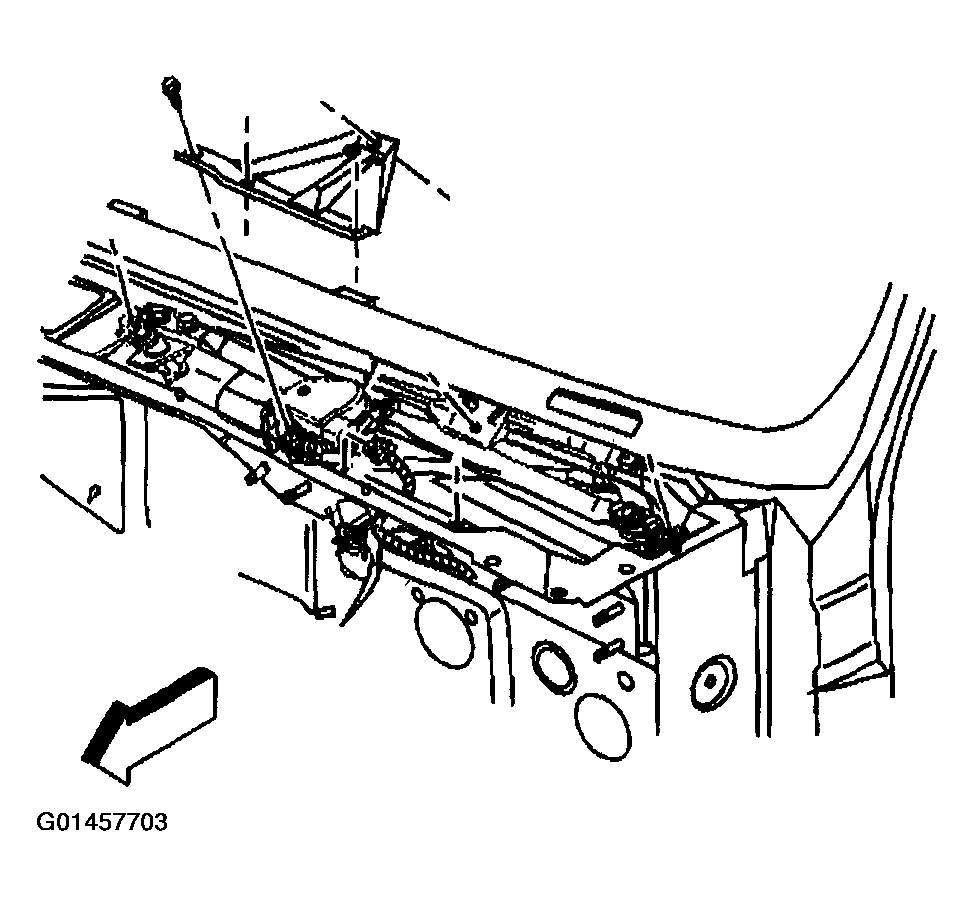

    4. Fig 1: Removing Wiper Transmission (1 Of 5)
    G01457703Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector from the wiper motor.

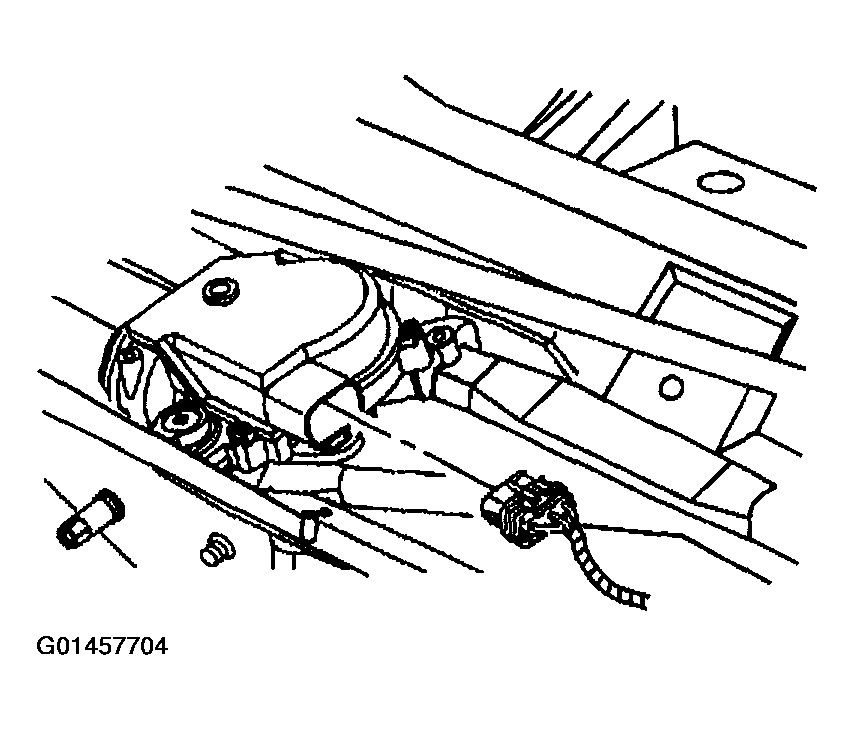

    5. Fig 2: Removing Wiper Transmission (2 Of 5)
    G01457704Courtesy of GENERAL MOTORS CORP.
  5. Remove the 2 bolts from the wiper transmission assembly.
  6. Remove the wiper transmission assembly from the vehicle.
    7. Fig 3: Removing Wiper Transmission (3 Of 5)
    G01457705Courtesy of GENERAL MOTORS CORP.
  7. Remove the drive link from the wiper motor crank arm with the J 39232.

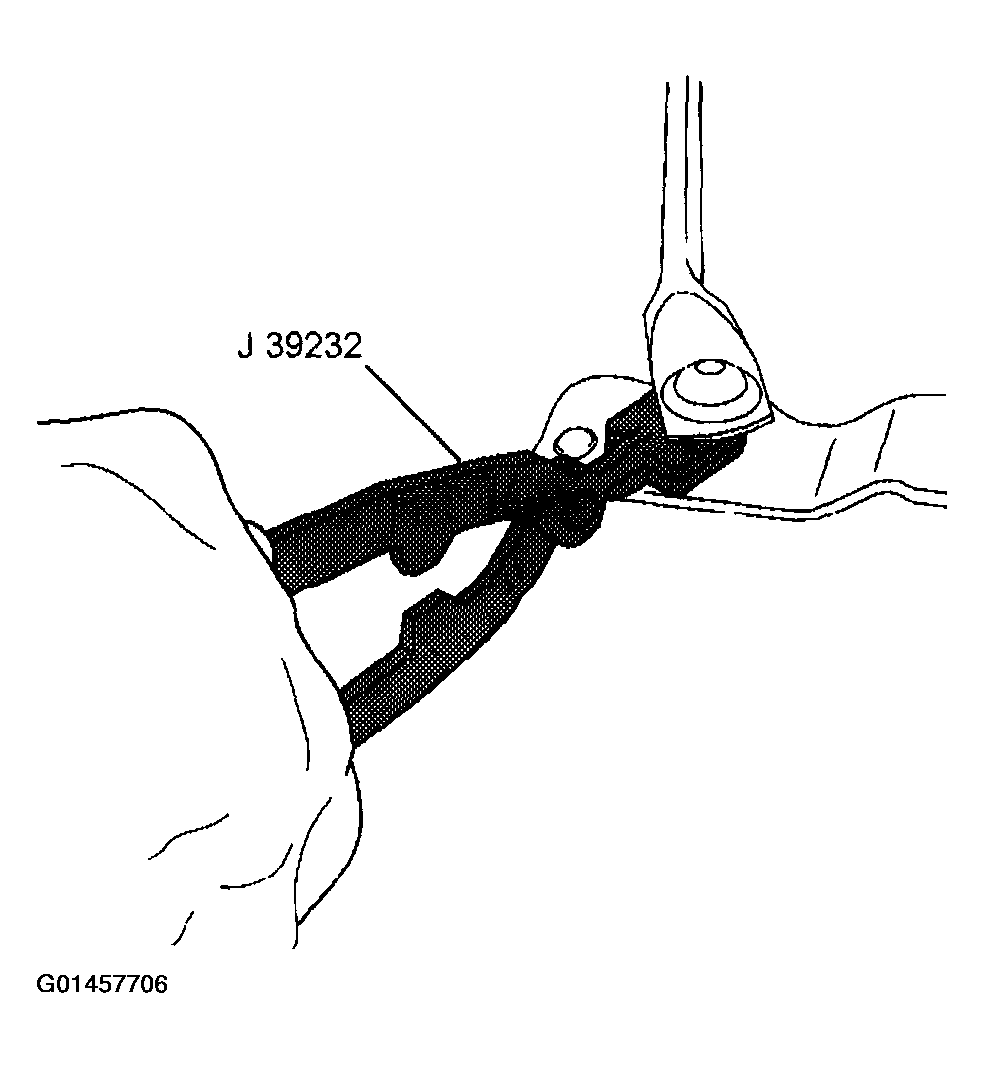

    8. Fig 4: Removing Wiper Transmission (4 Of 5)
    G01457706Courtesy of GENERAL MOTORS CORP.
  8. Remove the 2 bolts retaining the wiper motor.
  9. Remove the wiper motor from the wiper transmission assembly.
    10. Fig 5: Removing Wiper Transmission (5 Of 5)
    G01457707Courtesy of GENERAL MOTORS CORP.
