Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arm. Refer to WIPER ARM REPLACEMENT - REAR  .
  2. Remove the nut and spacer from the wiper motor shaft.
  3. Remove the interior trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE in Body Rear End.
  4. Disconnect the wiper motor electrical connector.
  5. Remove the two screws.
  6. Remove the wiper motor.

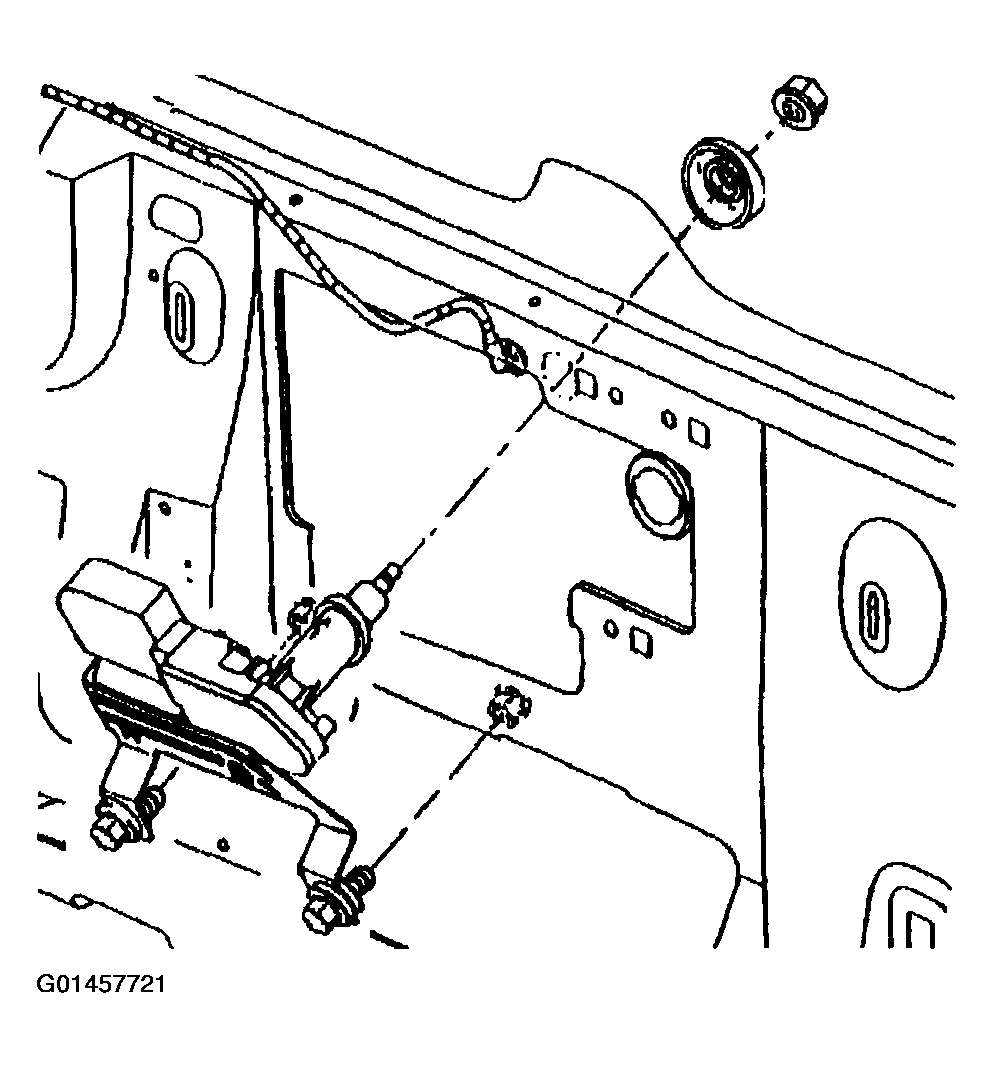

    7. Fig 1: Removing Wiper Motor - Rear
    G01457721Courtesy of GENERAL MOTORS CORP.
