Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark the position of the wiper blade on the windshield with a suitable marker or a piece of masking tape.
  2. Disconnect the washer hose.
  3. Remove the cover from the nut on the wiper arm.
  4. Remove the nut from the wiper arm.
    IMPORTANT: Use a battery terminal puller to remove the wiper arm from the drive shaft.
  5. Remove the wiper arm from the drive shaft.

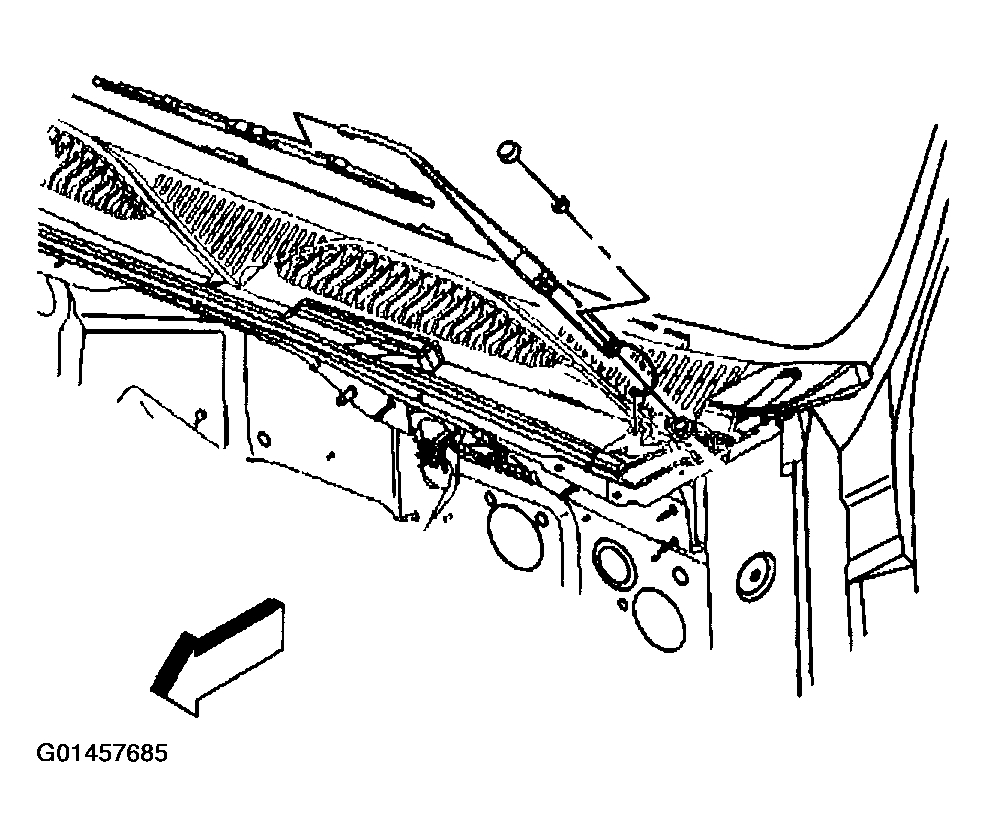

    6. Fig 1: Removing Wiper Arm
    G01457685Courtesy of GENERAL MOTORS CORP.
  6. Clean the knurls of the drive shaft with a wire brush.
