Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Note the location of the wiper on the glass before removal.

Disconnect the washer hose.
Swivel the wiper arm cover open.
Remove the nut retaining the wiper arm to the wiper motor.

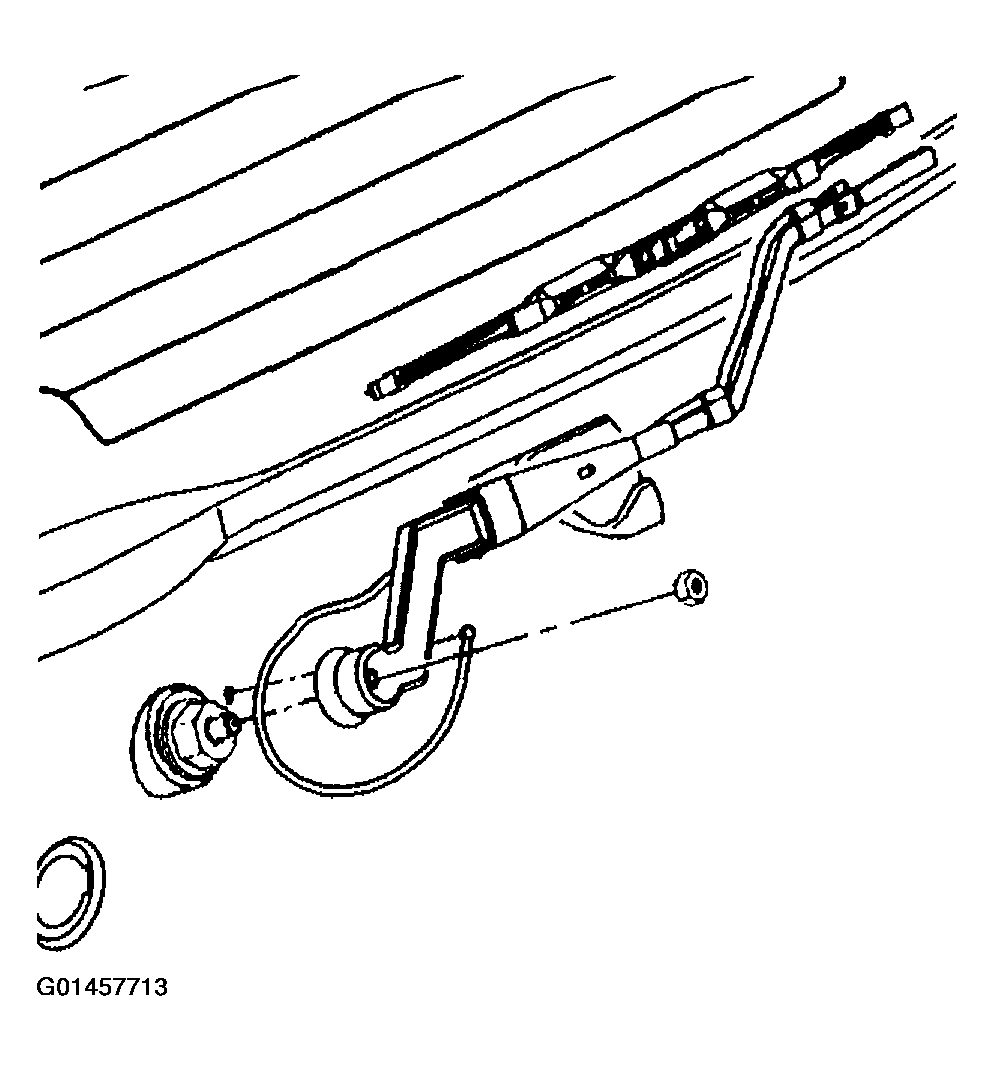

Fig 1: Removing Wiper Arm - Rear

Courtesy of GENERAL MOTORS CORP.

Remove the wiper arm from the liftgate.
