Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the wiper arm to the vehicle.
  2. Install the nut retaining the wiper arm to the wiper motor.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    Tighten the nut to 23 N.m (17 lb ft).

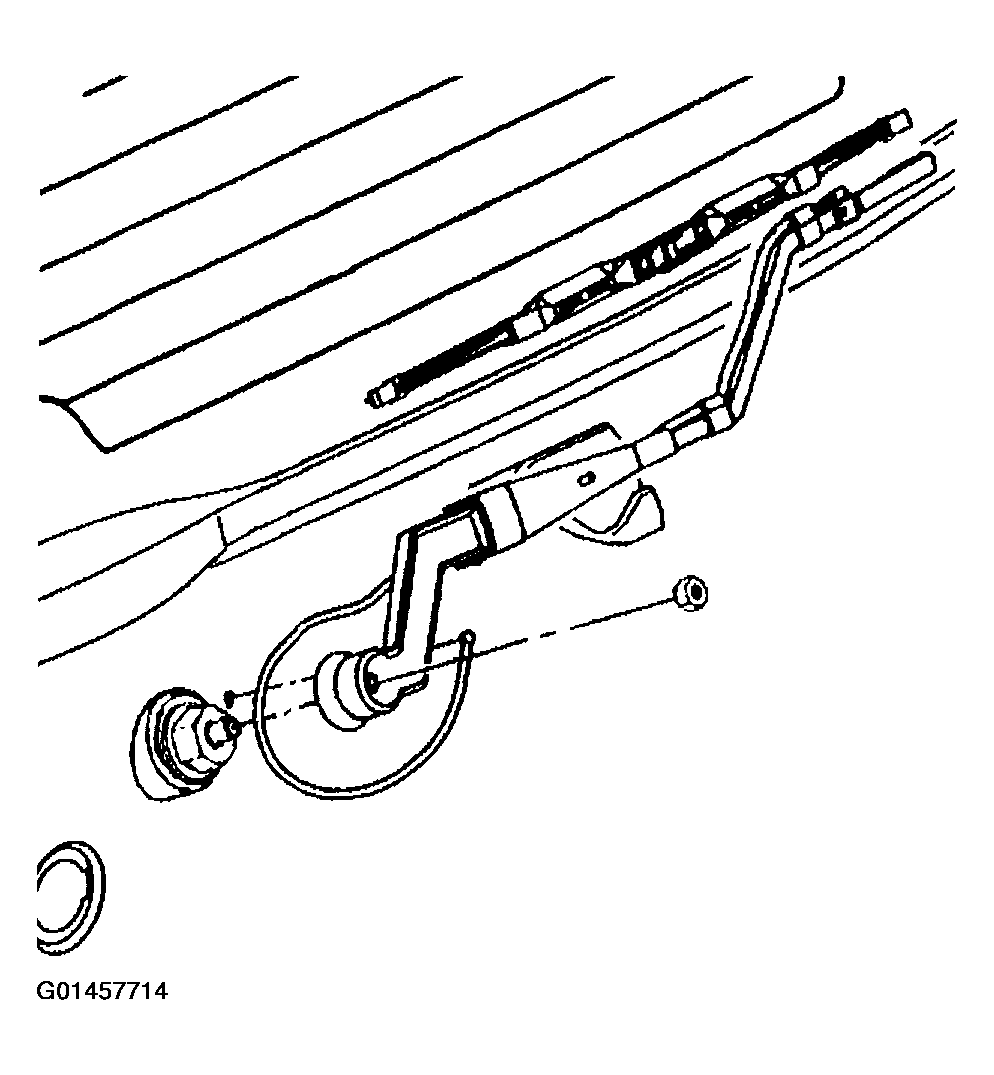

    3. Fig 1: Installing Wiper Arm - Rear
    G01457714Courtesy of GENERAL MOTORS CORP.
  3. Swivel the wiper arm cover closed.
  4. Connect the washer hose to the wiper arm.
  5. Check the rear wiper for proper operation.
