Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery and battery tray from the vehicle. Refer to BATTERY TRAY REPLACEMENT in Engine Electrical.
  2. Remove the inner wheel housing from the vehicle. Refer to WHEELHOUSE PANEL REPLACEMENT in Body Front End.
  3. Disconnect the electrical connector from the washer pump.
  4. Disconnect the electrical connector from the washer solvent level sensor.
  5. Disconnect the washer hose from the washer pump.
  6. Remove the upper bolt from the washer solvent container.

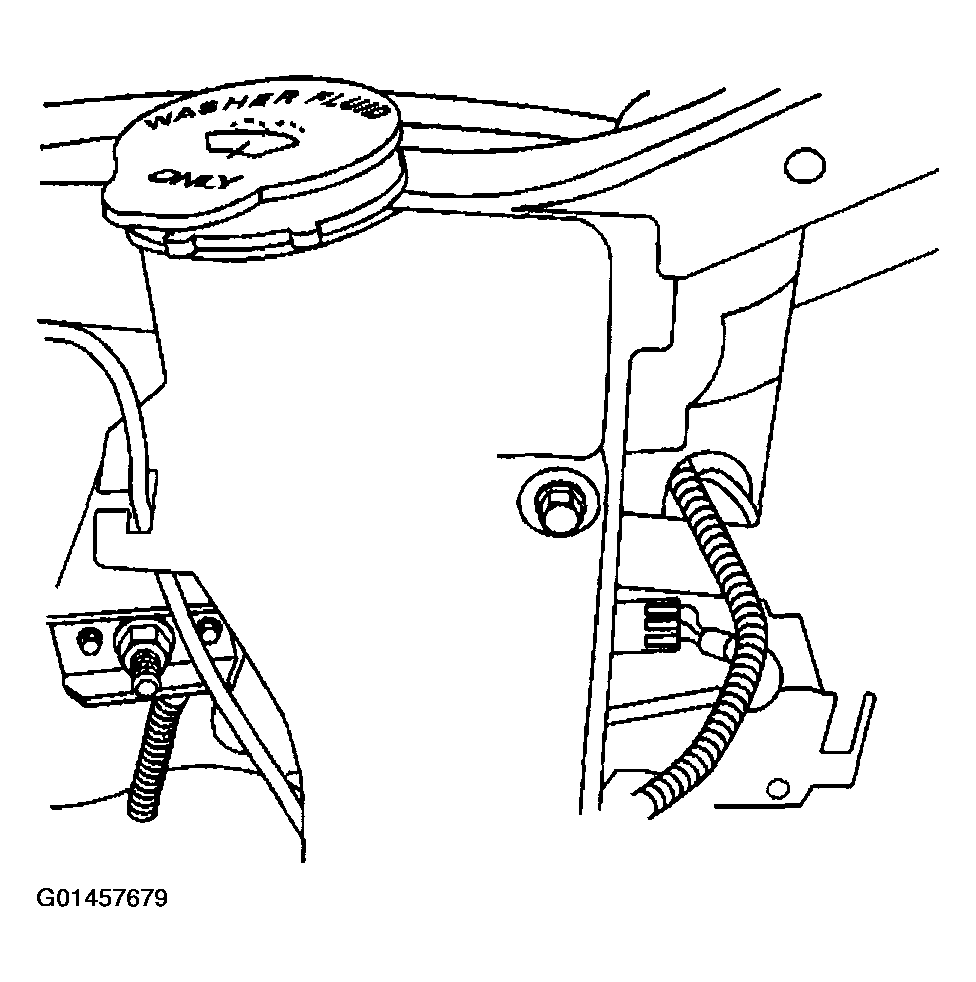

    7. Fig 1: Removing Washer Pump/Reservoir (1 Of 2)
    G01457679Courtesy of GENERAL MOTORS CORP.
  7. Remove the lower bolts from the washer solvent container.

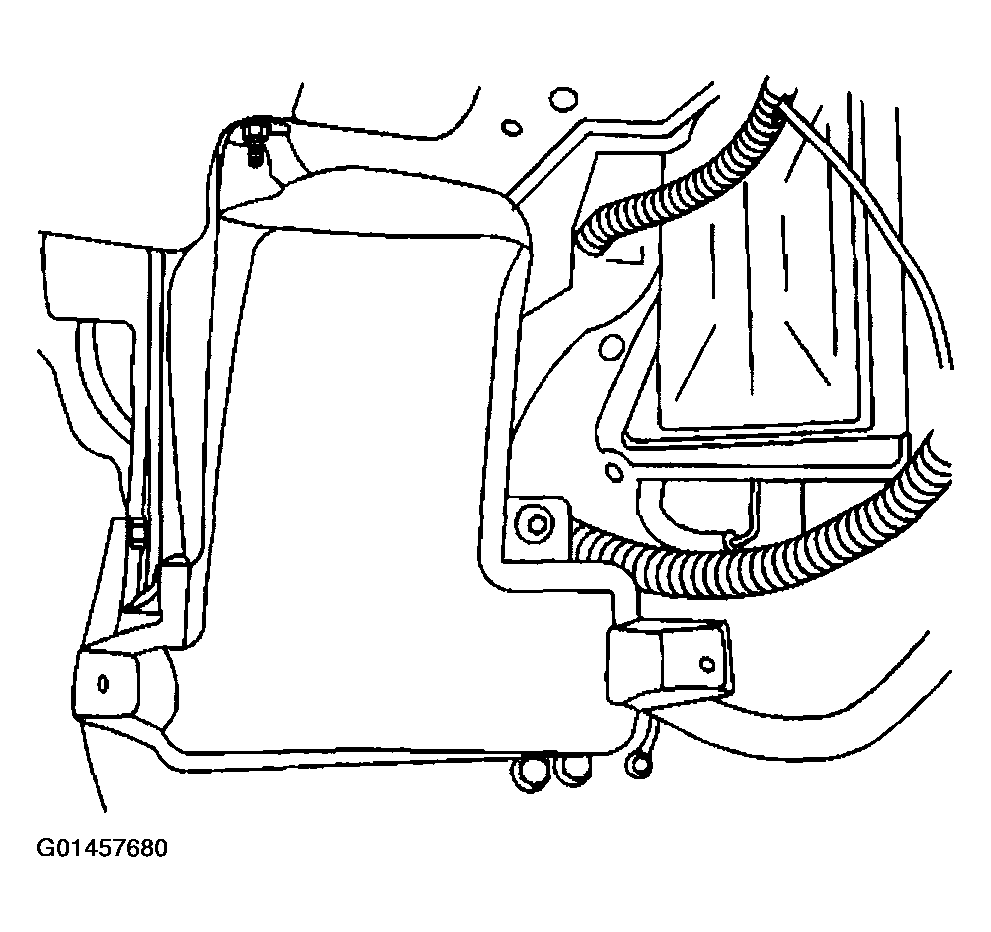

    8. Fig 2: Removing Washer Pump/Reservoir (2 Of 2)
    G01457680Courtesy of GENERAL MOTORS CORP.
  8. Remove the washer solvent container from the vehicle.
